Wiring Diagrams

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

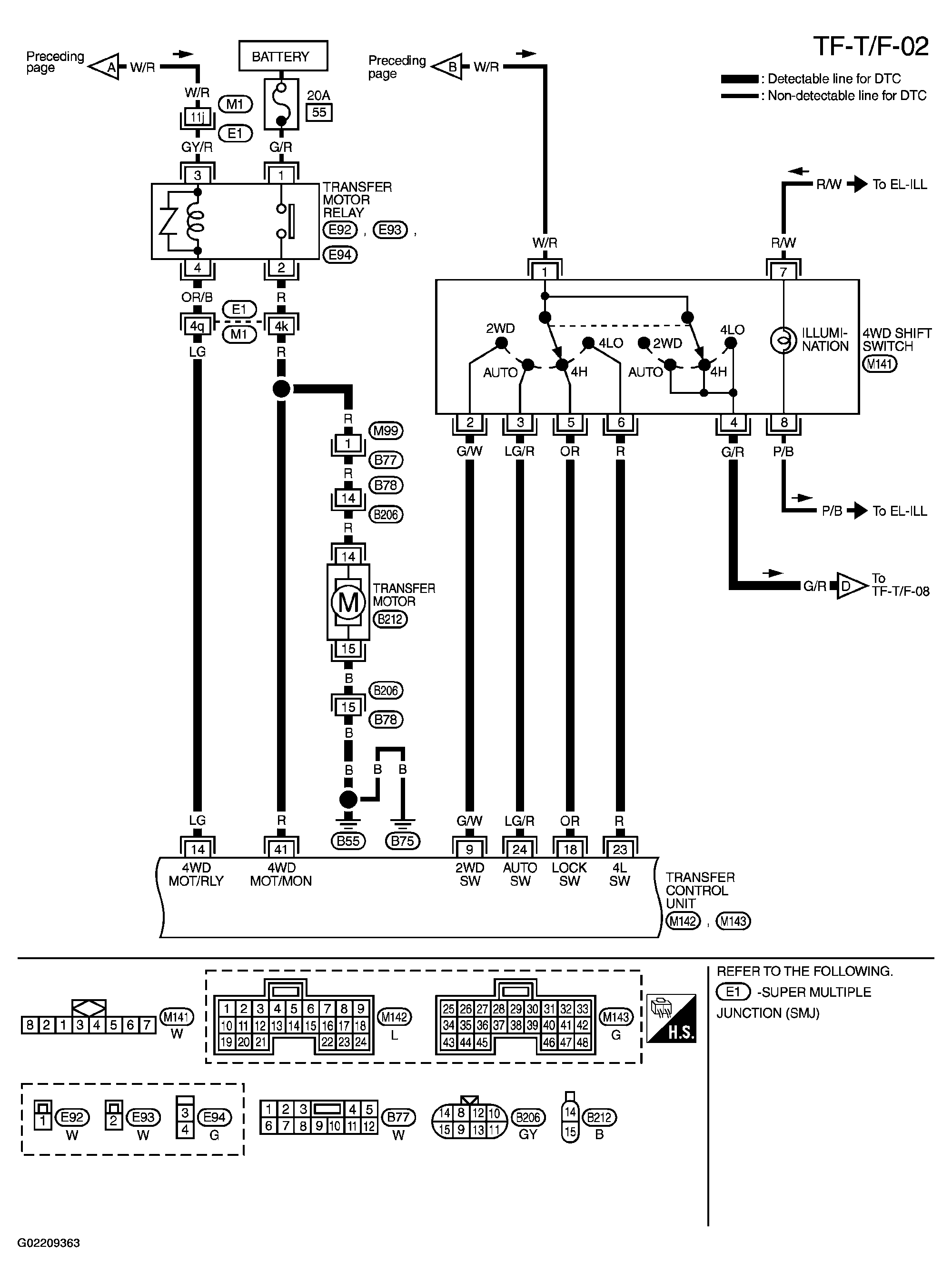

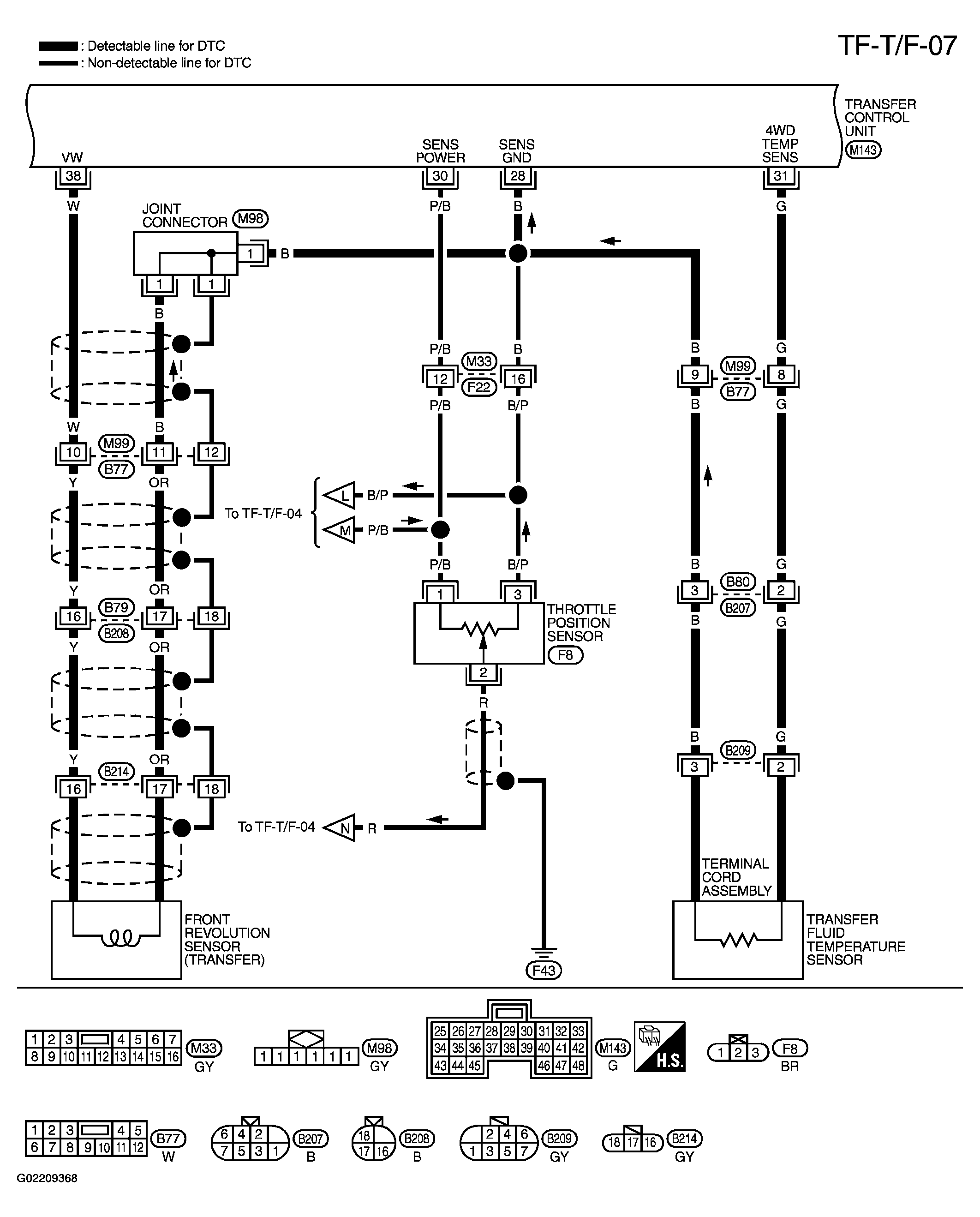

Fig 1: Displaying Wiring Diagram (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

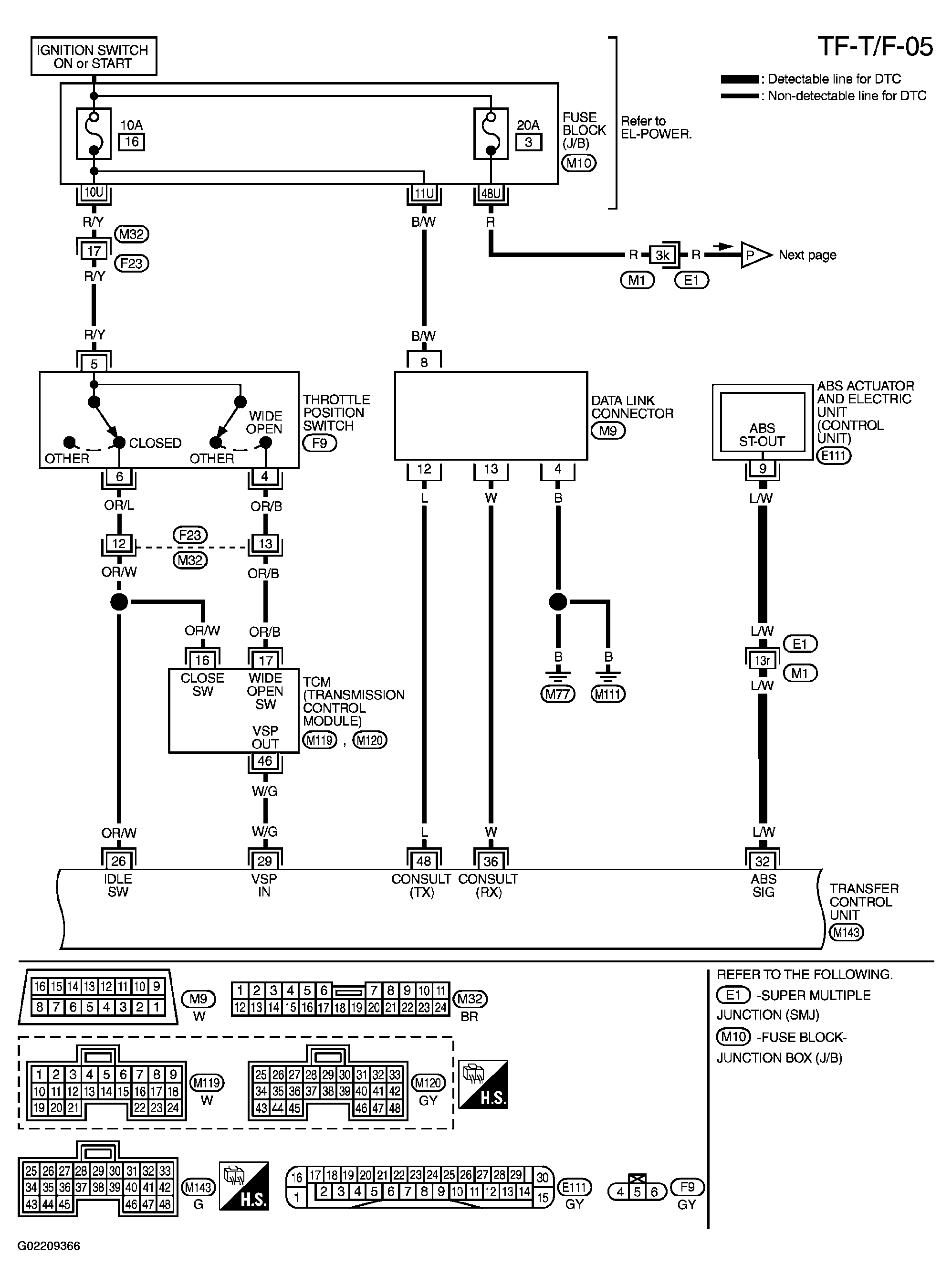

Fig 2: Displaying Wiring Diagram (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

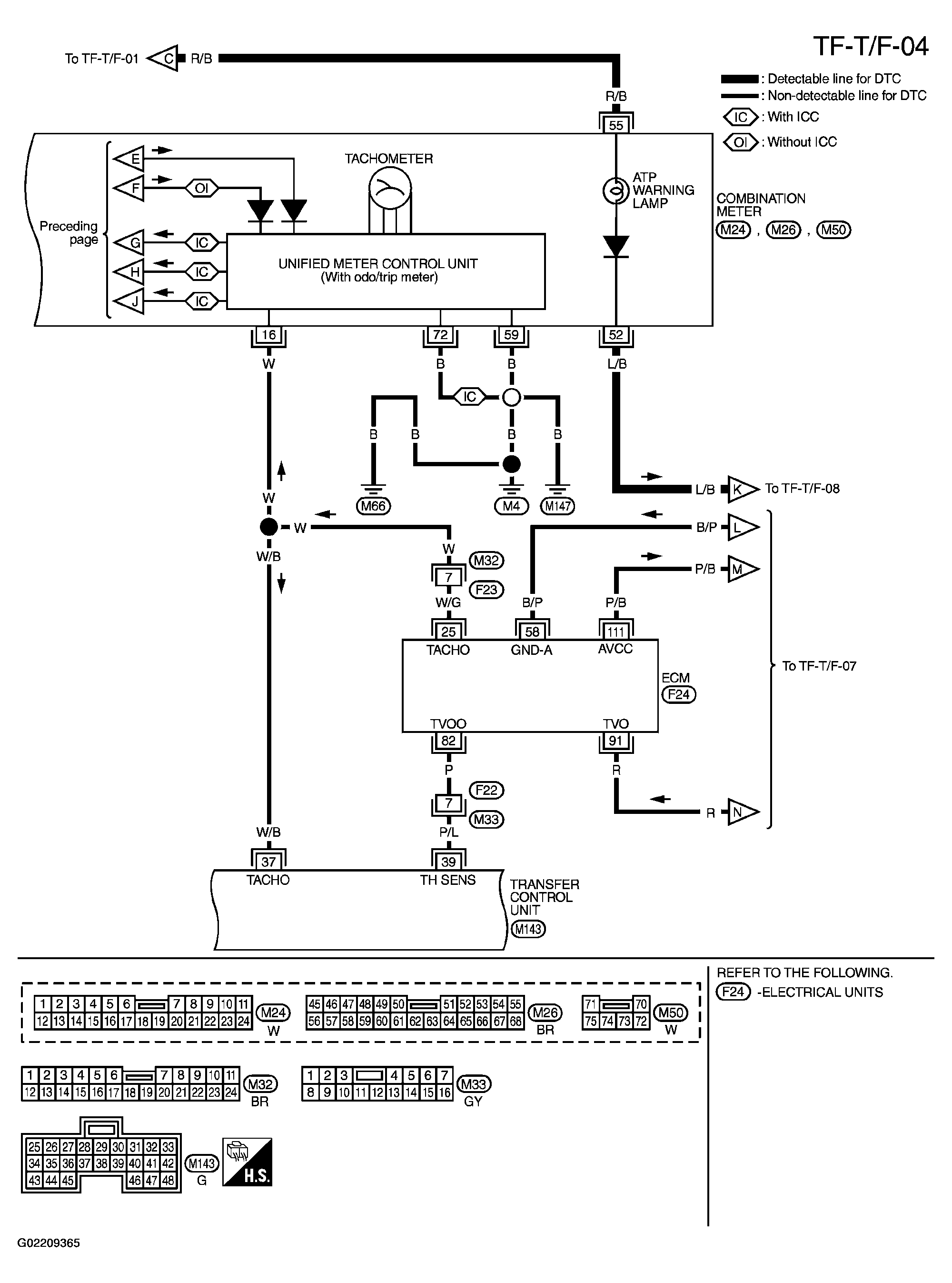

Fig 3: Displaying Wiring Diagram (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

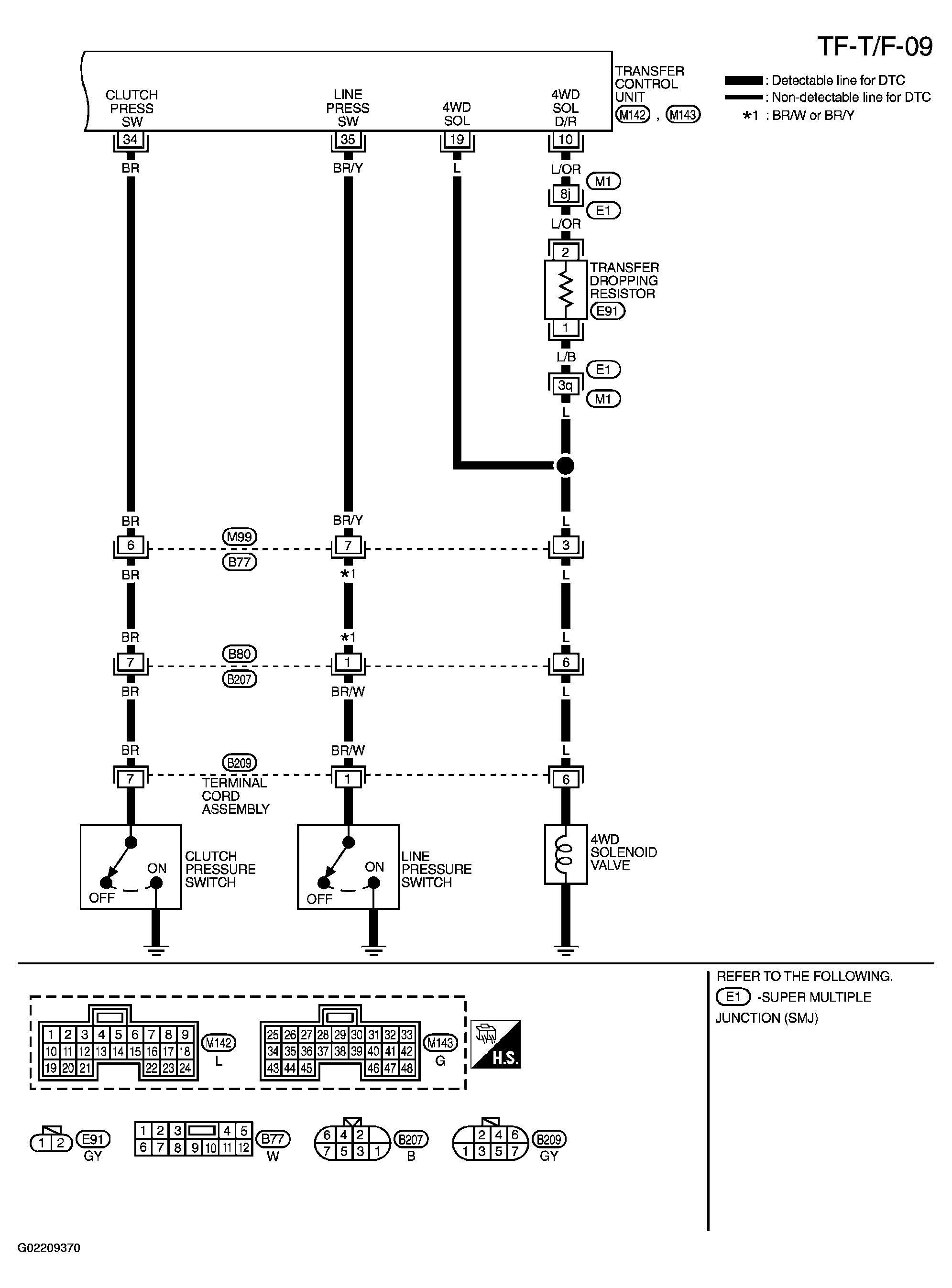

Fig 4: Displaying Wiring Diagram (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

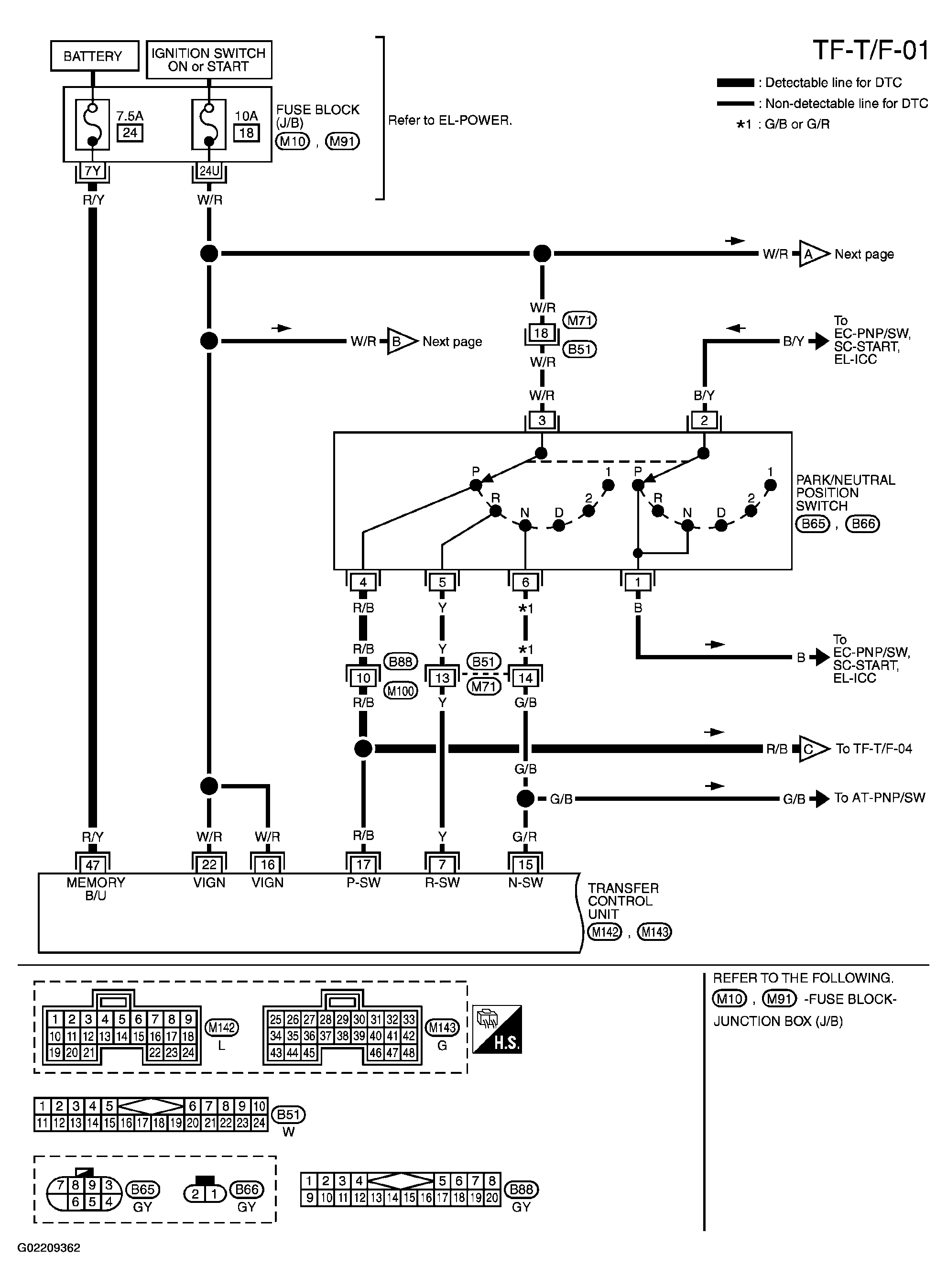

Fig 5: Displaying Wiring Diagram (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

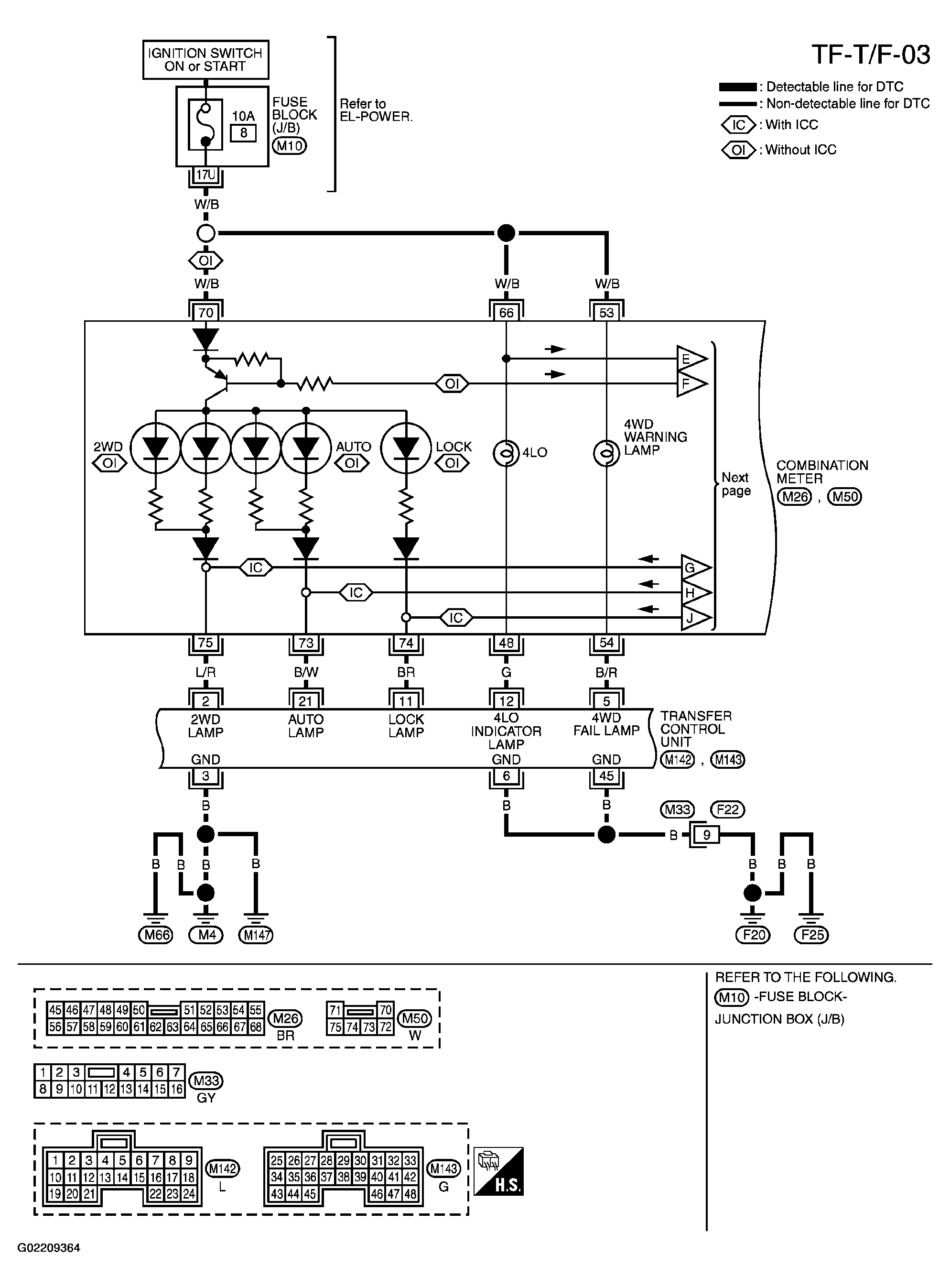

Fig 6: Displaying Wiring Diagram (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

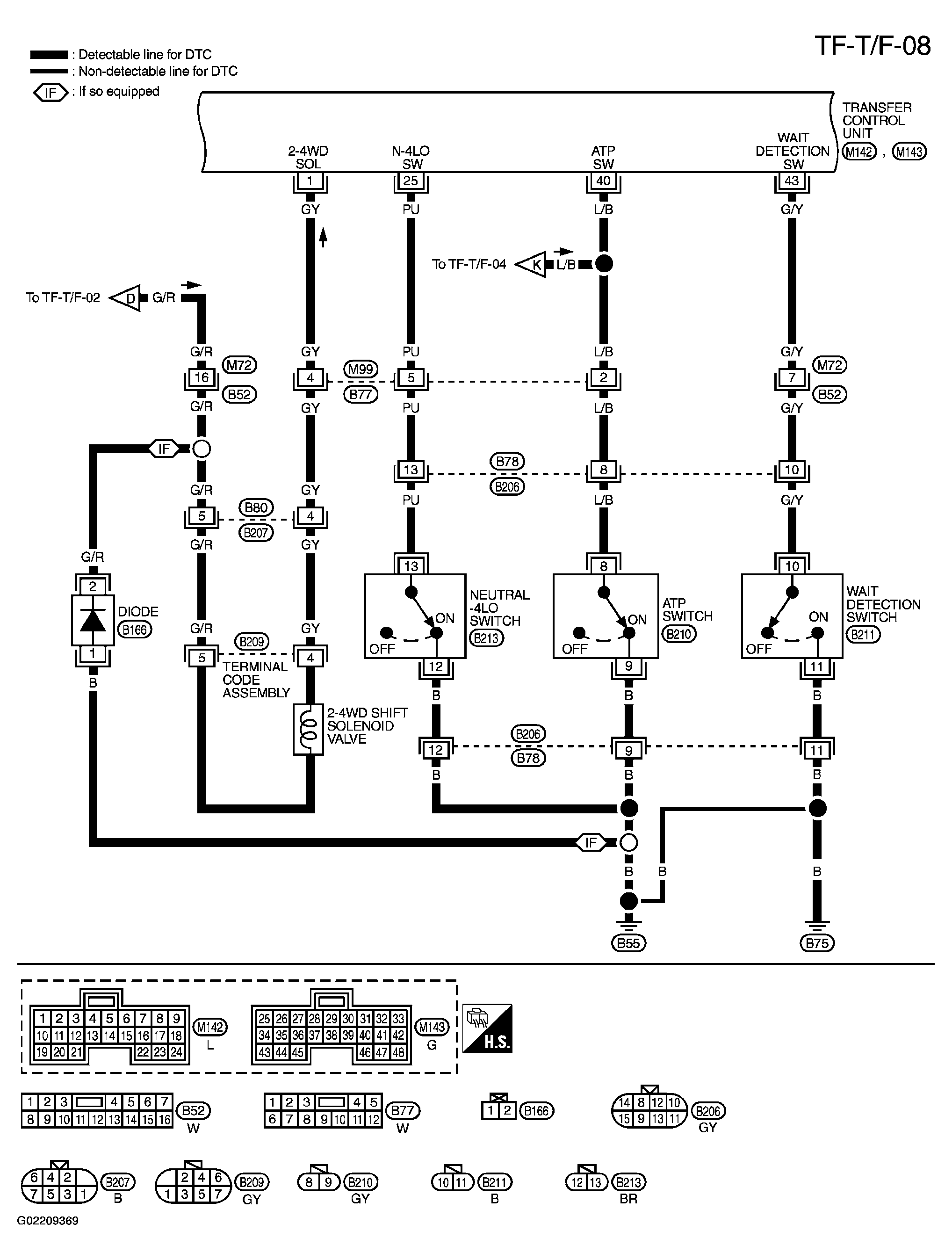

Fig 7: Displaying Wiring Diagram (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

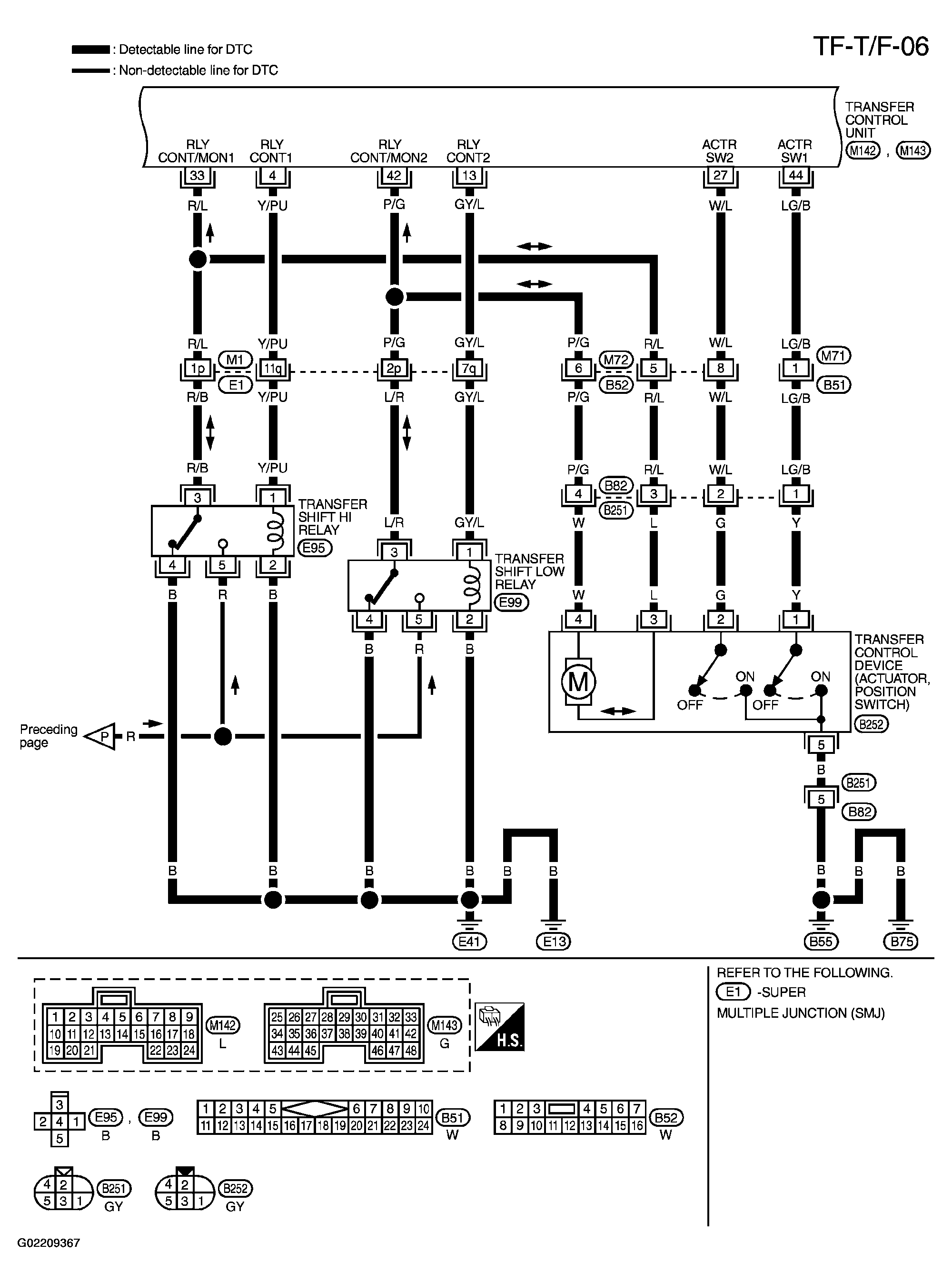

Fig 8: Displaying Wiring Diagram (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Displaying Wiring Diagram (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
