Front Case: Disassembly: Notes

  1. Remove rear case from center case. Refer to Rear case .
  2. Remove front case from center case.

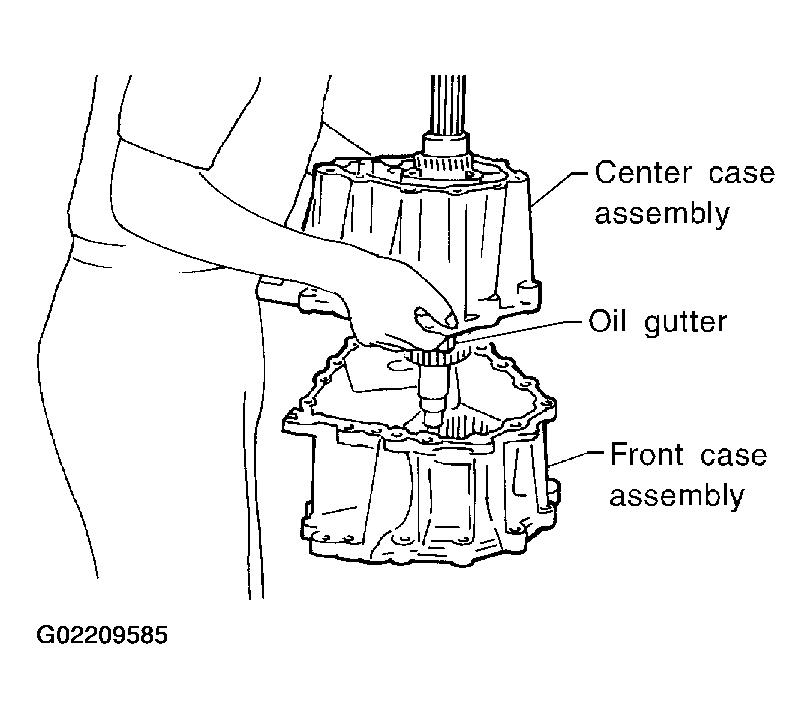

    Fig 1: Removing Front Case From Center Case
    G02209585Courtesy of NISSAN MOTOR CO., U.S.A.
