Clutch
›
Retaining Plate
Retaining Plate

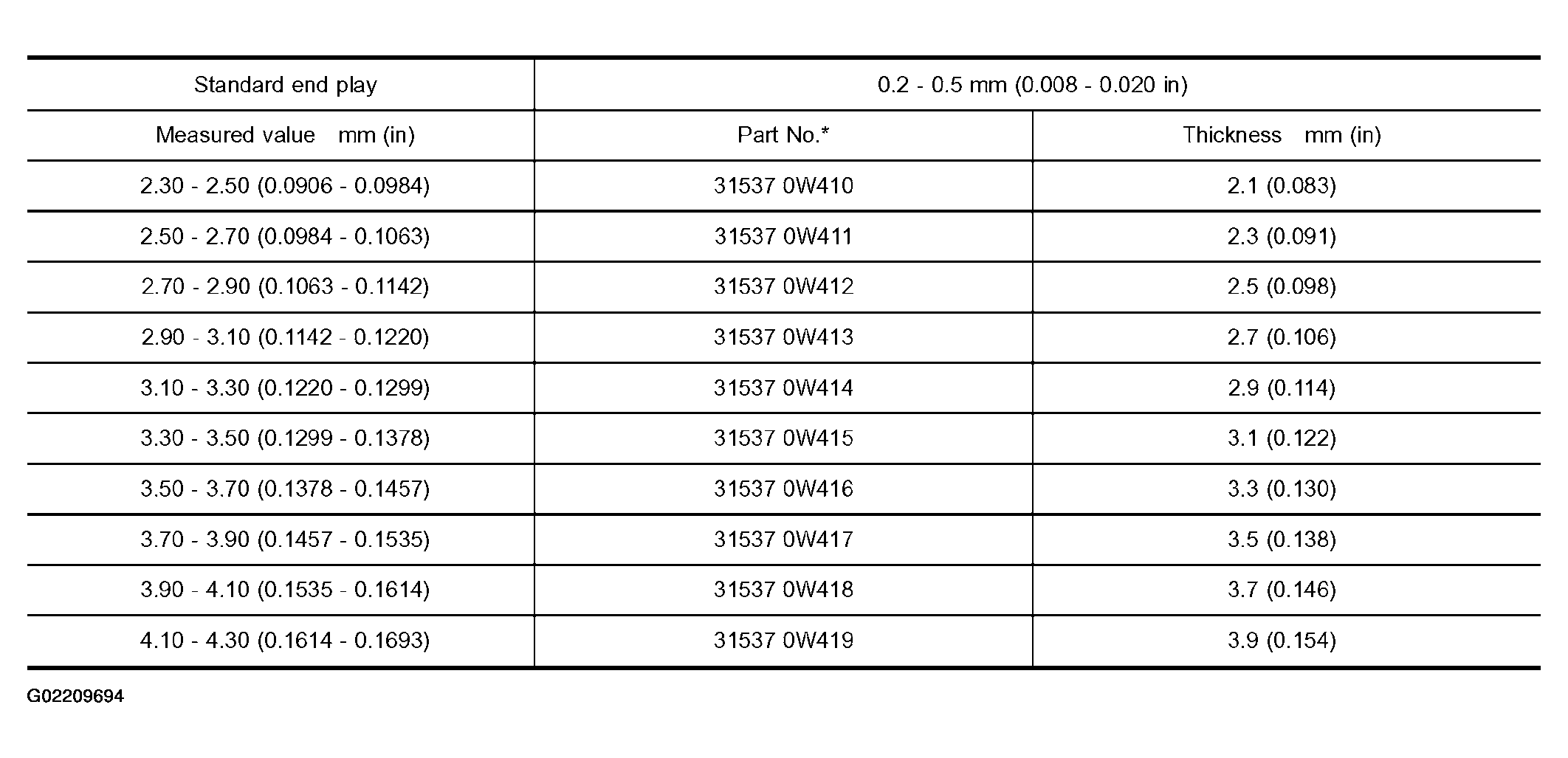

Fig 1: Clutch Retaining Plate Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

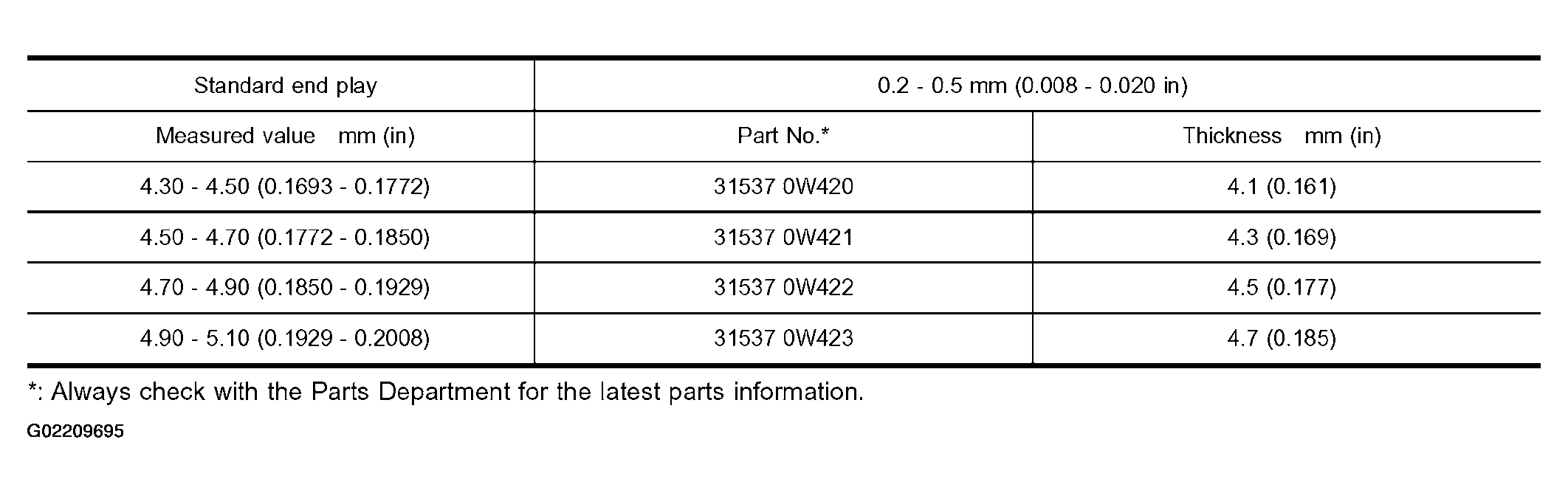

Fig 2: Clutch Retaining Plate Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
