FixVault
Home
›
Infiniti
›
2003
›
QX4 RWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Automatic Speed Control Device
›
Automatic Speed Control Device (ASCD)
›
Schematic
Automatic Speed Control Device (ASCD): Schematic

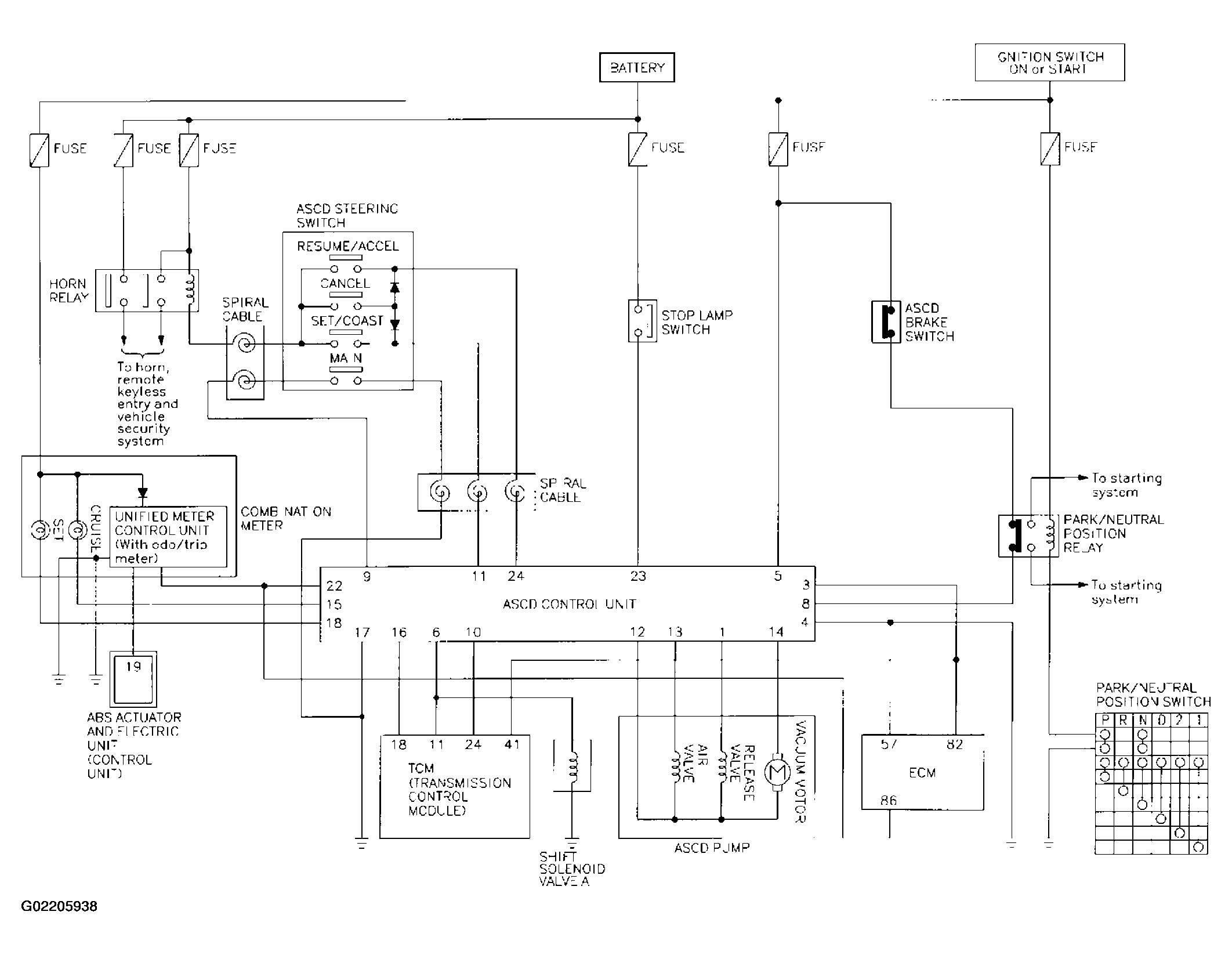

Fig 1: Automatic Speed Control Device Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
