Terminals And Reference Value For ICC Unit

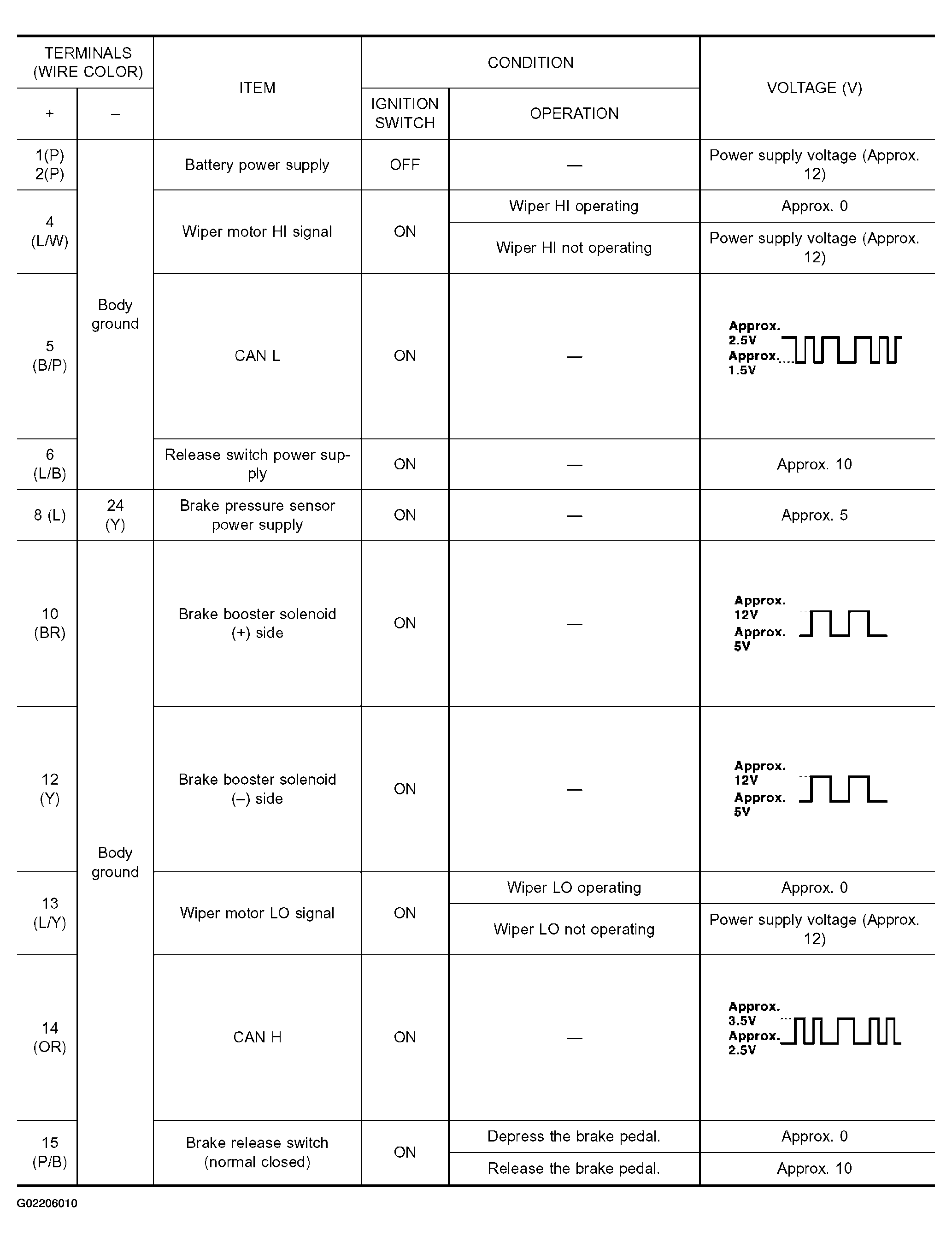

Fig 1: Terminals & Reference Value For ICC Unit (1 Of 5)
G02206010Courtesy of NISSAN MOTOR CO., U.S.A.

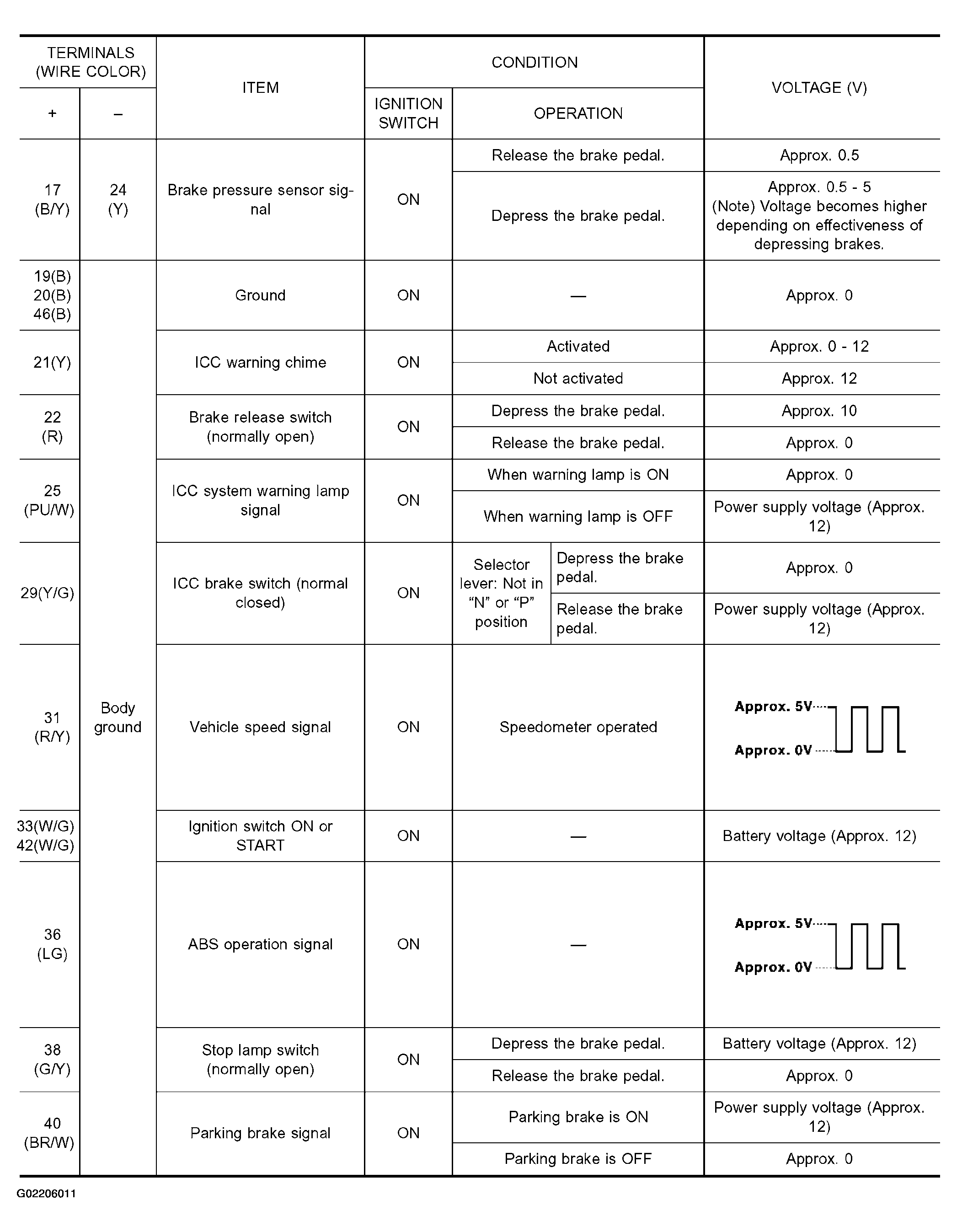

Fig 2: Terminals & Reference Value For ICC Unit (2 Of 5)
G02206011Courtesy of NISSAN MOTOR CO., U.S.A.

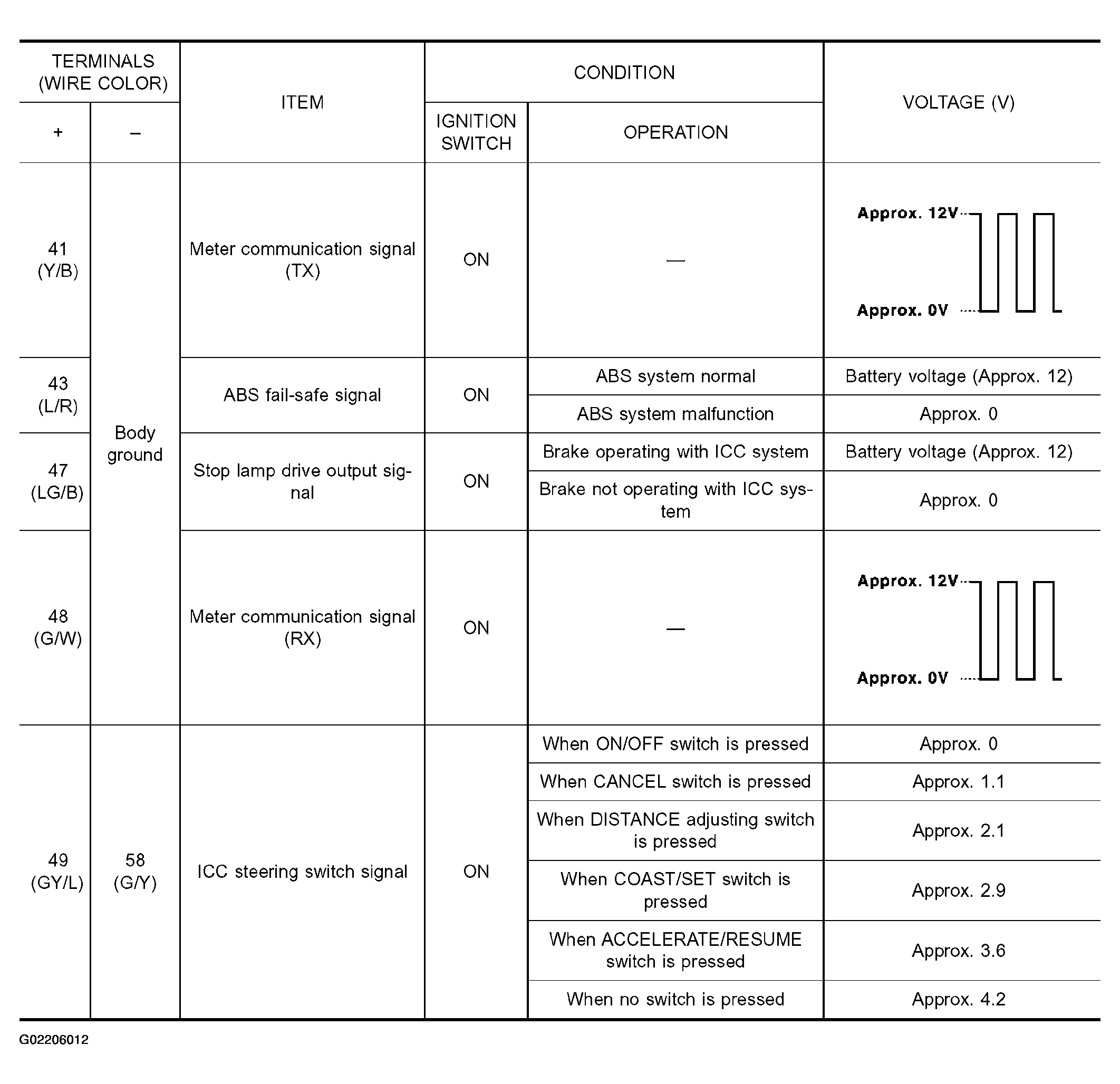

Fig 3: Terminals & Reference Value For ICC Unit (3 Of 5)
G02206012Courtesy of NISSAN MOTOR CO., U.S.A.

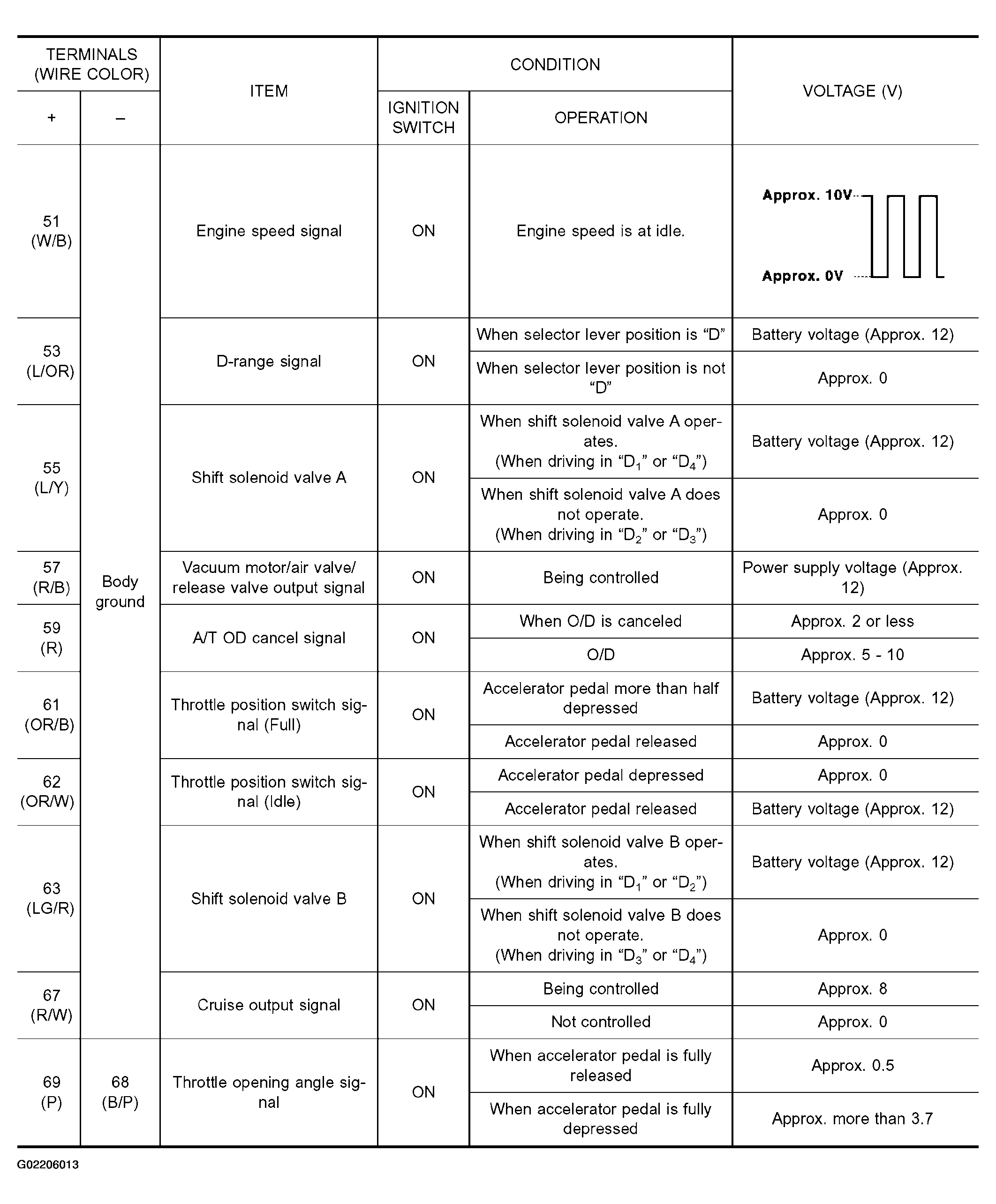

Fig 4: Terminals & Reference Value For ICC Unit (4 Of 5)
G02206013Courtesy of NISSAN MOTOR CO., U.S.A.

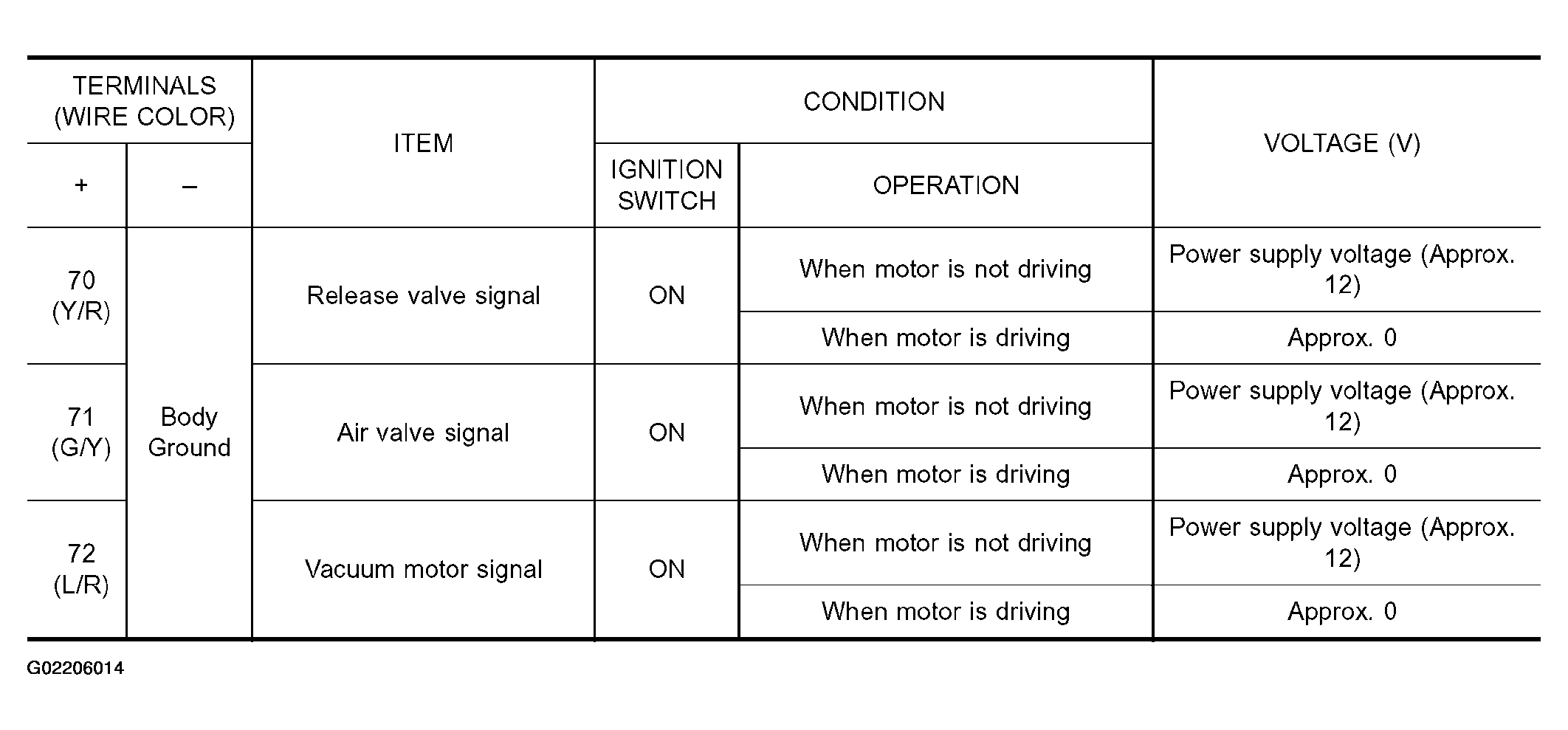

Fig 5: Terminals & Reference Value For ICC Unit (5 Of 5)
G02206014Courtesy of NISSAN MOTOR CO., U.S.A.
