Malfunction Code Table

In this mode, a malfunction code is indicated by the number of flashes from the automatic drive positioner indicator lamps (indicator lamp 1, indicator lamp 2) as shown below.

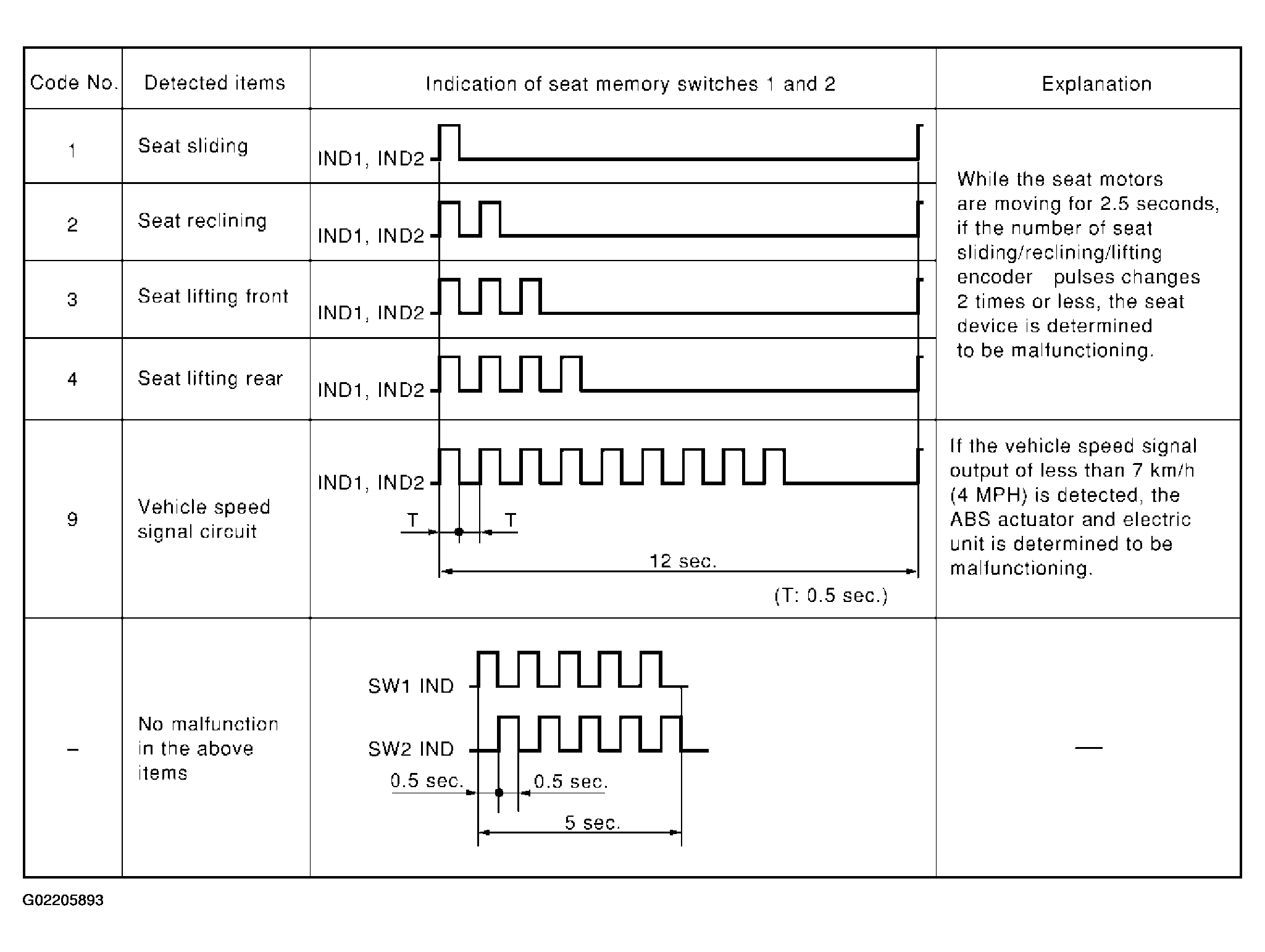

Fig 1: Malfunction Code Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

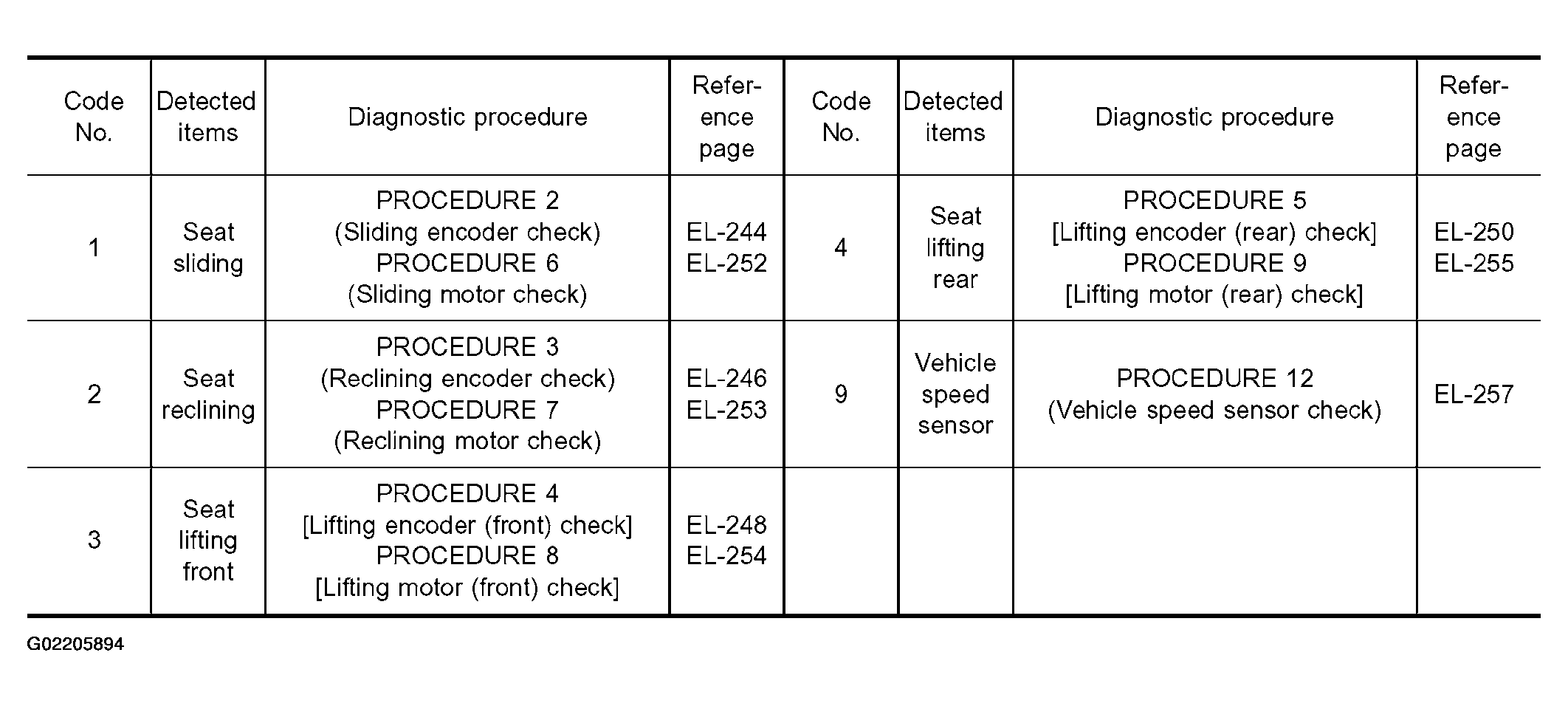

Fig 2: Malfunction Code Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
