Interior Room Lamp Operation Check

Check if the interior room lamp switch is in the "ON" position and the lamp illuminates.

Does interior room lamp illuminate?

1. Yes: GO TO 2.
2. No: Check the following.
   • Harness for open or short between smart entrance control unit and interior room lamp
   • Interior room lamp

With CONSULT-II

1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "INT/IGN ILLUM" and touch "ON".
   Fig 1: Checking Interior Room Lamp Operation With CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

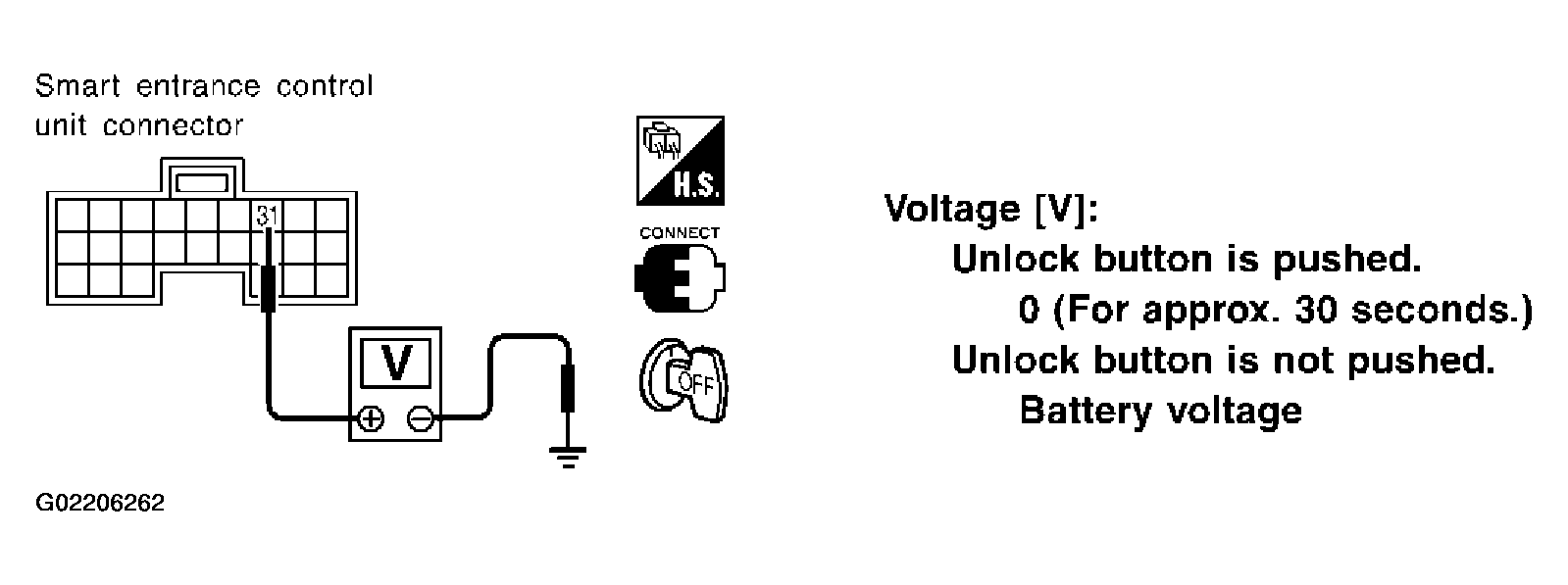

Push unlock button of keyfob with all doors closed and driver's door locked, and check voltage between smart entrance control unit harness connector M122 terminal 31 (R/B) and ground.

Fig 2: Checking Interior Room Lamp Operation Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - KEYLES -  .

OK or NG

1. OK: System is OK.
2. NG: Check harness for open or short between smart entrance control unit and interior room lamp.
