On Board Diagnostic System Description
›
CONSULT-II Inspection Procedure
›
Data Monitor Mode
Data Monitor Mode

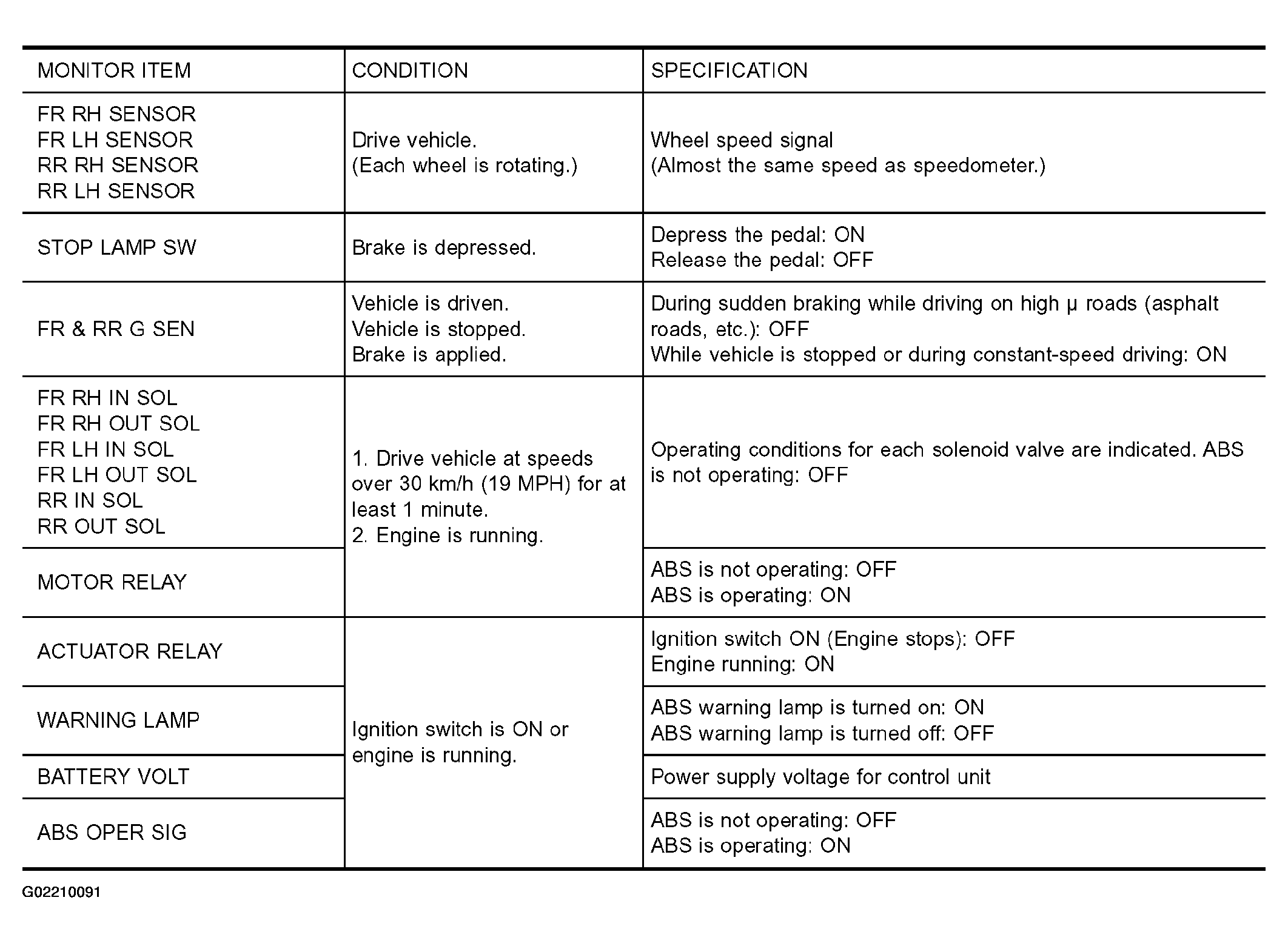

Fig 1: Data Monitor Mode Specification Reference Charts
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
