Charging System: Construction

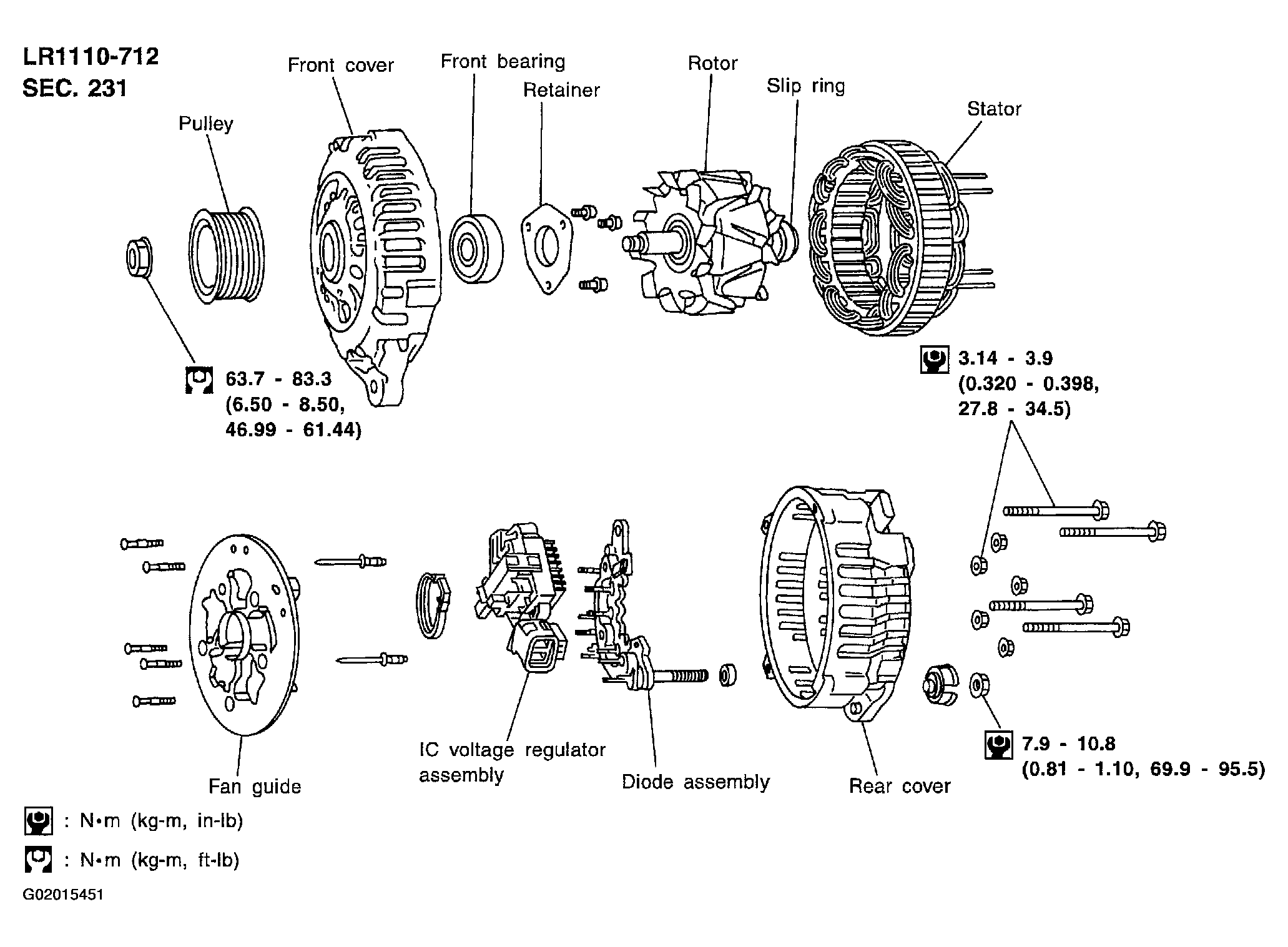

Fig 1: Exploded View Of Alternator
G02015451Courtesy of NISSAN MOTOR CO., U.S.A.
