Trouble Diagnoses with Battery/Starting/Charging System Tester
›
Work Flow
Work Flow

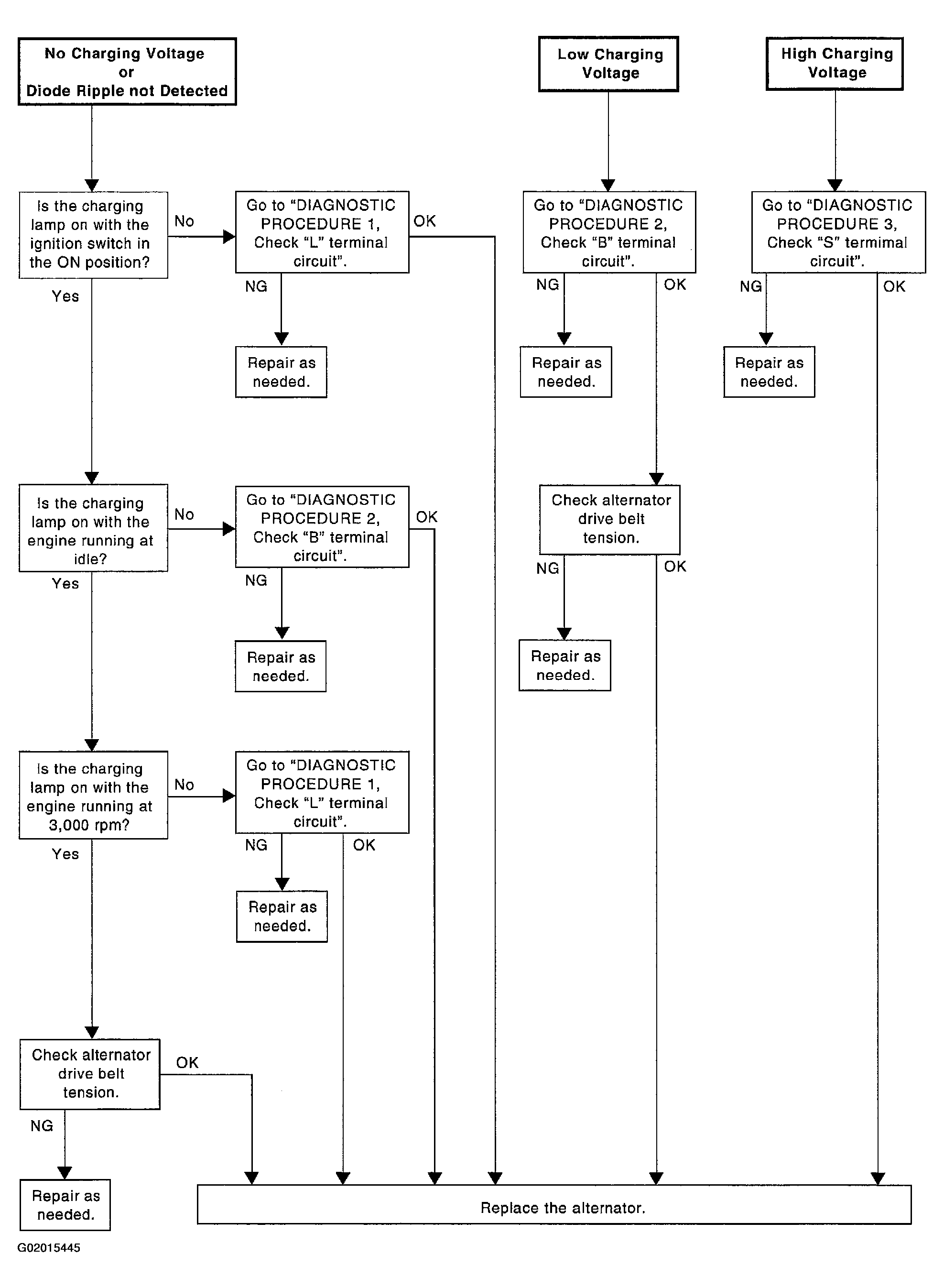

Fig 1: Charging System Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
