Starting System: Construction

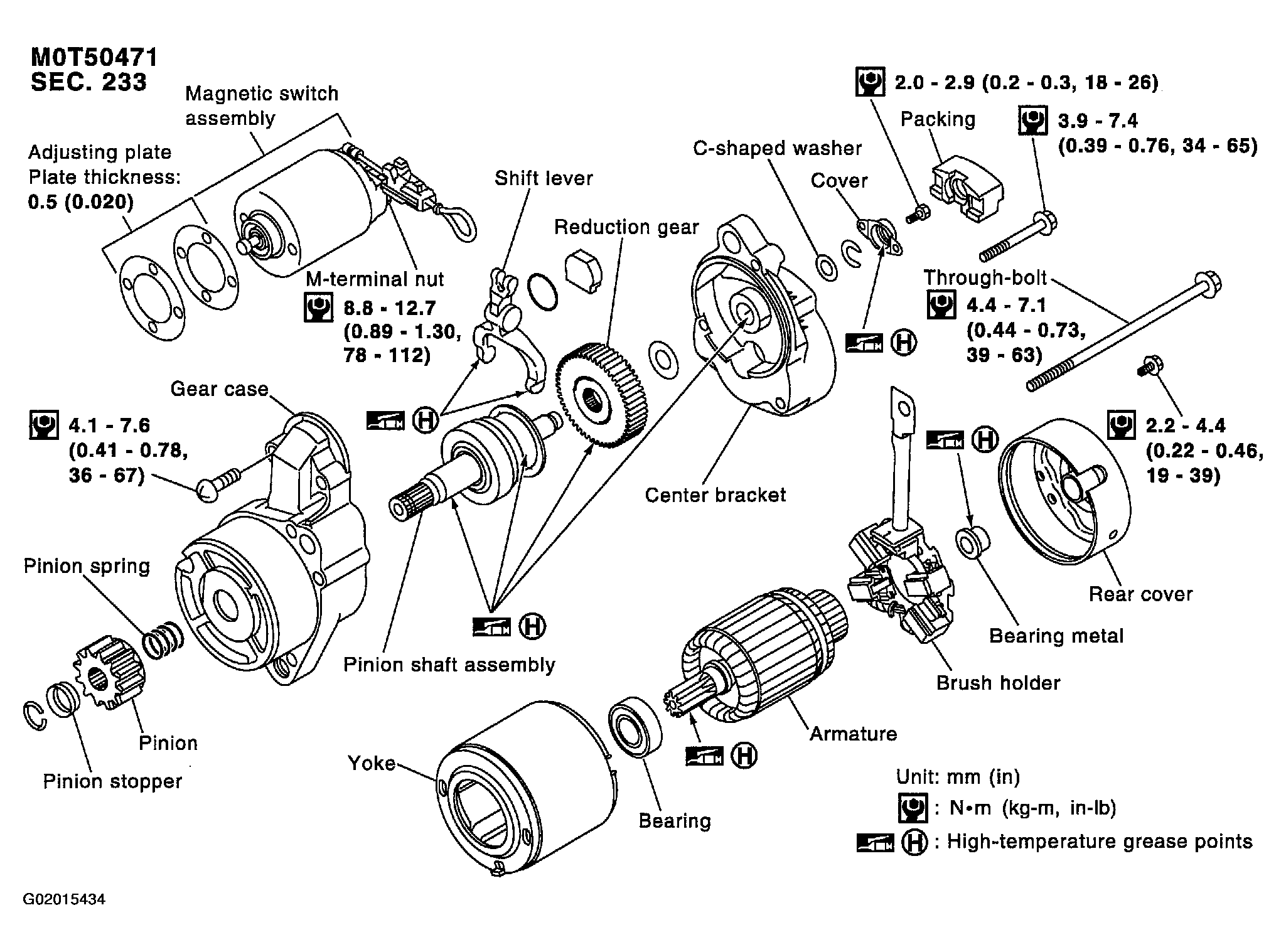

Fig 1: Exploded View Of Starter
G02015434Courtesy of NISSAN MOTOR CO., U.S.A.
