Automatic Drive Positioner
›
Trouble Diagnoses
›
Symptom Chart
Symptom Chart

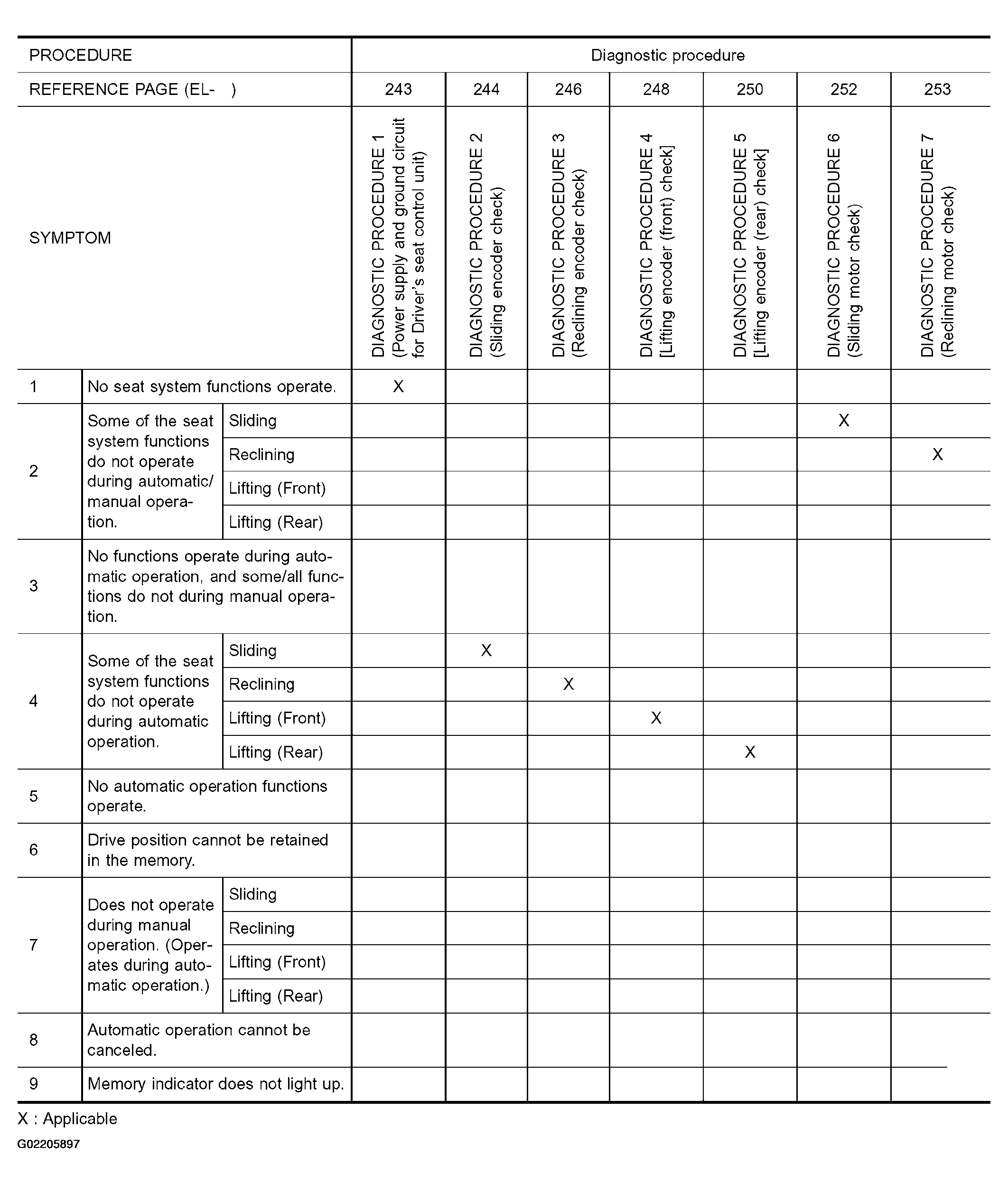

Fig 1: Automatic Drive Positioner Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

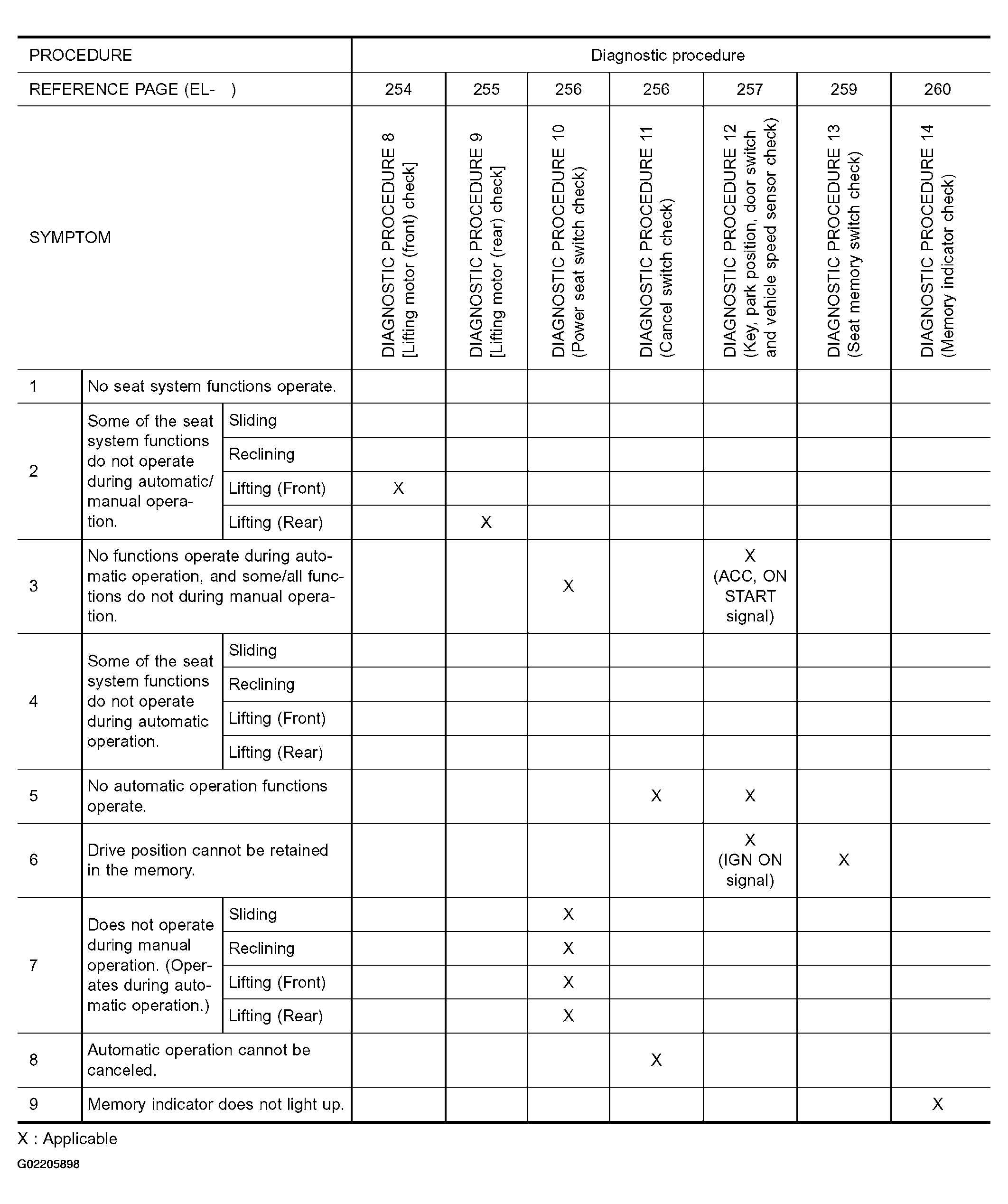

Fig 2: Automatic Drive Positioner Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
