Engine Controls - Self-Diagnostics
›
Drive Cycles
Drive Cycles

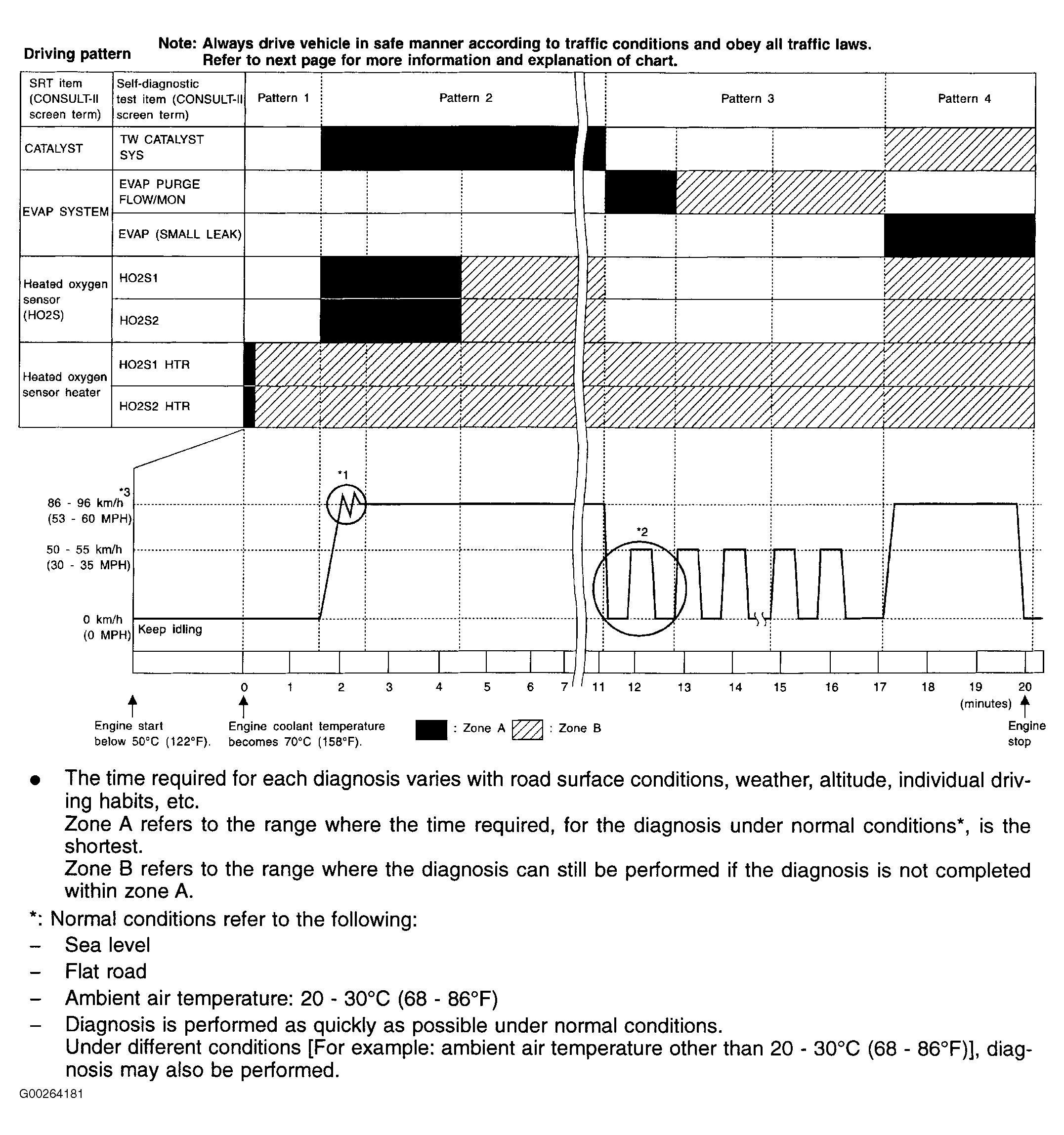

Fig 1: Drive Pattern (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

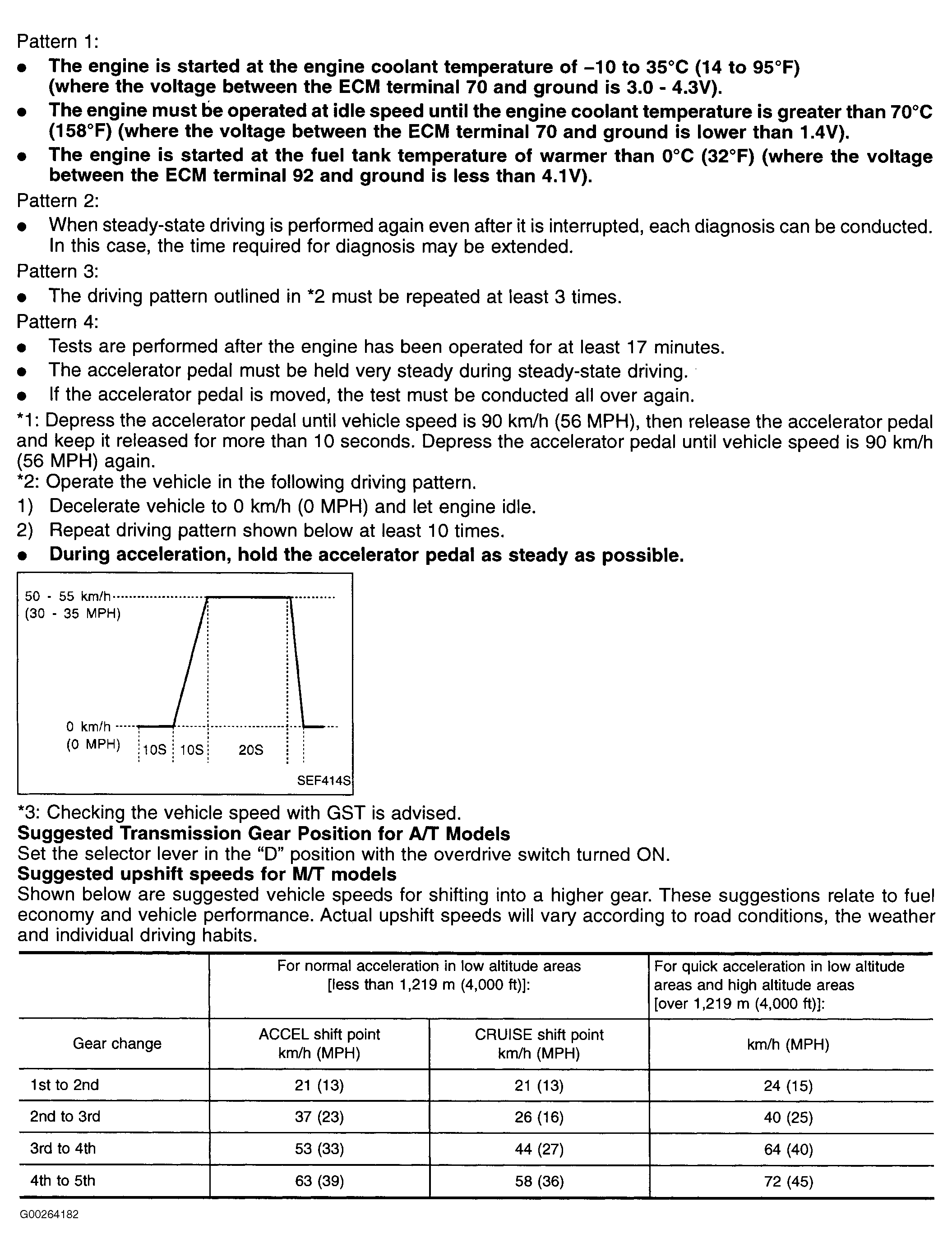

Fig 2: Drive Pattern (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
