Data Monitor (SPEC) Mode

For DATA MONITOR (SPEC) mode descriptions, see Fig 1.

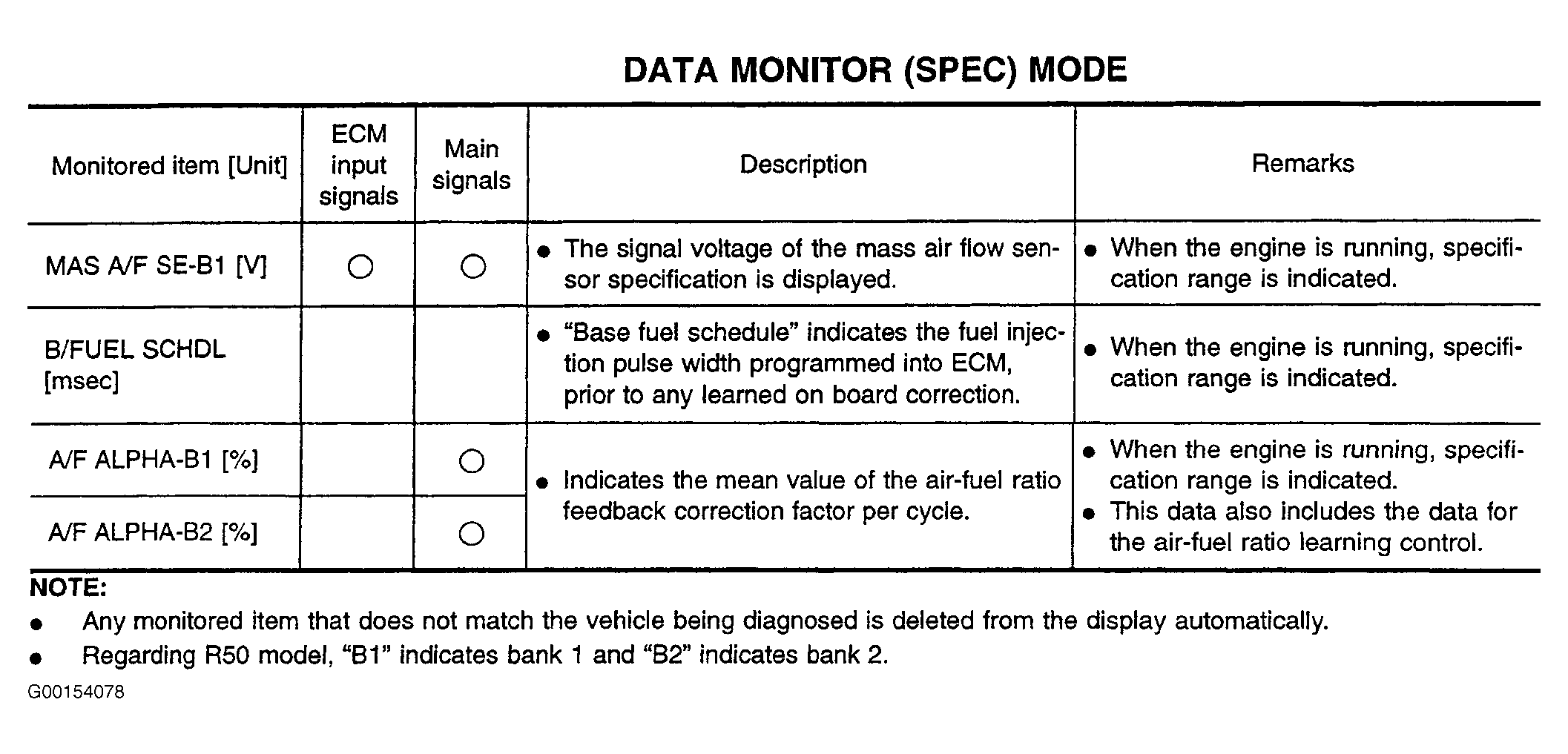

Fig 1: Data Monitor (SPEC) Mode Descriptions

G00154078

Courtesy of NISSAN MOTOR CO., U.S.A.
