Power Steering Gear And Linkage: Components

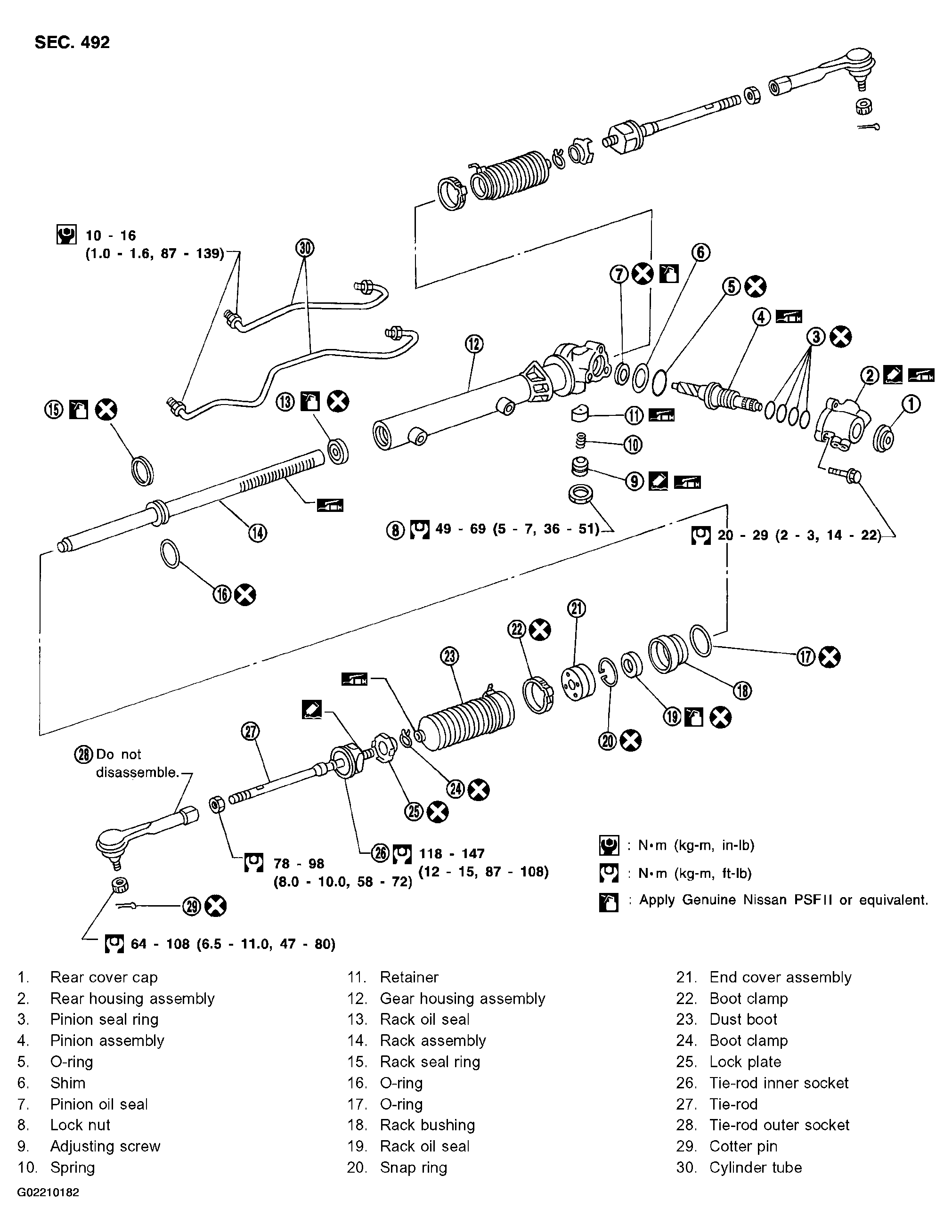

Fig 1: Exploded View And Torque Specification Of Power Steering Gear And Linkage
G02210182Courtesy of NISSAN MOTOR CO., U.S.A.
