Power Steering Oil Pump: Components

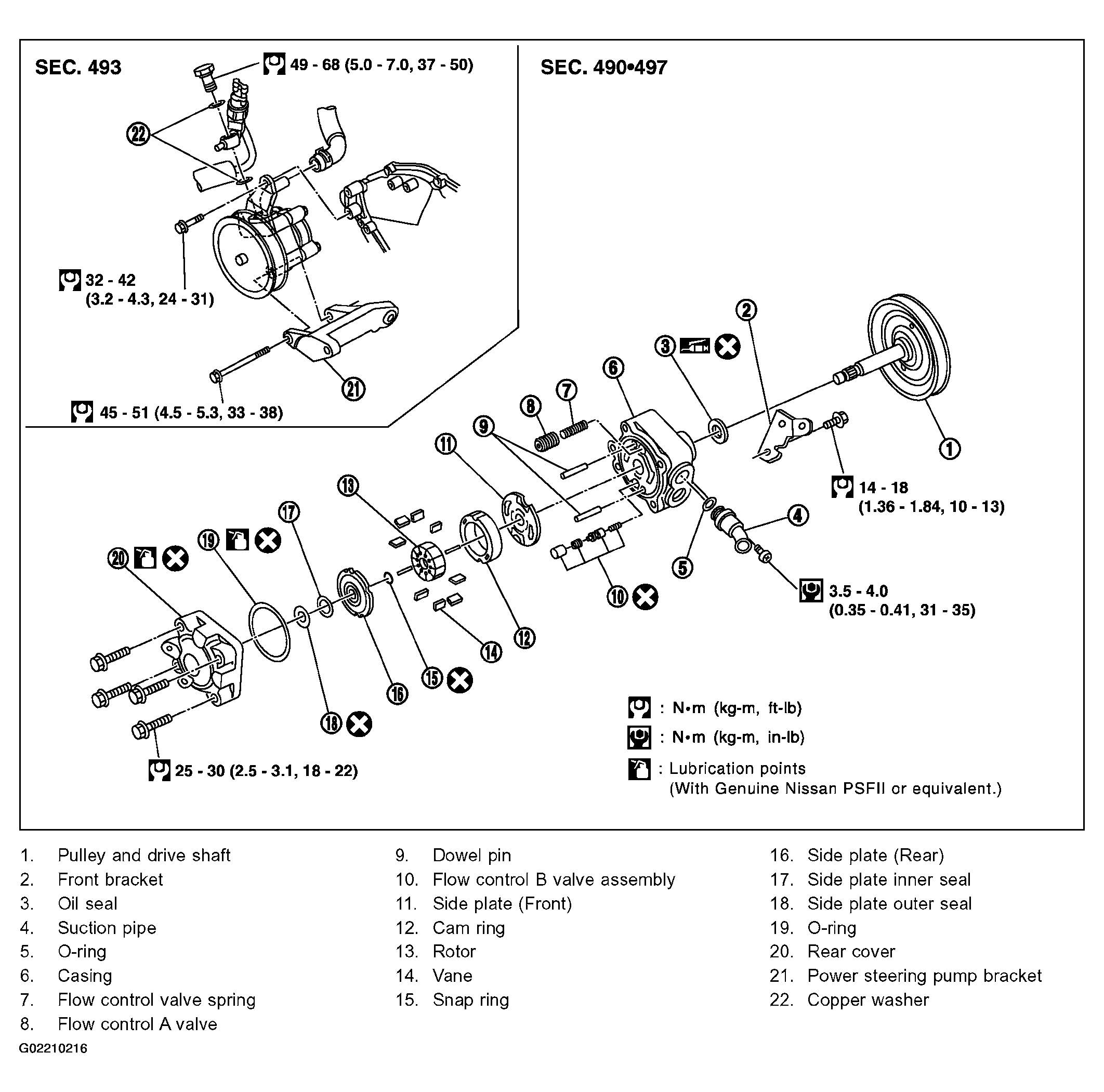

Fig 1: Exploded View And Torque Specifications Of Power Steering Oil Pump
G02210216Courtesy of NISSAN MOTOR CO., U.S.A.
