4WD Model

  1. Remove rear engine mounting member from side member while supporting A/T with transfer case with jack. Tighten rear engine mounting member to the specified torque. Refer to Rear Engine Mounting.
  2. Lower A/T with transfer case as much as possible.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.
    • Always use new sealing parts.

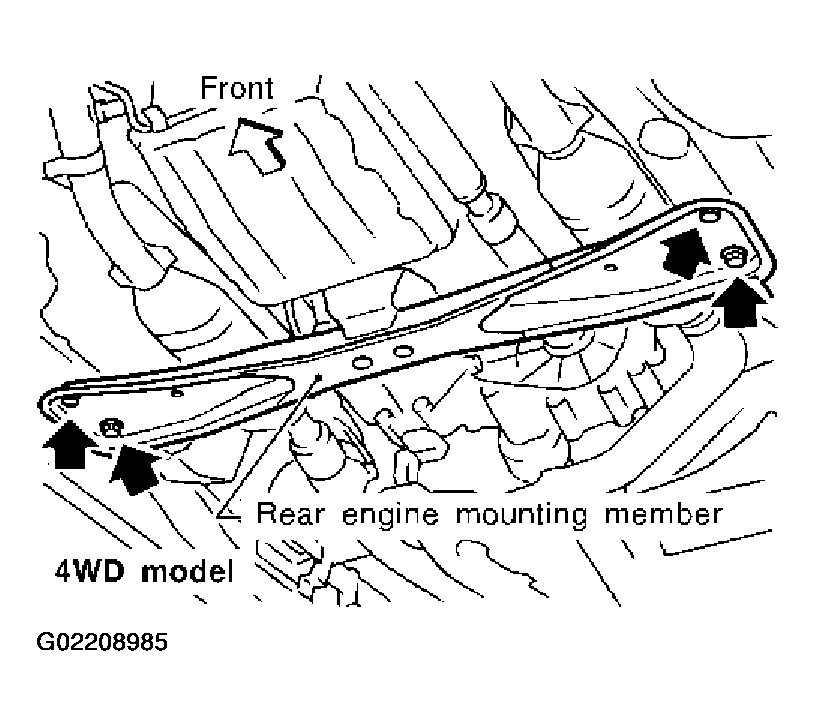

      Fig 1: Removing Rear Engine Mounting Member From Side Member
      G02208985Courtesy of NISSAN MOTOR CO., U.S.A.
