Circuit Diagram For Quick Pinpoint Check
Circuit Diagram For Quick Pinpoint Check

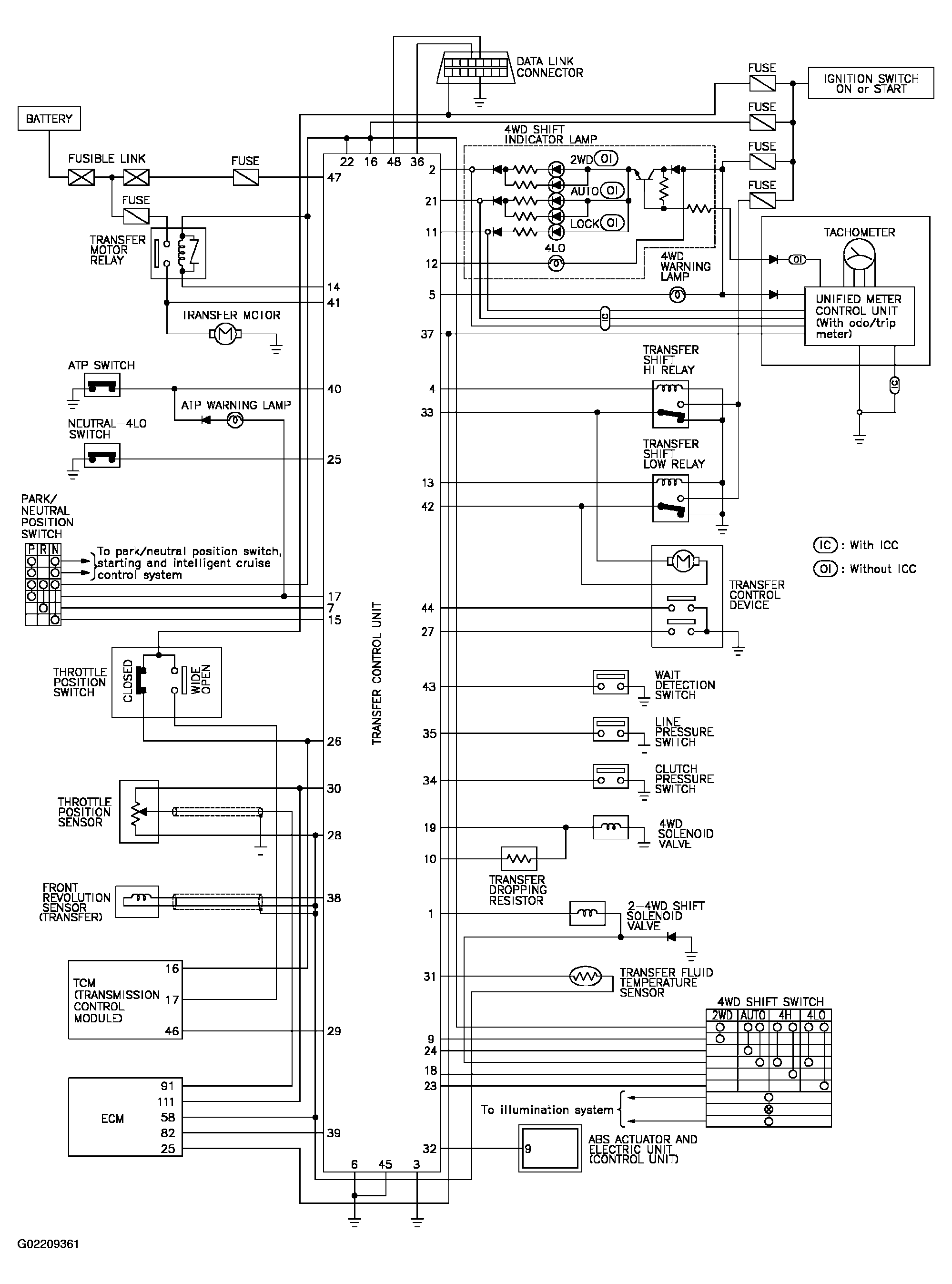

Fig 1: Displaying All-Mode 4WD System Circuit Diagram For Quick Pinpoint Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
