Control System Diagram
Control System Diagram

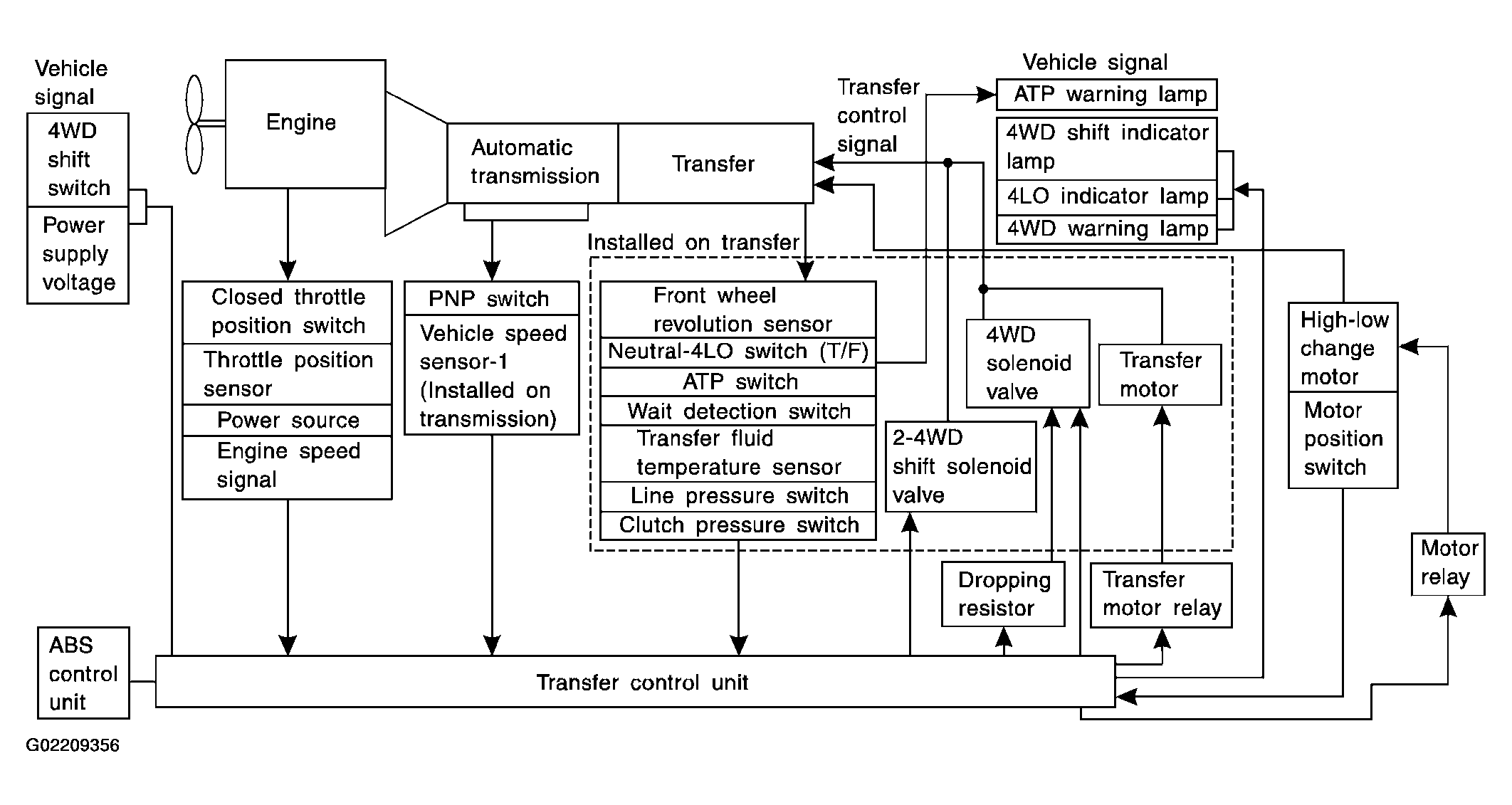

Fig 1: Displaying Control System Diagram Of All-Mode 4WD System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
