Indications Of 4WD Warning Lamp
Indications Of 4WD Warning Lamp

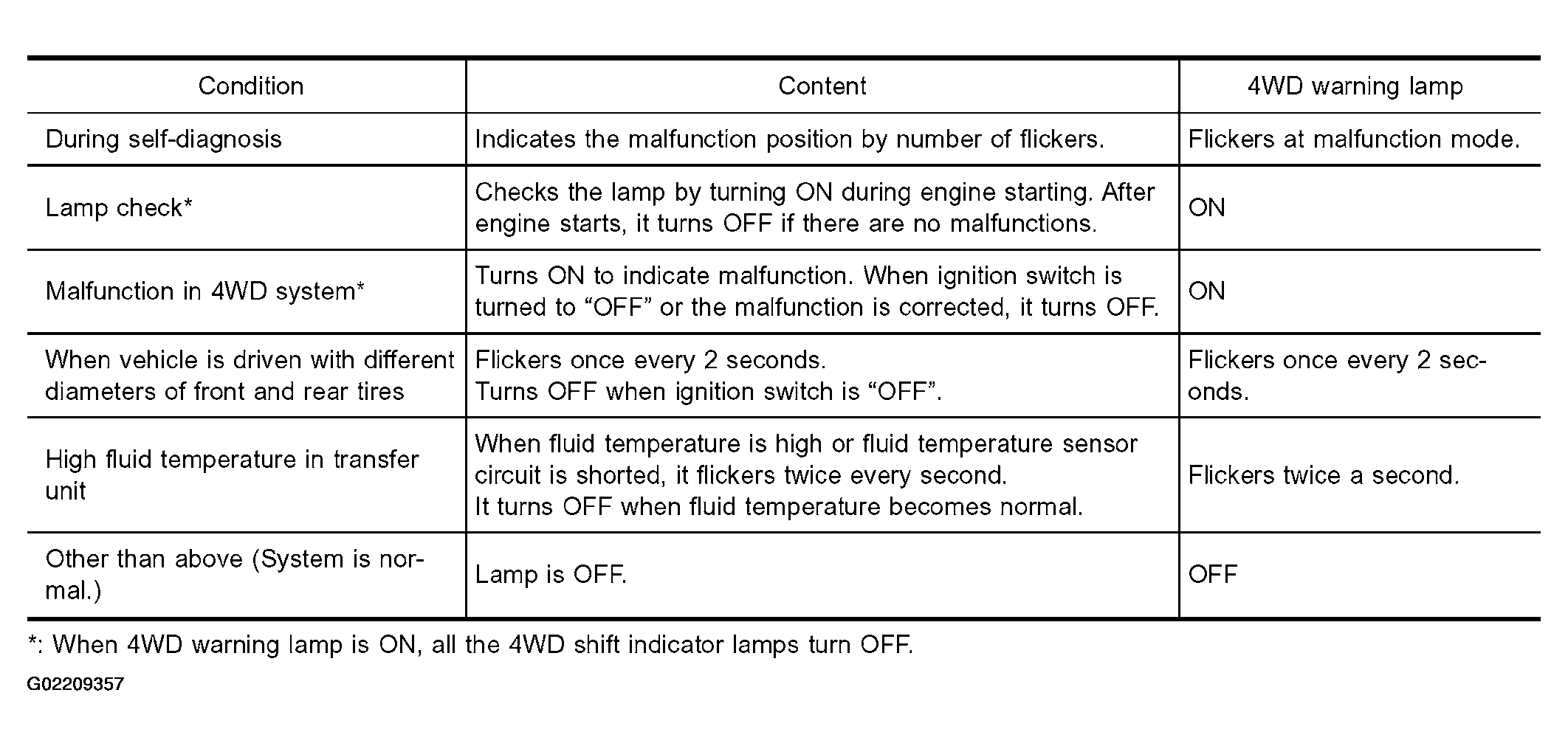

Fig 1: Displaying 4WD Warning Lamp Indications Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
