Cross-Sectional View
Cross-Sectional View

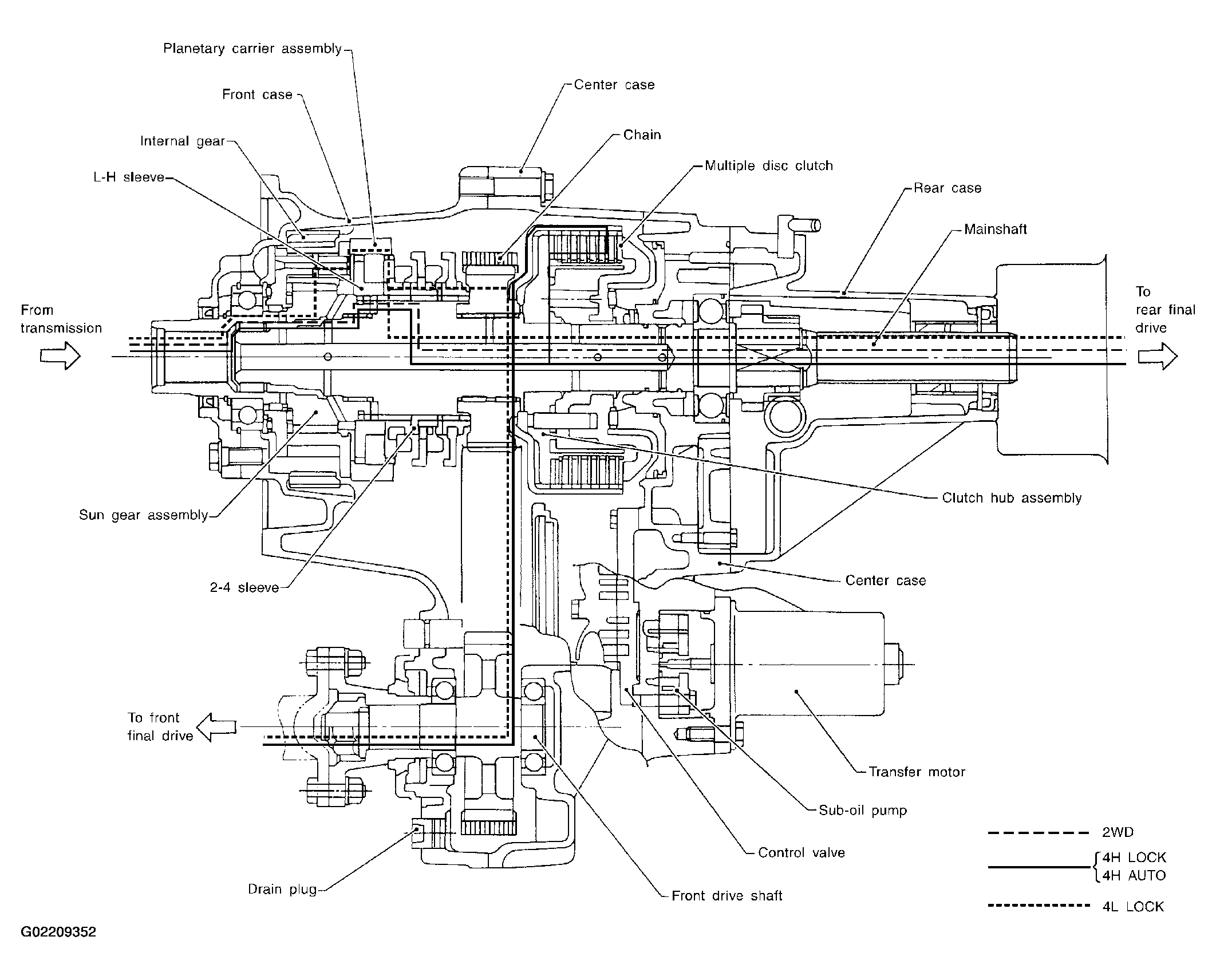

Fig 1: Displaying Cross-Sectional View Of All-Mode 4WD System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
