Transfer Components
Transfer Components

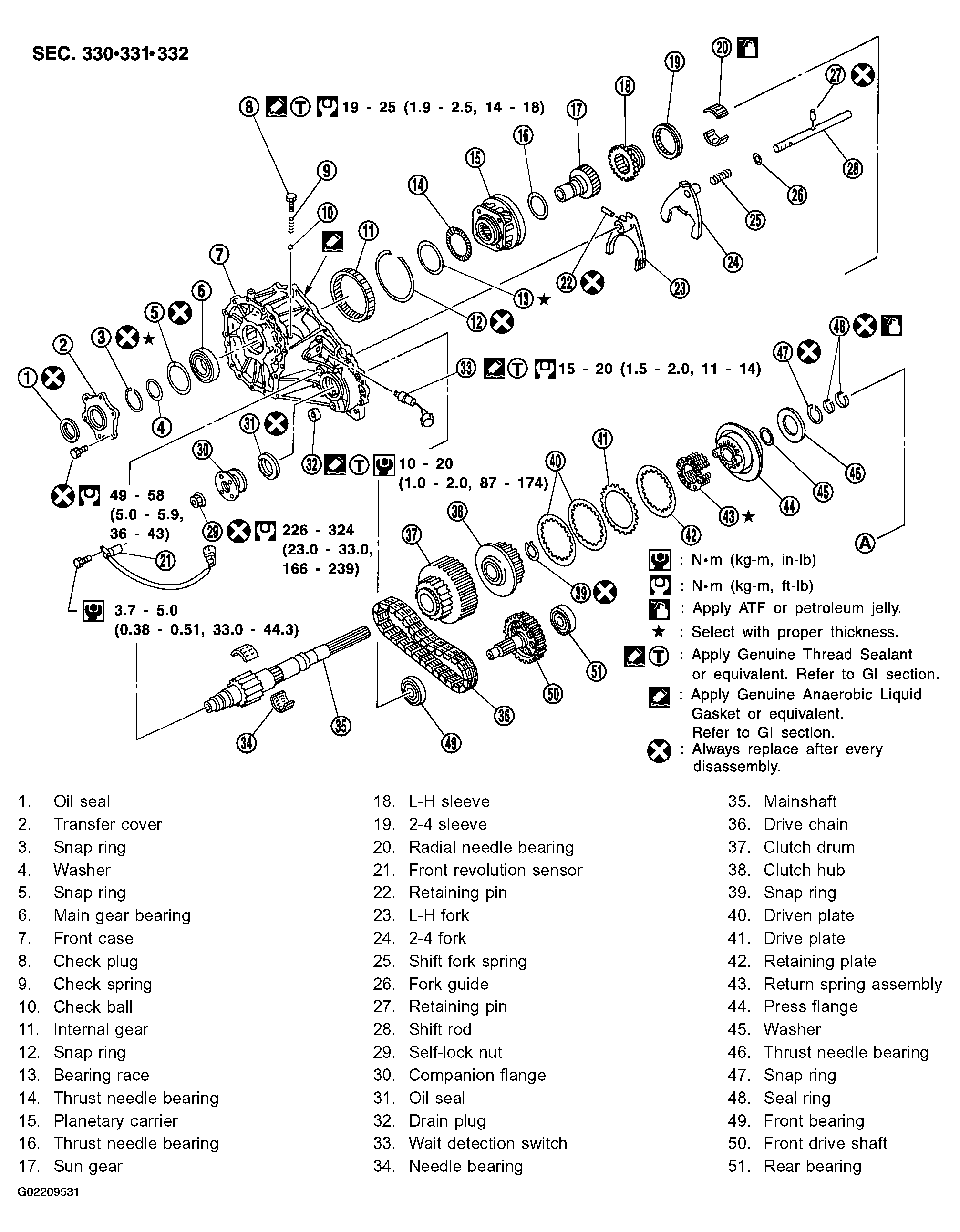

Fig 1: Exploded View Of Transfer Components With Torque Specification (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

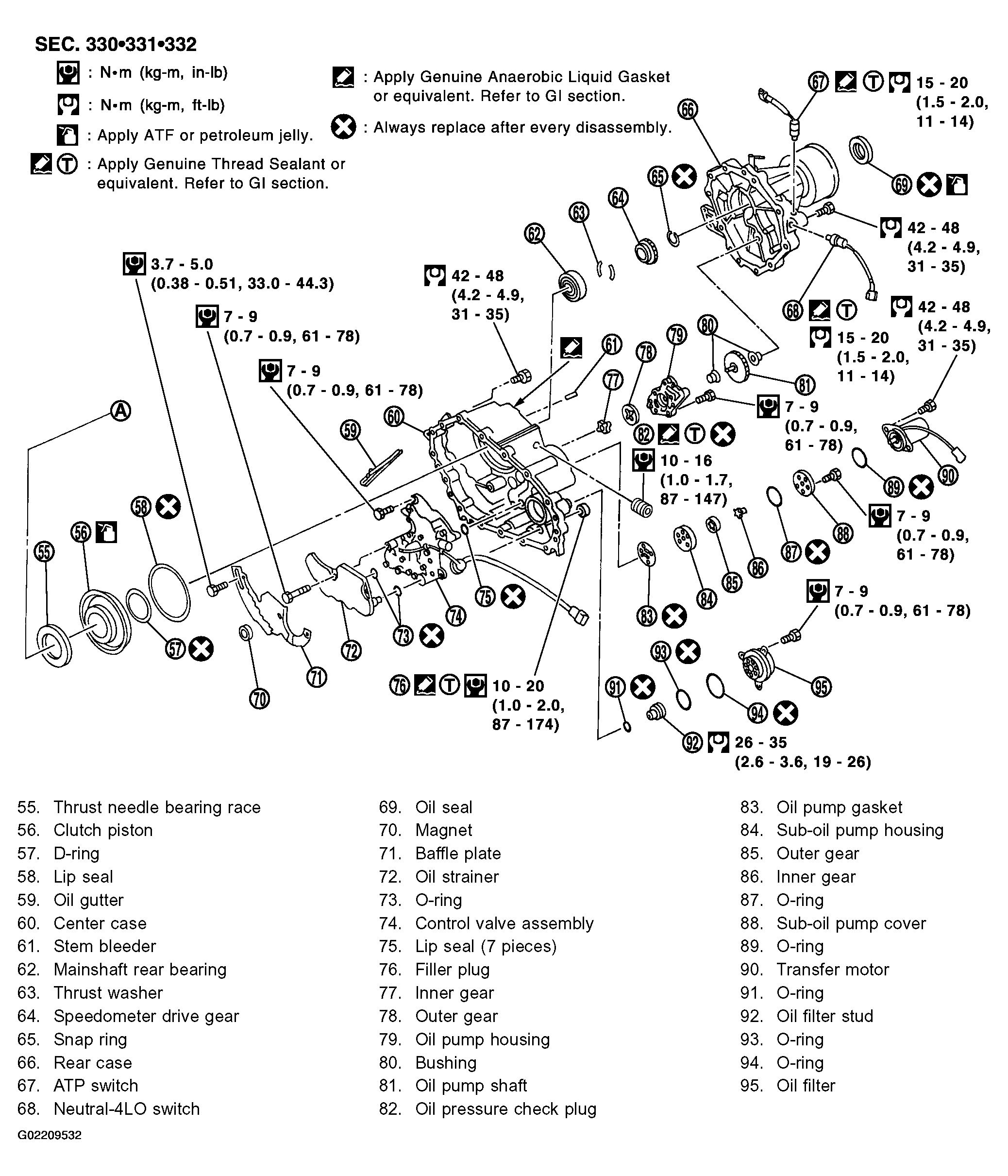

Fig 2: Exploded View Of Transfer Components With Torque Specification (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
