Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

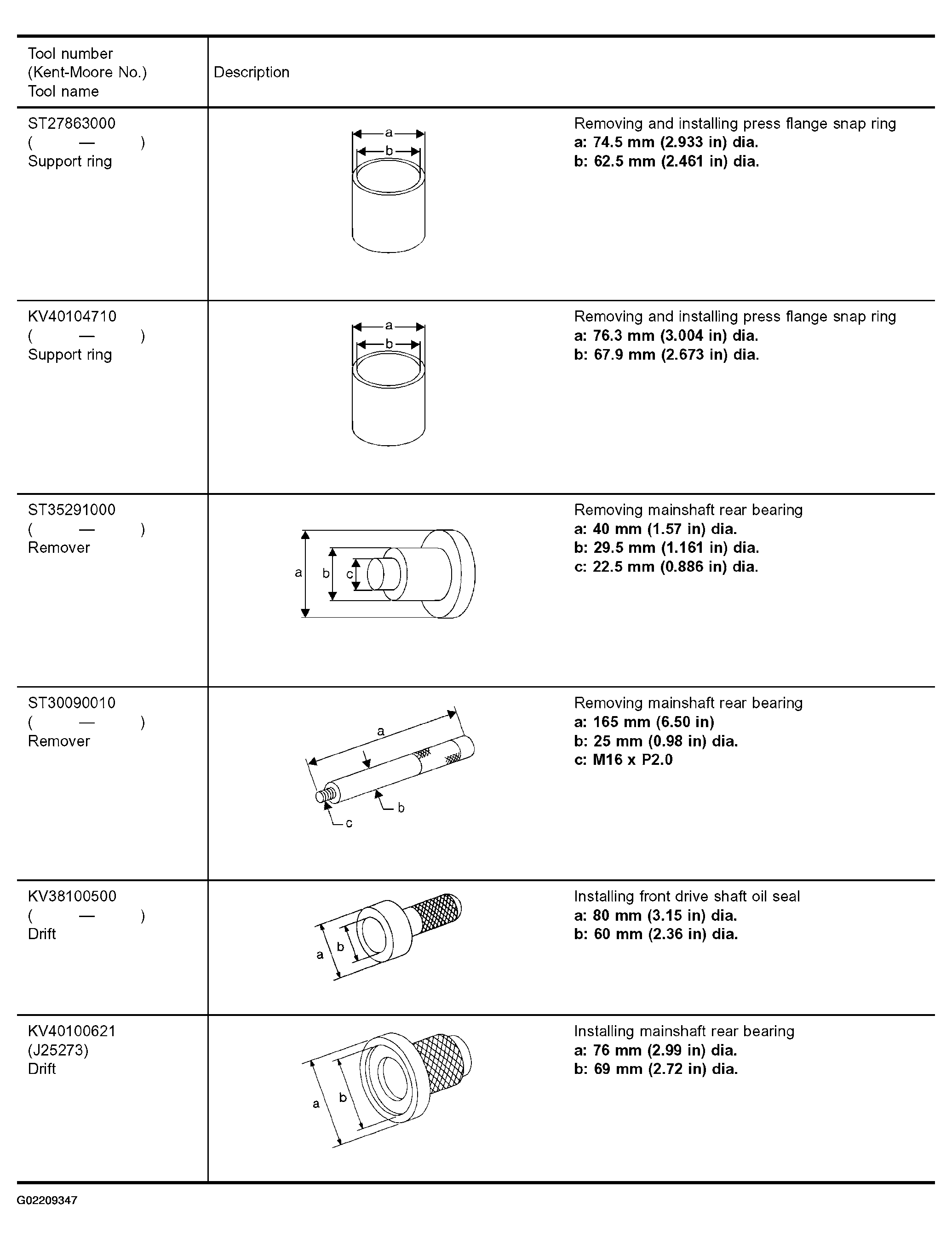

Fig 1: Identifying Special Service Tools (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

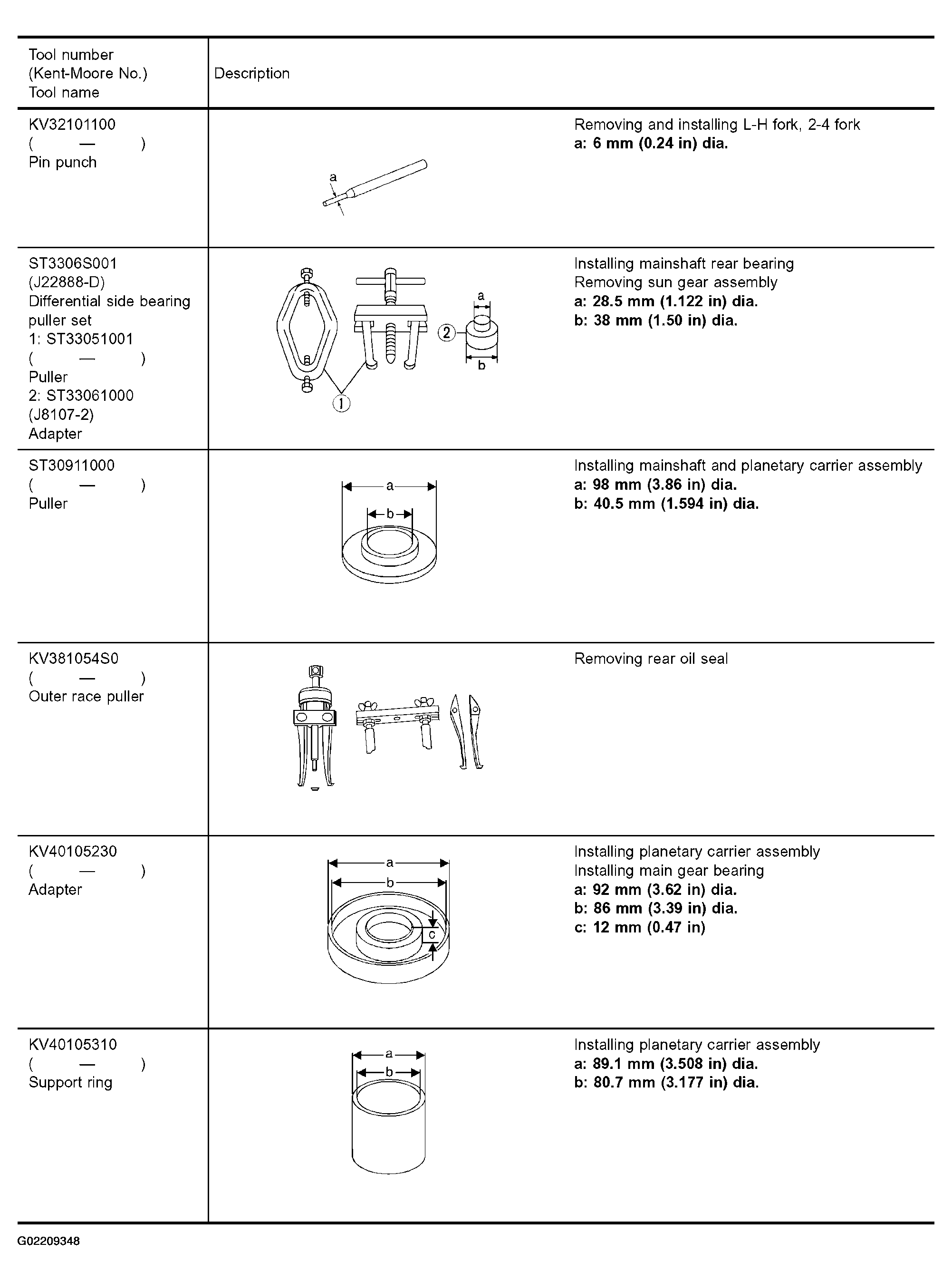

Fig 2: Identifying Special Service Tools (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

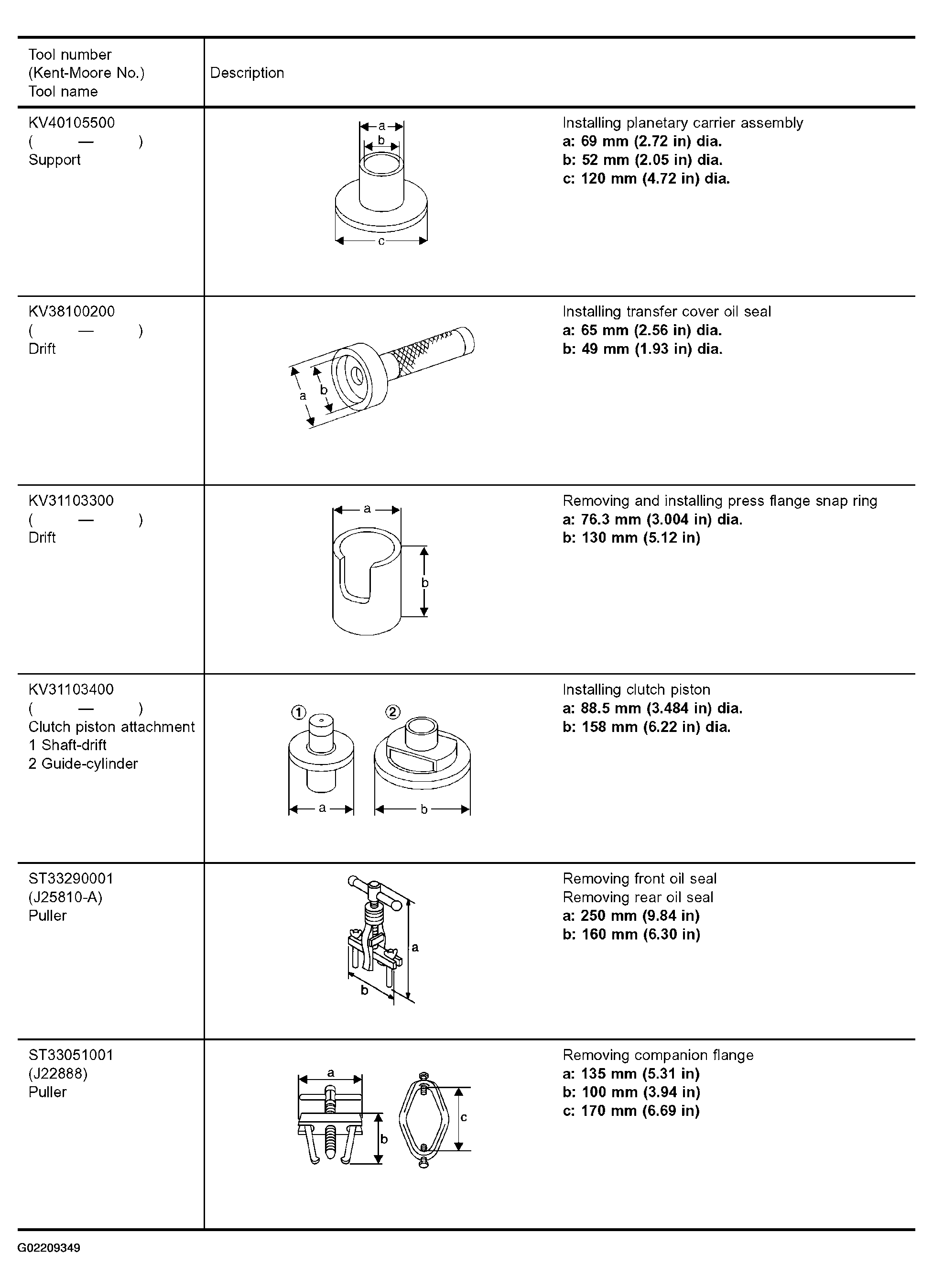

Fig 3: Identifying Special Service Tools (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

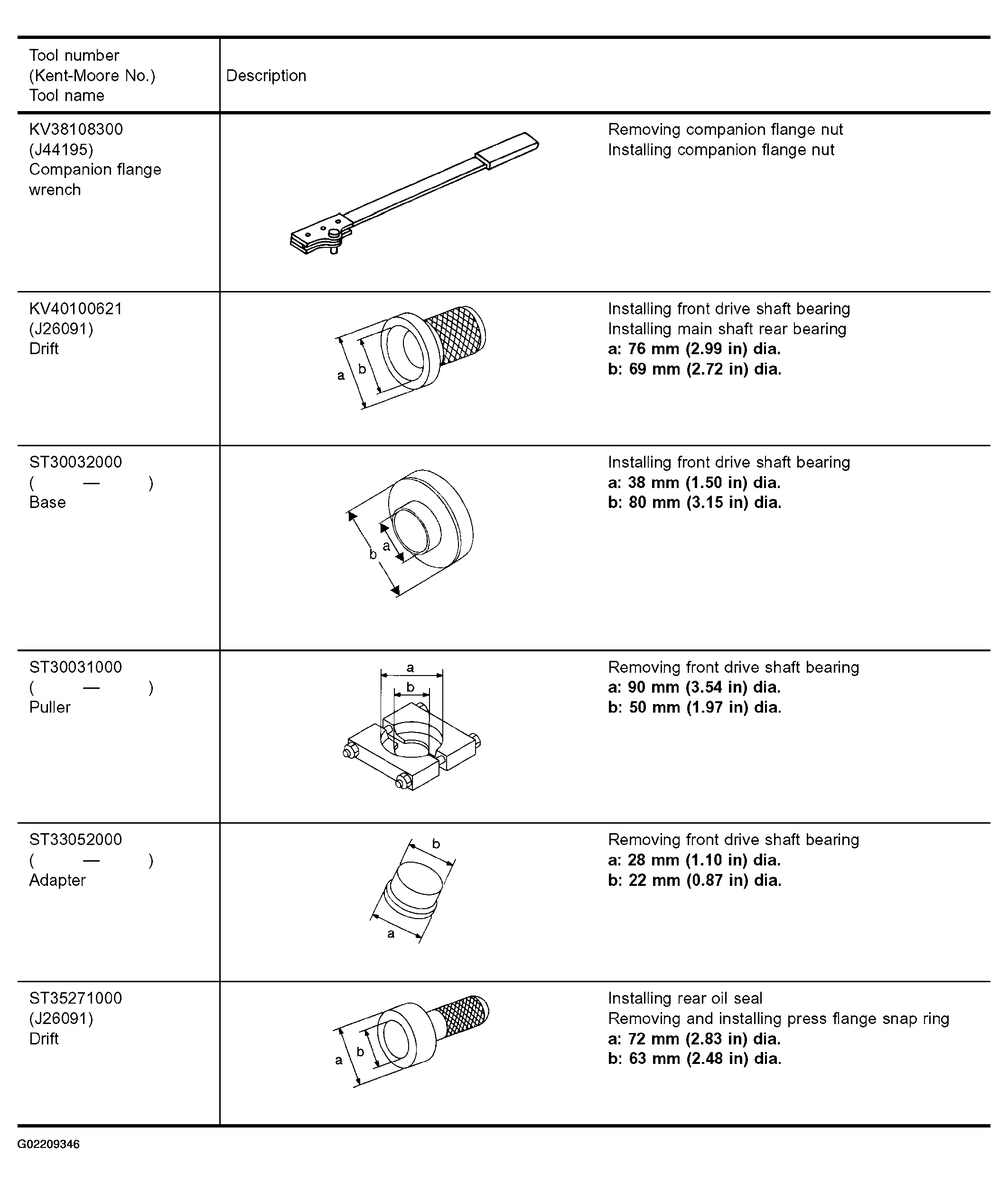

Fig 4: Identifying Special Service Tools (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Special Service Tools (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
