Service Data And Specifications (SDS)
›
Clutch
›
Return Spring
Return Spring

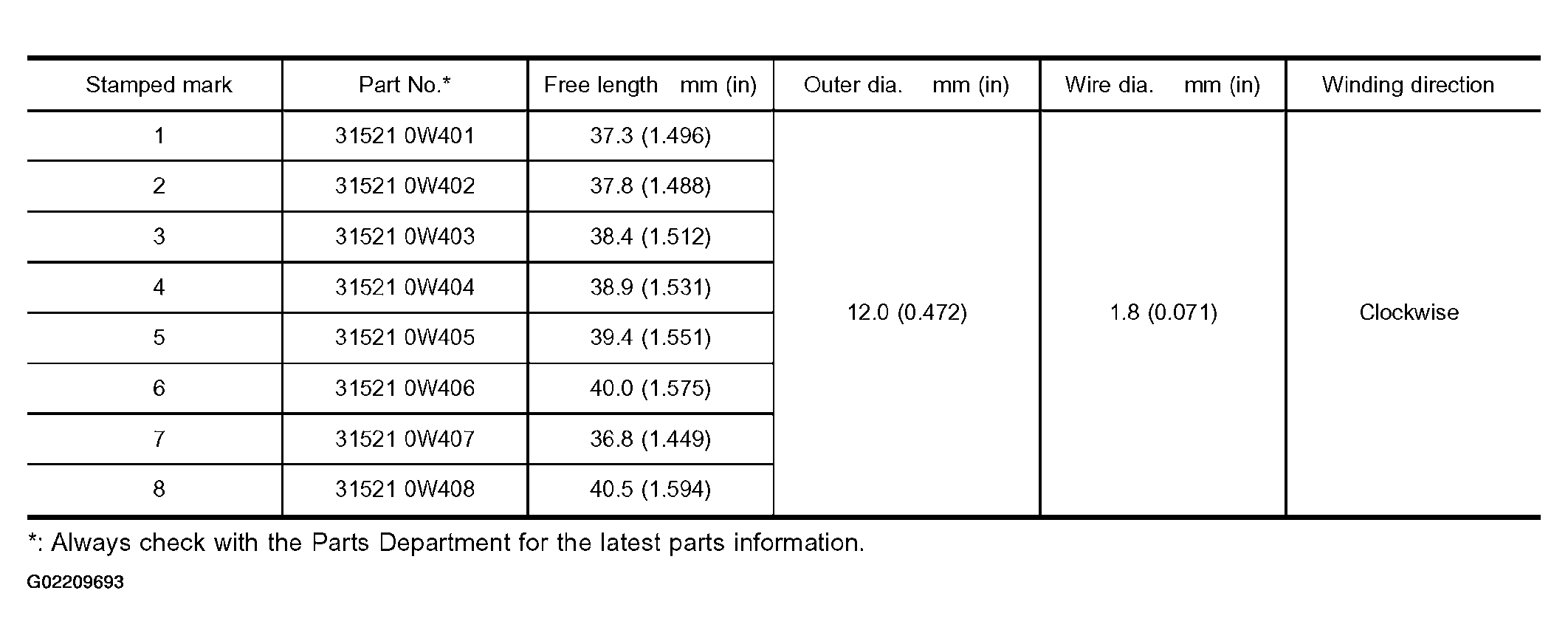

Fig 1: Clutch Return Spring Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
