Control Valve: Spring

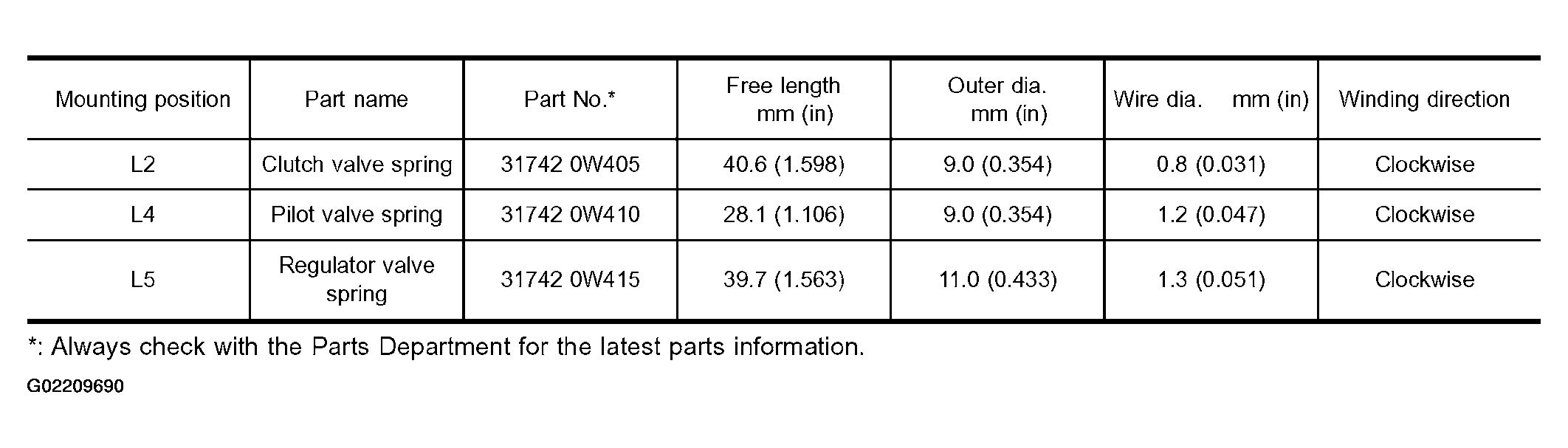

Fig 1: Control Valve Spring Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Control Valve Spring Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
