Home › Infiniti › 2003 › QX4 RWD › Repair and Diagnosis › Transmission › Transfer Case › Service Data And Specifications (SDS) › Control Valve › Valve

Control Valve: Valve

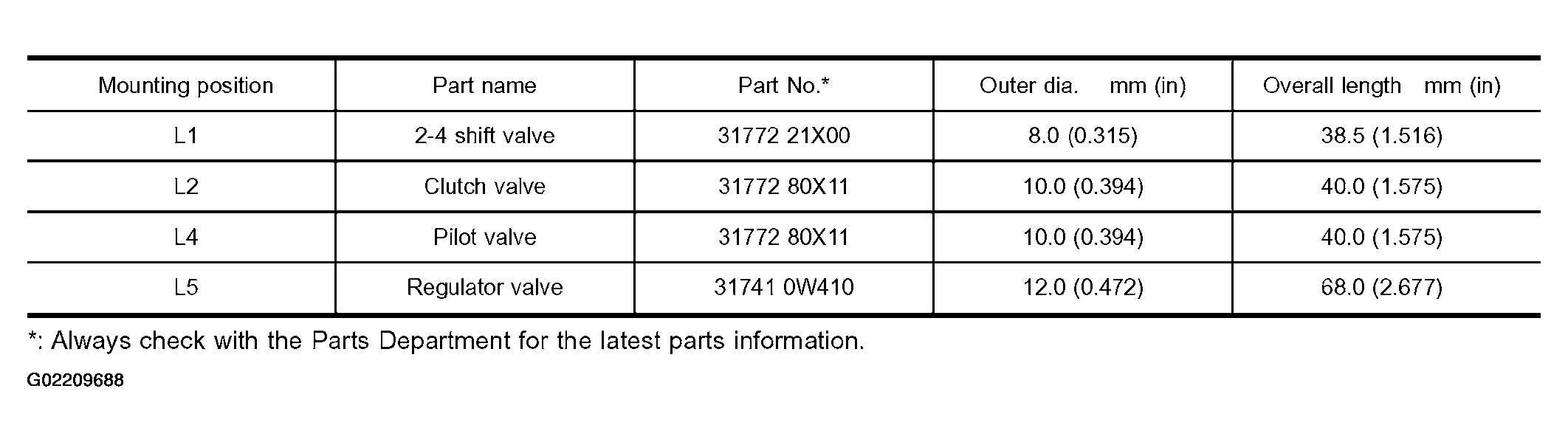

Fig 1: Control Valve Specifications
G02209688Courtesy of NISSAN MOTOR CO., U.S.A.
