Trouble Diagnosis - General Description
›
Transfer Control Unit Terminals And Reference Value
›
Inspection Of Transfer Control Unit
Inspection Of Transfer Control Unit
Measure voltage between each terminal and terminal 6 or 45 by following
TRANSFER CONTROL UNIT INSPECTION TABLE
.

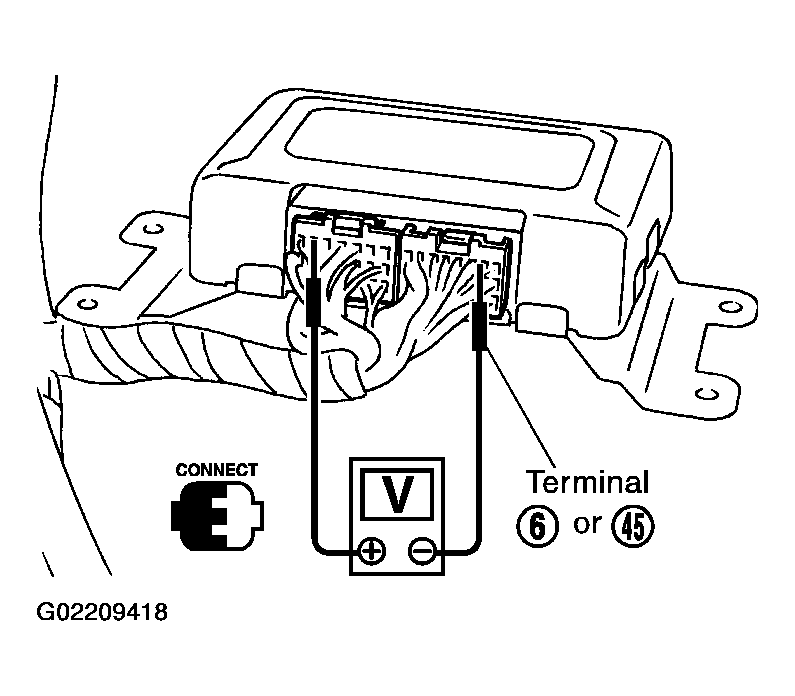

Fig 1: Inspecting Transfer Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

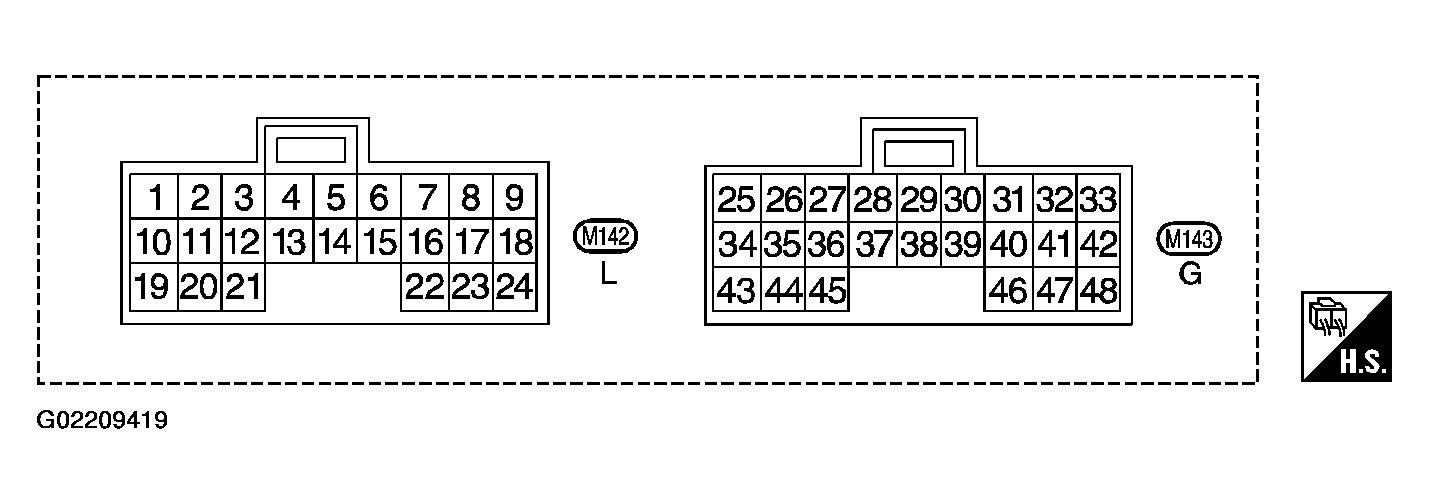

Pin connector terminal layout
Fig 2: Displaying Connectors Terminal Location
Courtesy of NISSAN MOTOR CO., U.S.A.
