Monitored Item

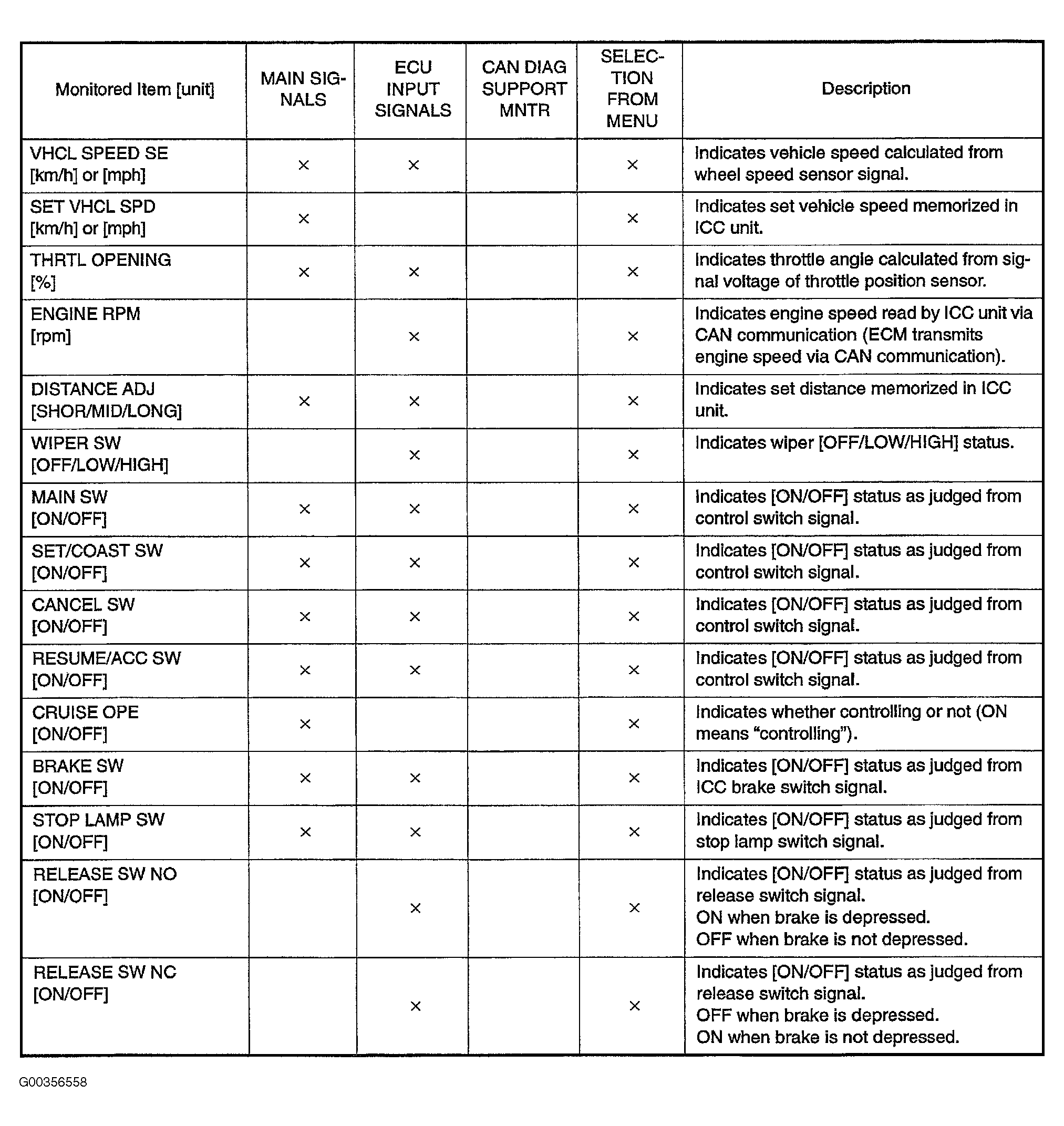

Fig 1: Identifying Monitored Item Chart (1 Of 3)

G00356558

Courtesy of NISSAN MOTOR CO., U.S.A.

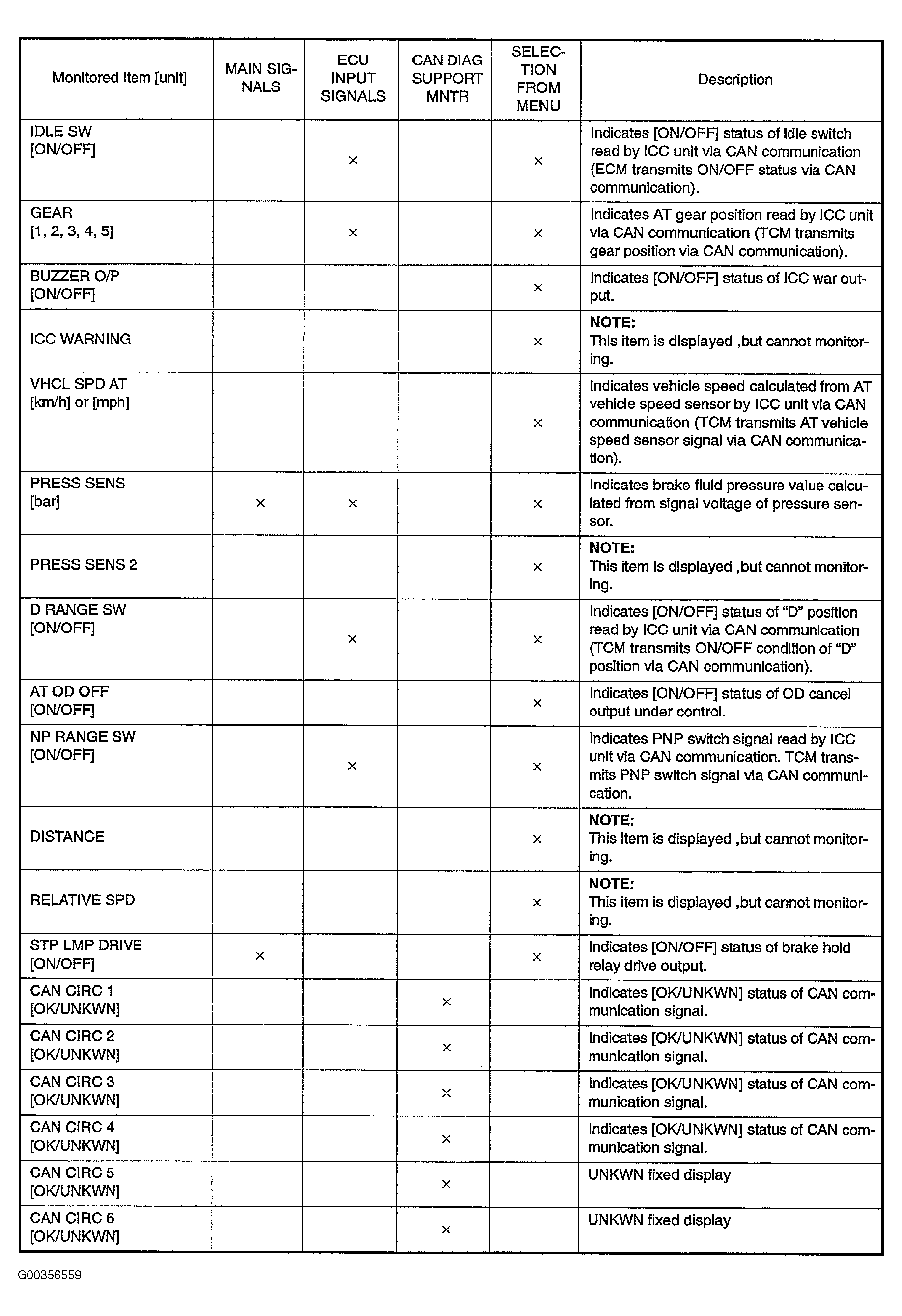

Fig 2: Identifying Monitored Item Chart (2 Of 3)

G00356559

Courtesy of NISSAN MOTOR CO., U.S.A.

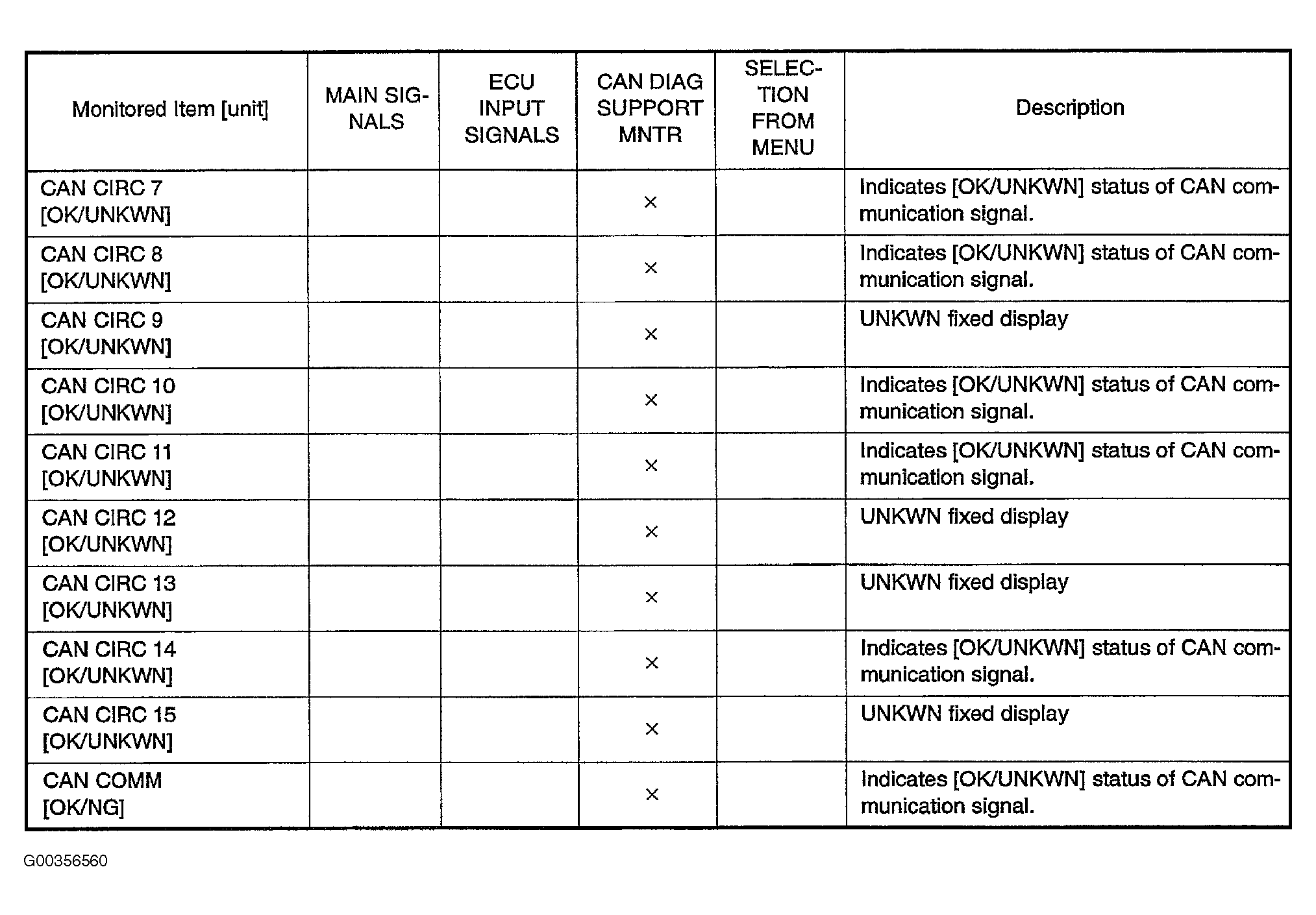

Fig 3: Identifying Monitored Item Chart (3 Of 3)

G00356560

Courtesy of NISSAN MOTOR CO., U.S.A.
