Remote Keyless Entry System
›
Remote Keyless Entry System
›
Consult-II Function
›
CONSULT-II Application Items
›
Data Monitor
Data Monitor

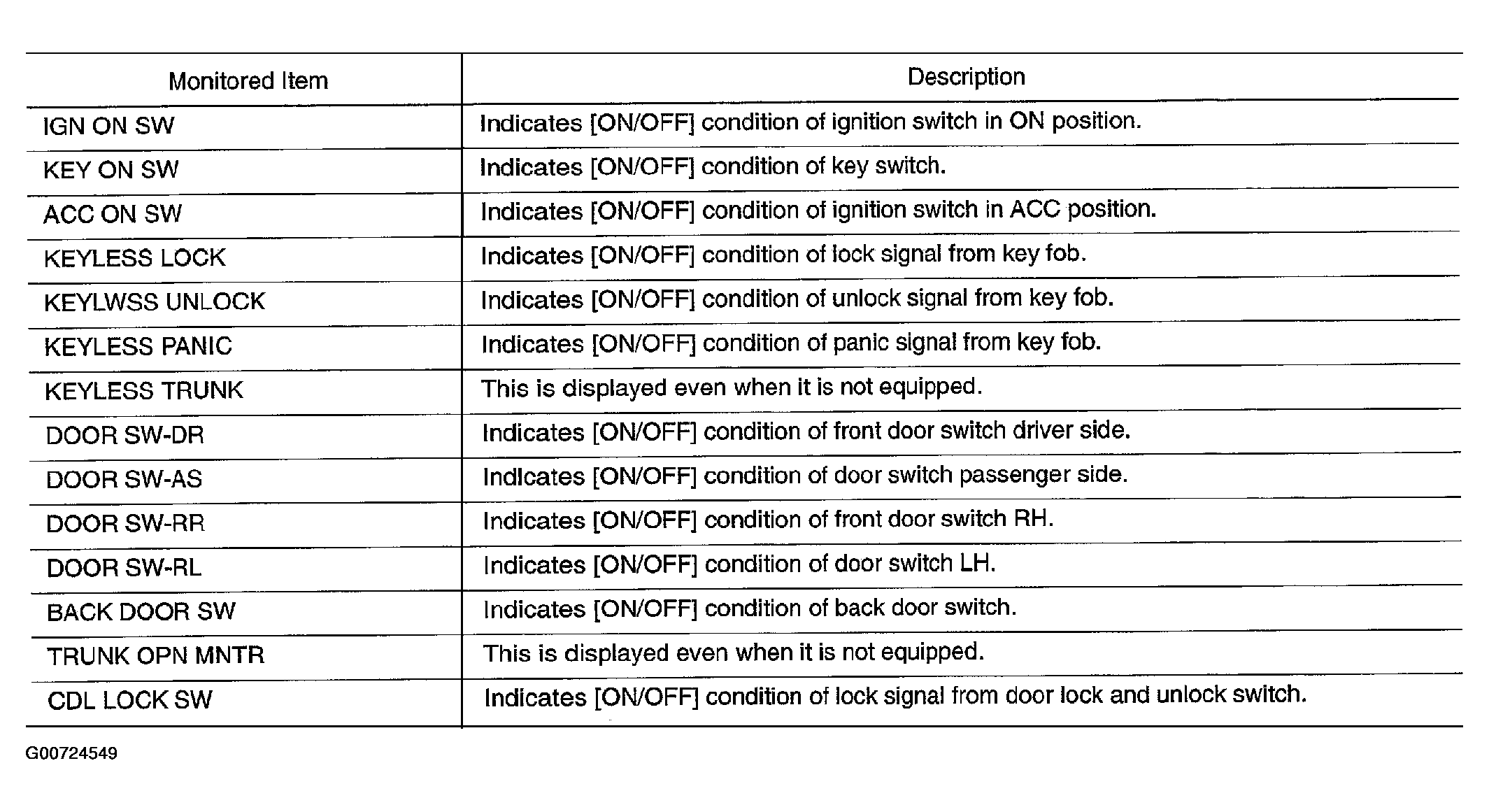

Fig 1: CONSULT-II Application Items Description Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

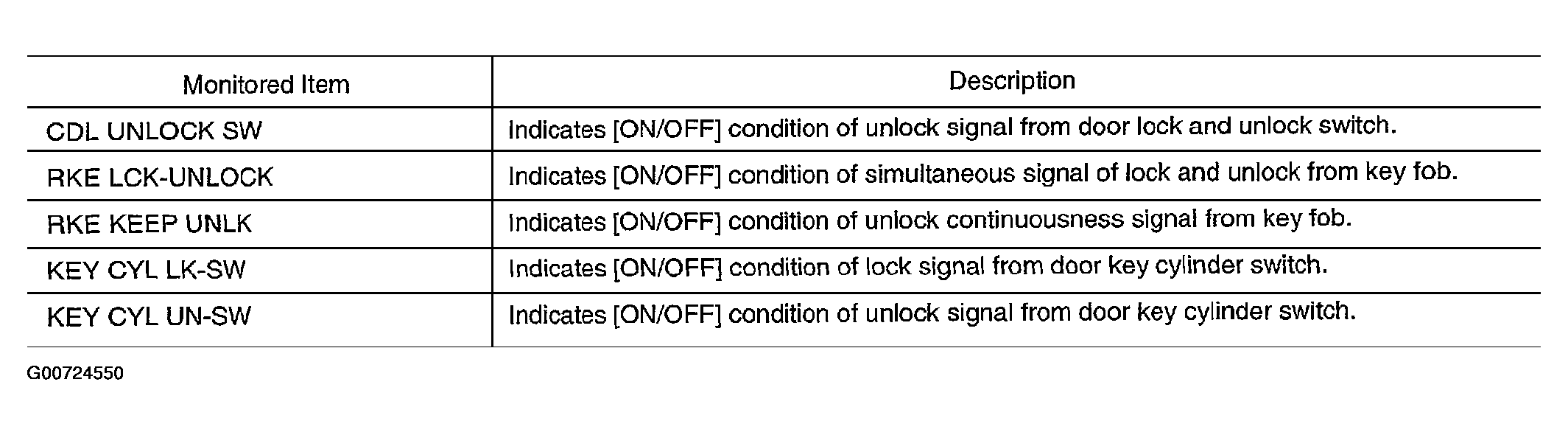

Fig 2: CONSULT-II Application Items Description Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
