Removal and Installation: Notes

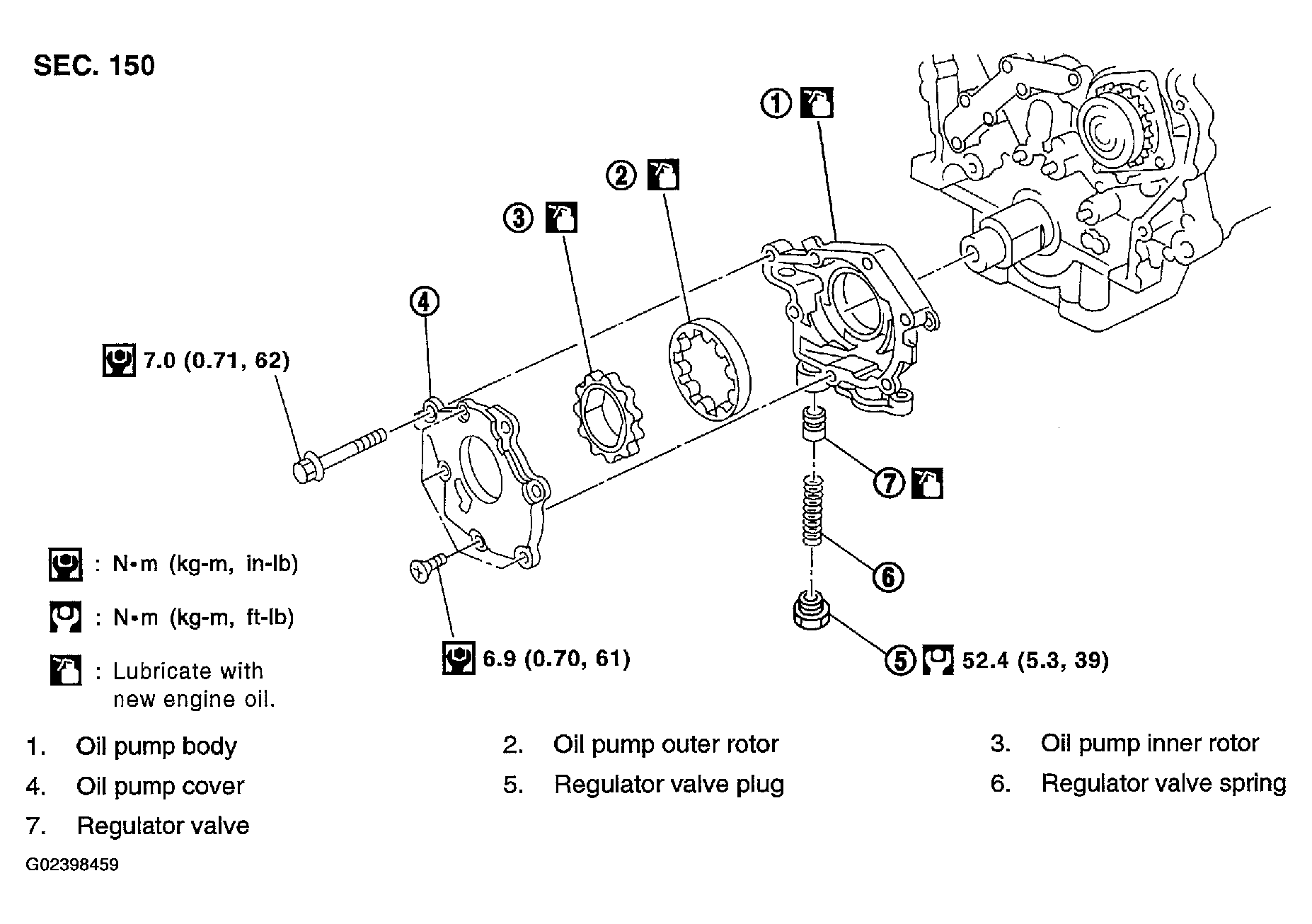

Fig 1: Identifying Oil Pump Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure.
