Freeze Frame Data and 1st Trip Freeze Frame Data

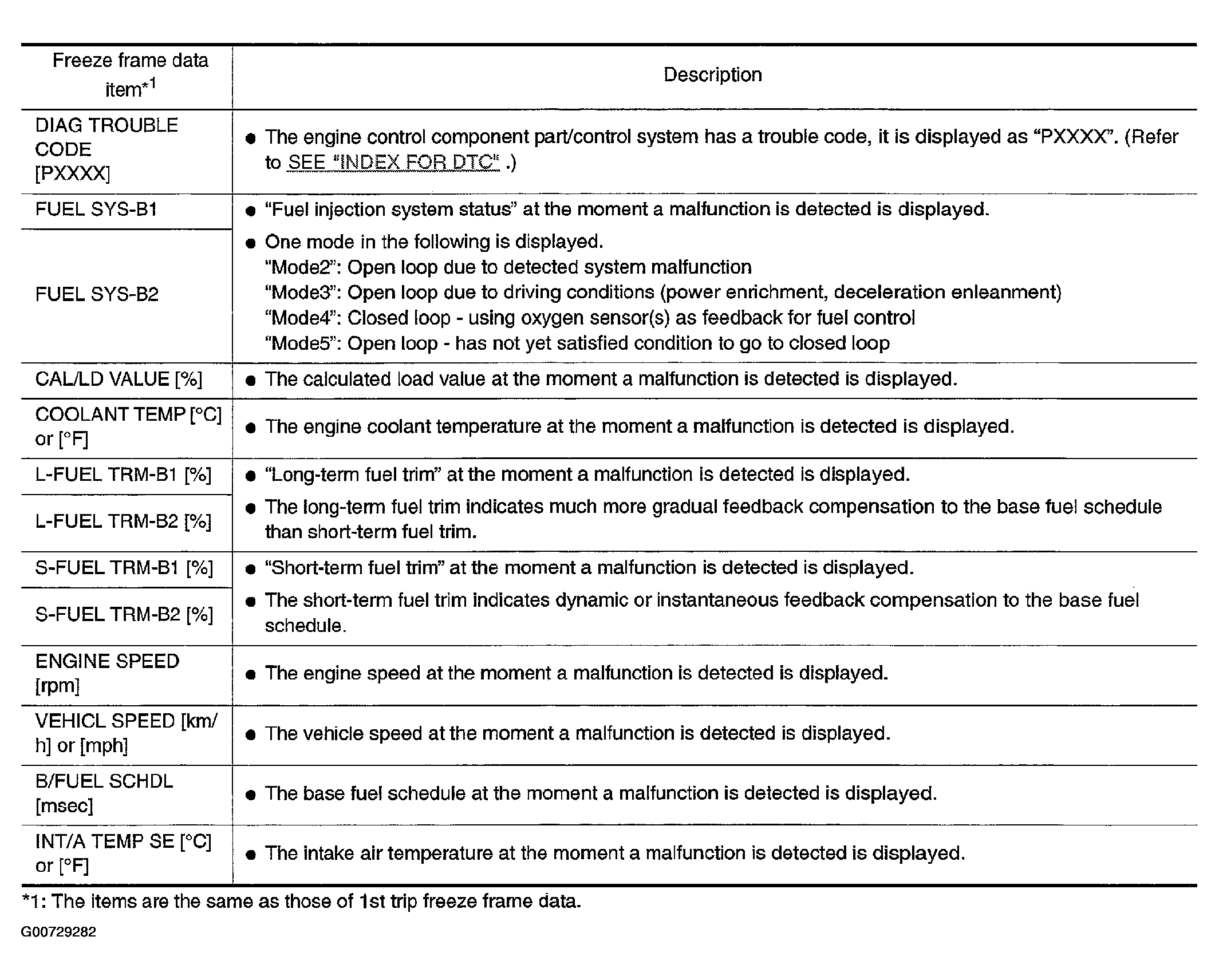

Fig 1: Describing 1ST Trip Freeze Frame Data Self Diagnostic Results
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
