Bank 1

NOTE: These are circuit specific wiring diagrams. For system wiring diagrams, see SYSTEM WIRING DIAGRAMS . For wiring diagram references to PG-POWER , see POWER DISTRIBUTION . For component locations, see ELECTRICAL COMPONENT LOCATOR .

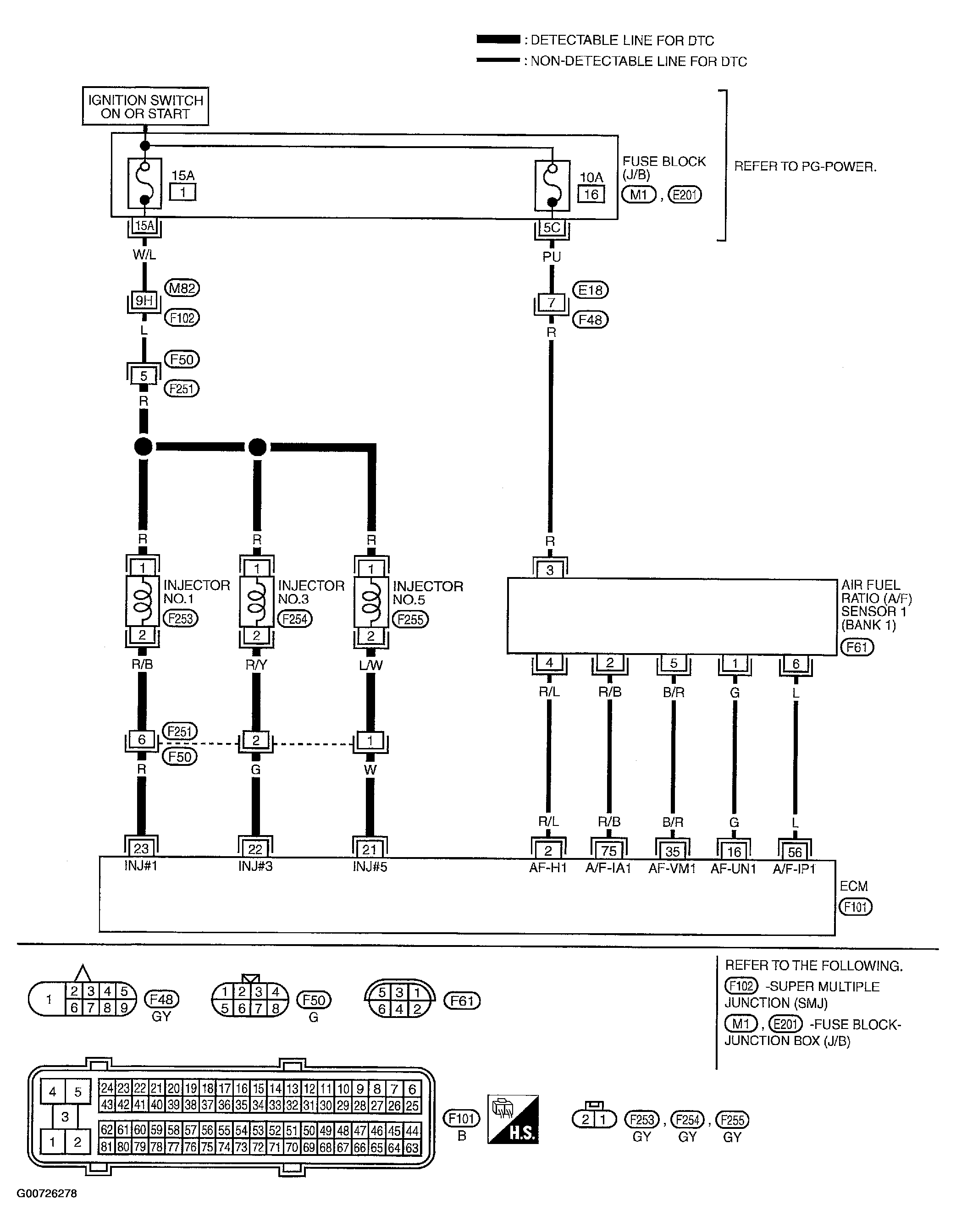

Fig 1: Heated Oxygen Sensor 1 Bank 1 Circuit (P0172 & P0175)

Courtesy of NISSAN MOTOR CO., U.S.A.
