On Board Diagnosis Logic

To judge the malfunction, the A/F signal computed by ECM from the air fuel ratio (A/F) sensor 1 signal is monitored not to be shifted LEAN side or RICH side.

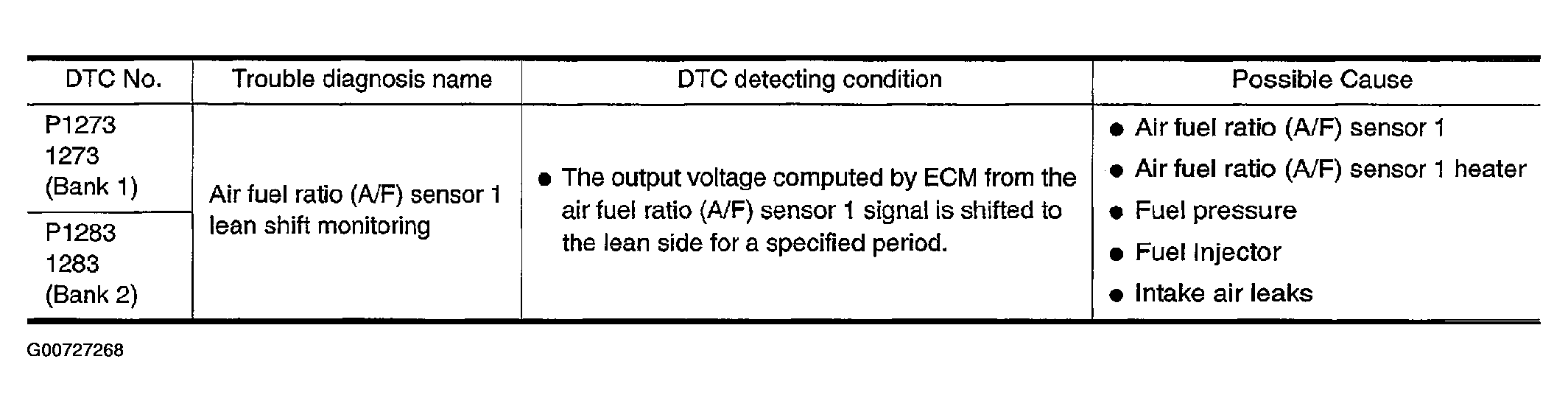

Fig 1: Identifying DTC P1273 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
