On Board Diagnosis Logic

• This self-diagnosis has the one trip detection logic  .
• The MIL will not light up for this self-diagnosis  .

NOTE: If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .

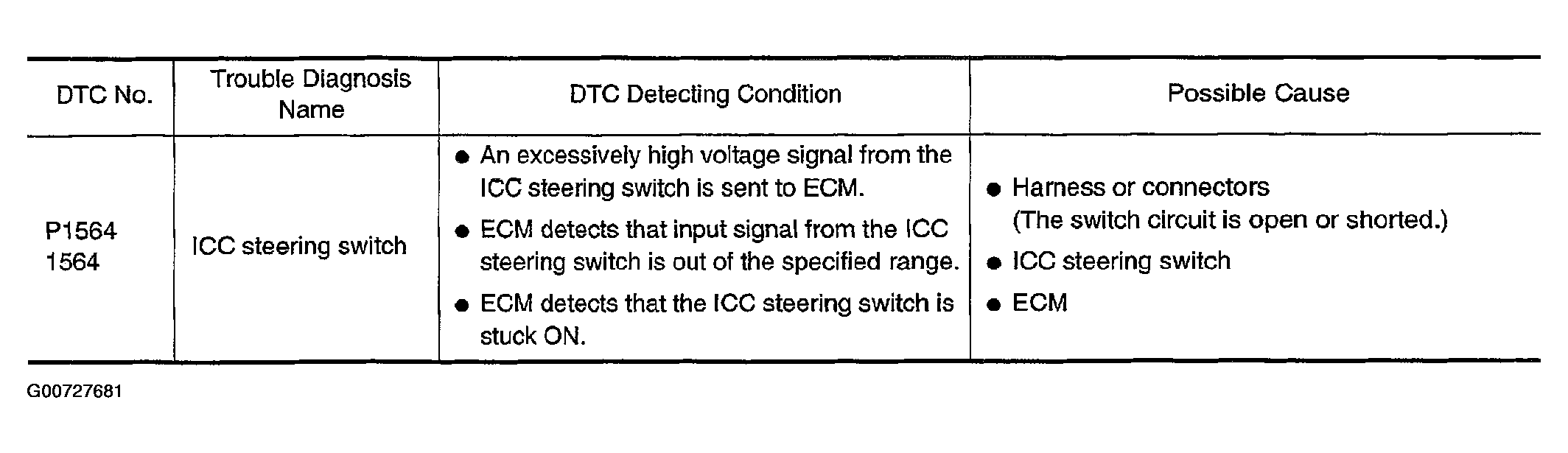

Fig 1: Identifying DTC P1564 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
