Evaporative Emission Line Drawing

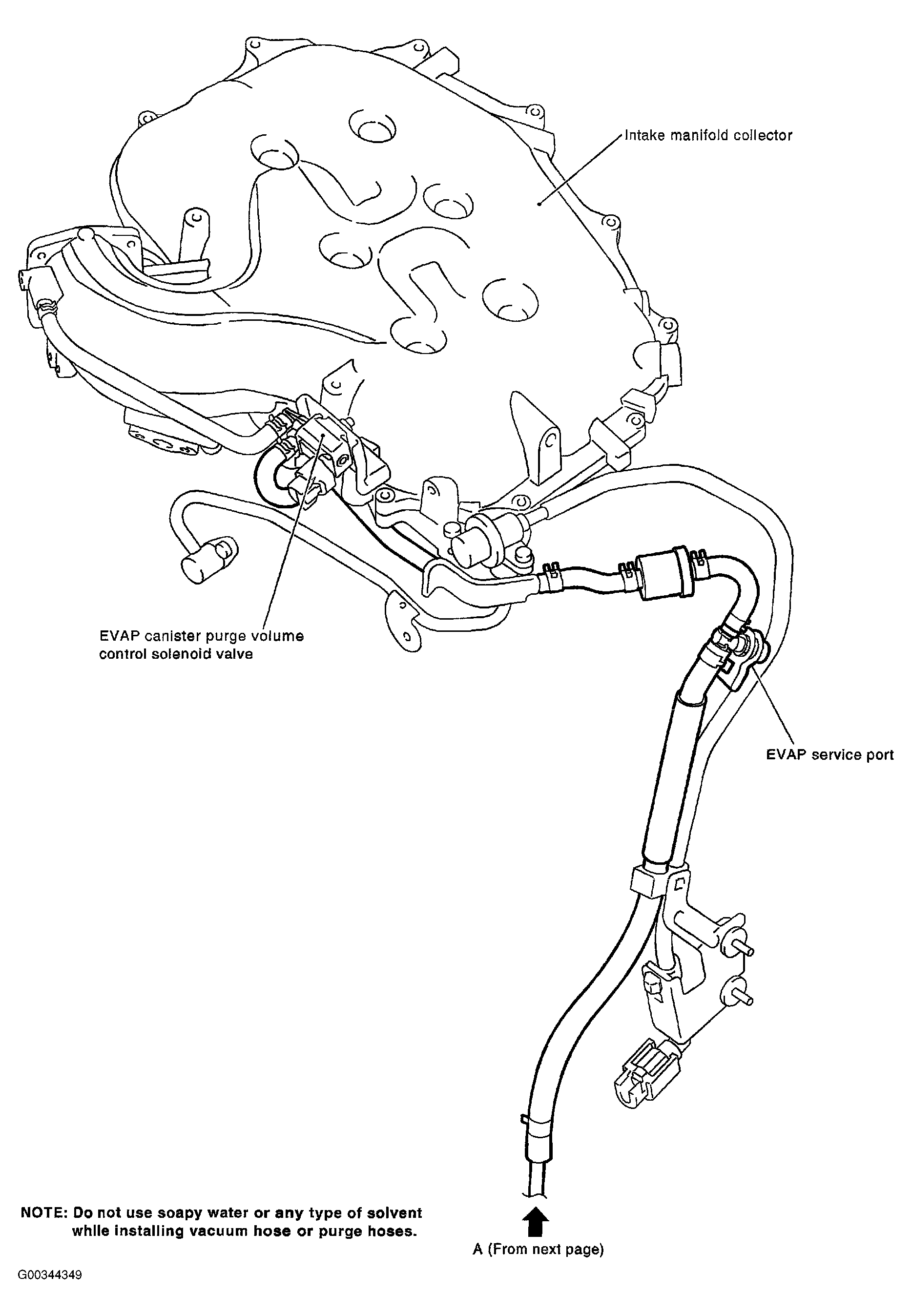

Fig 1: Identifying Evaporative Emission System Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

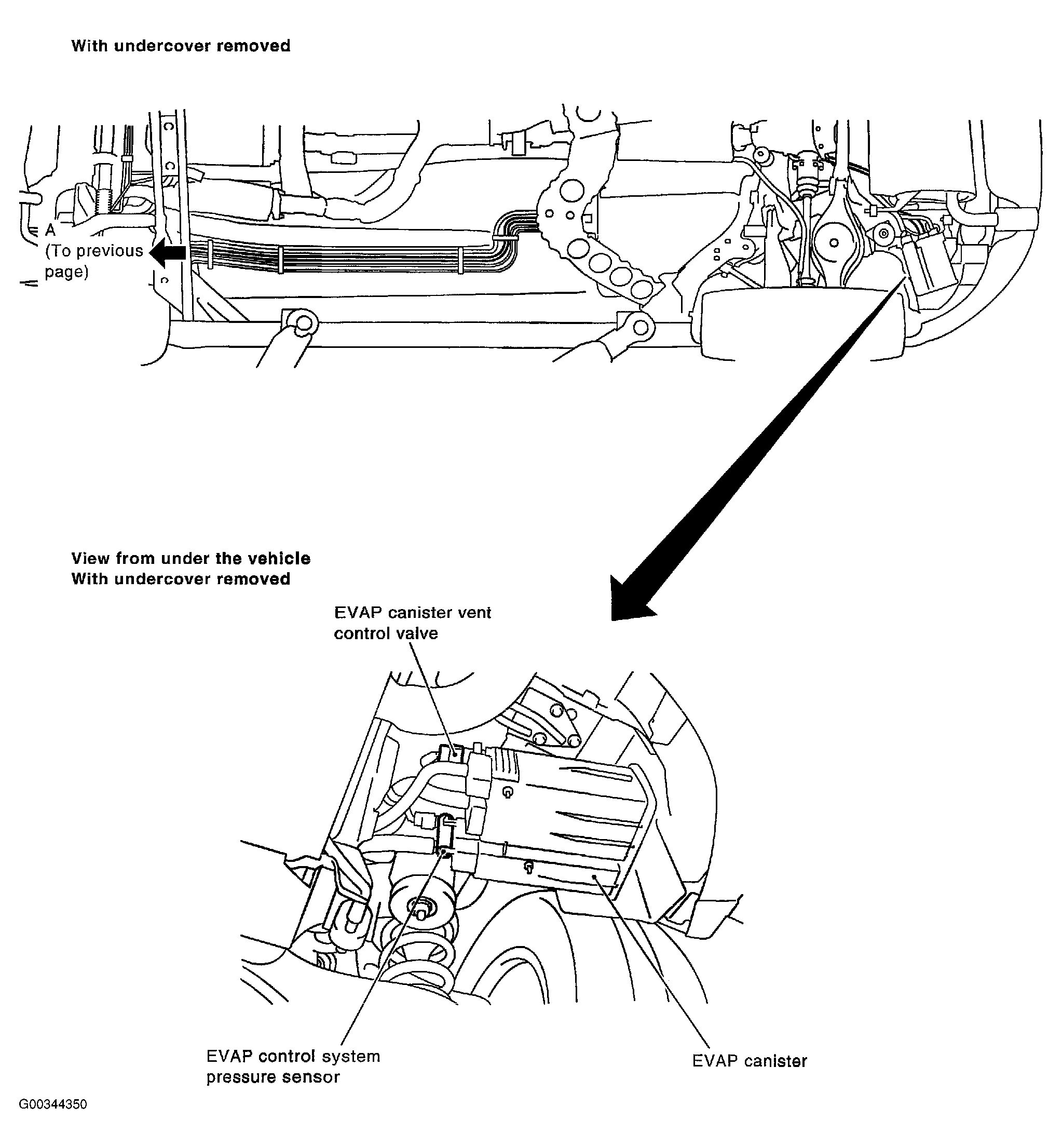

Fig 2: Identifying Evaporative Emission System Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
