Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.

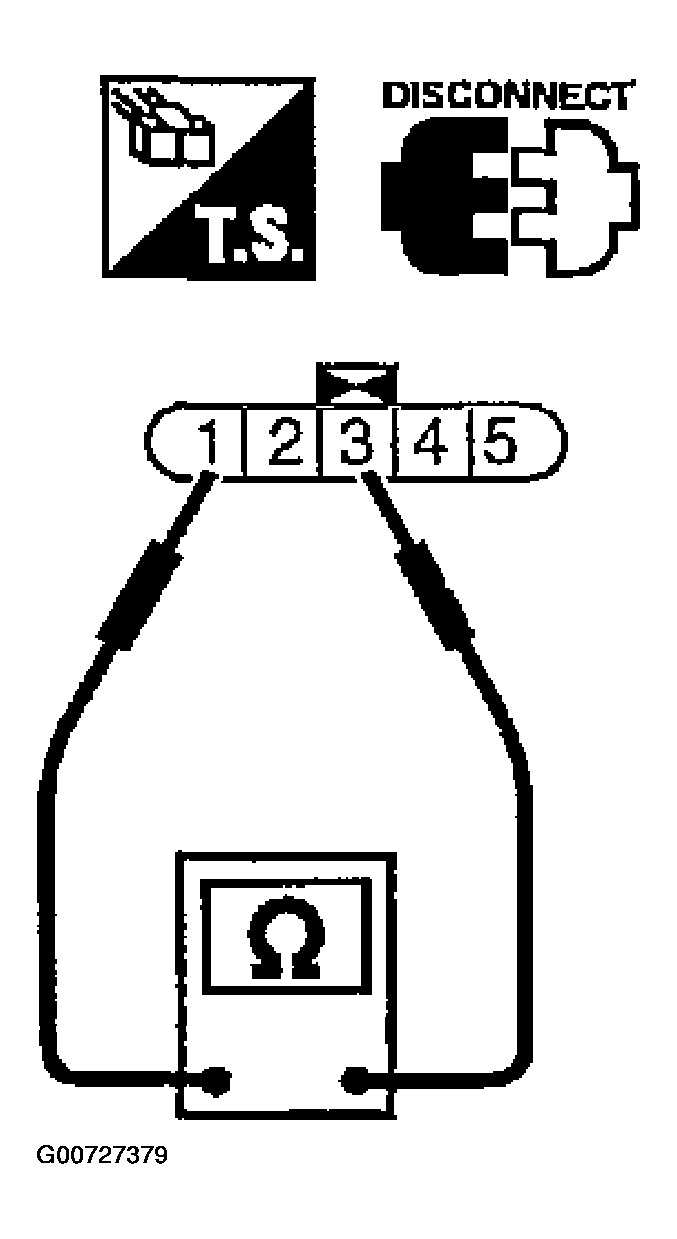

    Fig 1: Testing Internal Resistance Of Sensor & Pump
    G00727379Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Resistance: Approximately 1.0ohm [at 25° C (77° F)]
