ICC Brake Hold Relay

Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
Check continuity between relay terminals 3 and 4, 6 and 7 under the following conditions.

Fig 1: Identifying Relay Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

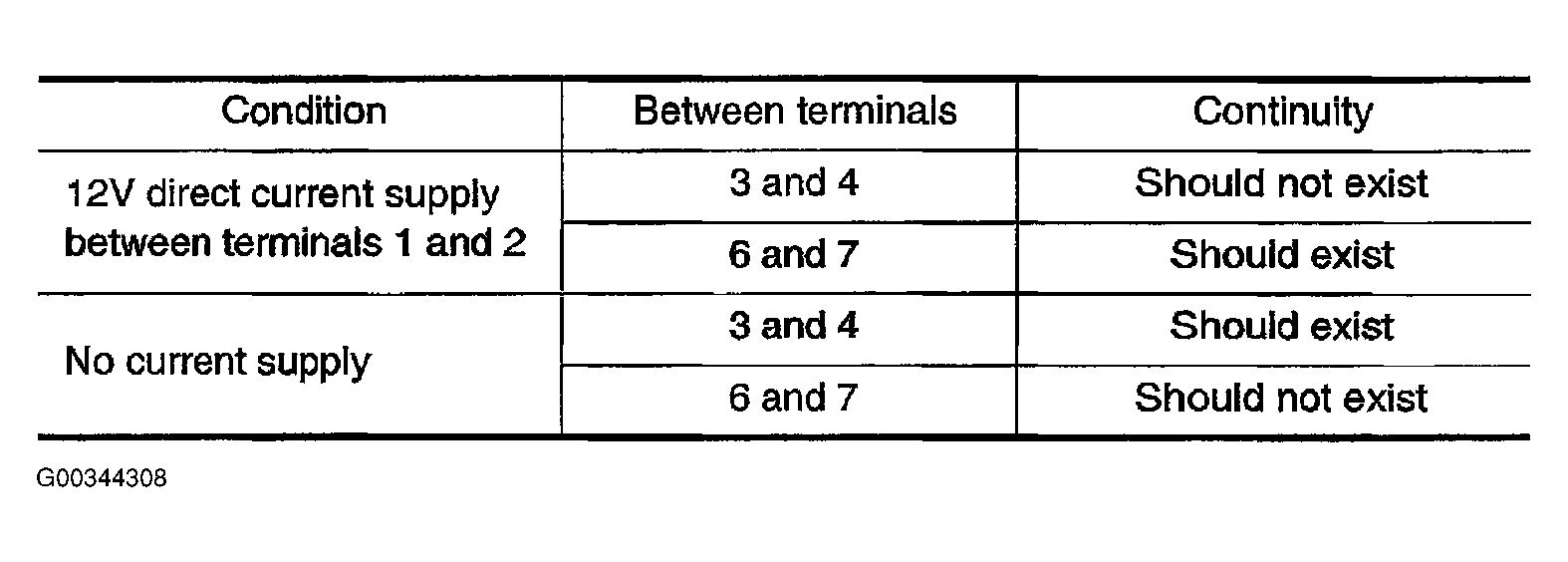

Fig 2: ICC Brake Hold Relay Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace ICC brake hold relay.
