Symptom Matrix Chart
›
System --- Engine Mechanical & Other
System --- Engine Mechanical & Other

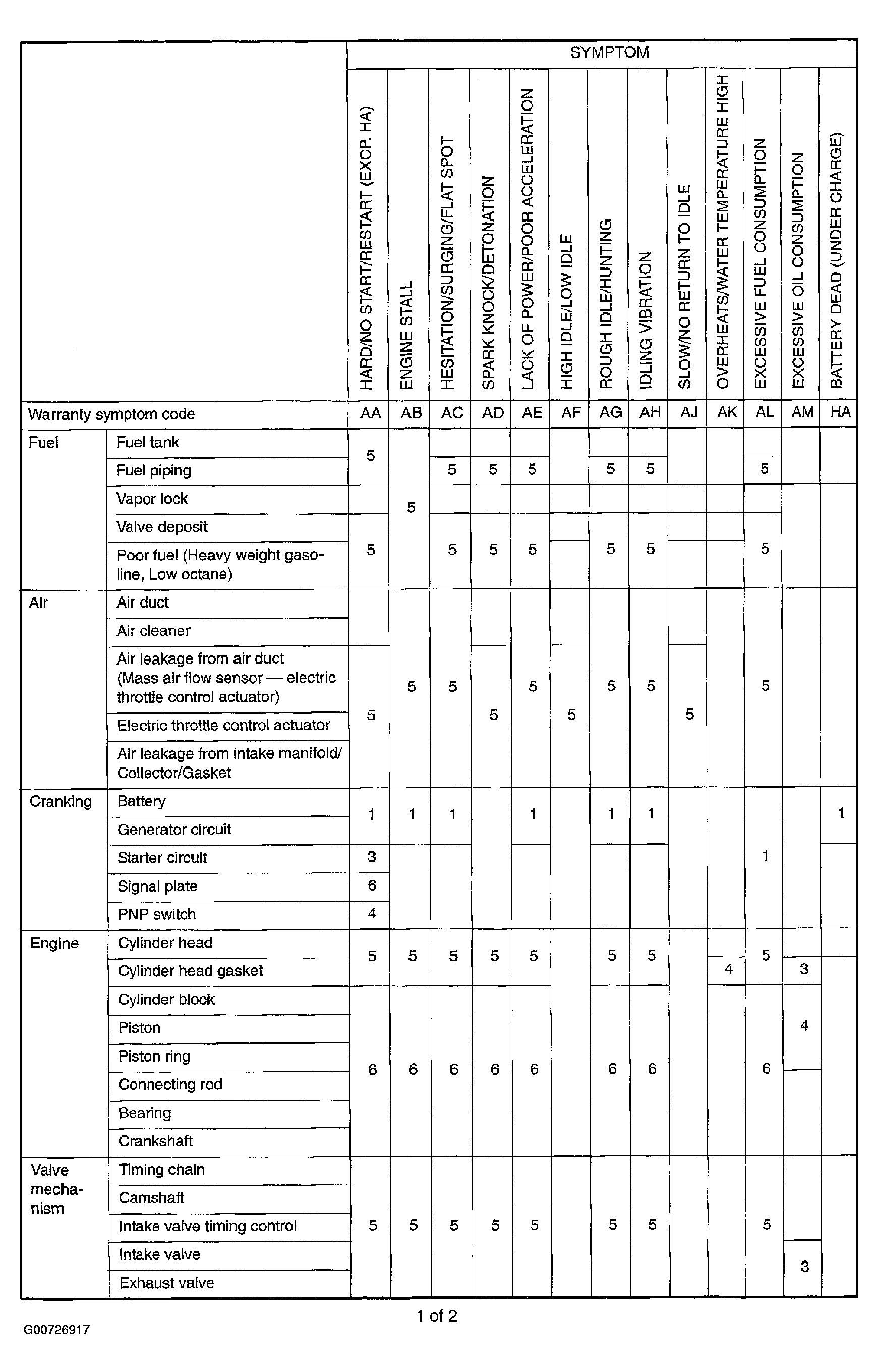

Fig 1: Isoltating Symptoms Matrix (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

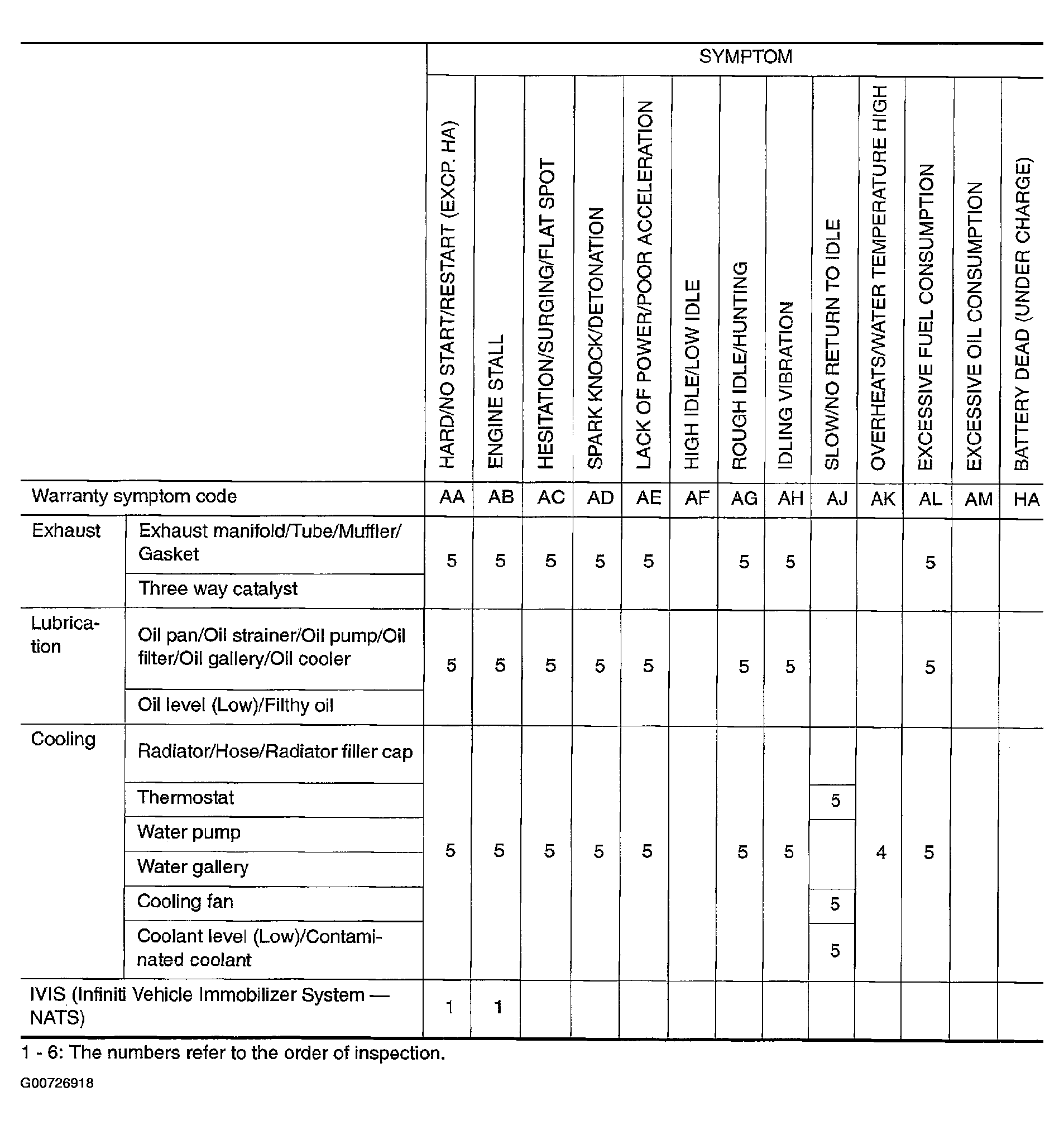

Fig 2: Isoltating Symptoms Matrix (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
