CAN Communication Line Check

CHECK MONITOR DESCRIPTION
1. Start display control unit self-diagnosis. Refer to "Self-Diagnosis Mode (DCU) "
2. Select "CAN DIAG SUPPORT MONITOR". Refer to "Can Diag Support Monitor ".

  Fig 1: CAN DIAG Support Monitor Description
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Displaying CAN DIAG Support Monitor
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet

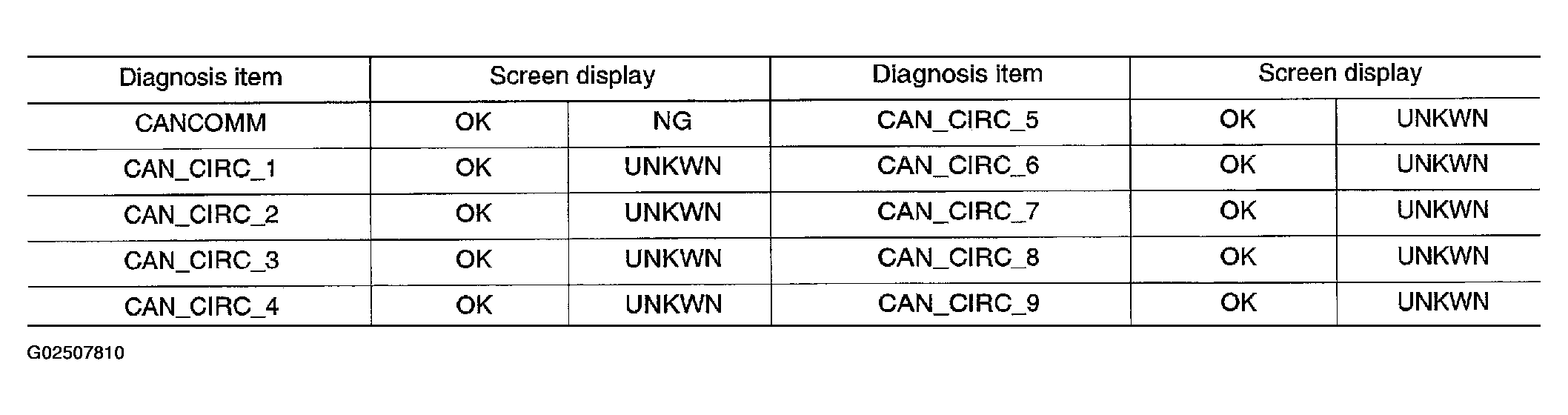

Fig 3: CAN DIAG Support Monitor Check Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
1. After filling in CAN DIAG SUPPORT MONITOR Check Sheet. Go to PRECAUTIONS WHEN USING CONSULT-II .
