3. Check Outside Key Antenna Circuit

1. Disconnect Intelligent Key unit connector.
2. Check continuity between each outside key antenna connector D2 (driver side), D32 (passenger side), D62 (rear door LH), D82 (rear door RH), D116 (back door) terminals 1, 2, 6, 7 and Intelligent Key unit connector M34 terminals 17, 18, 19, 20, 37, and 38.

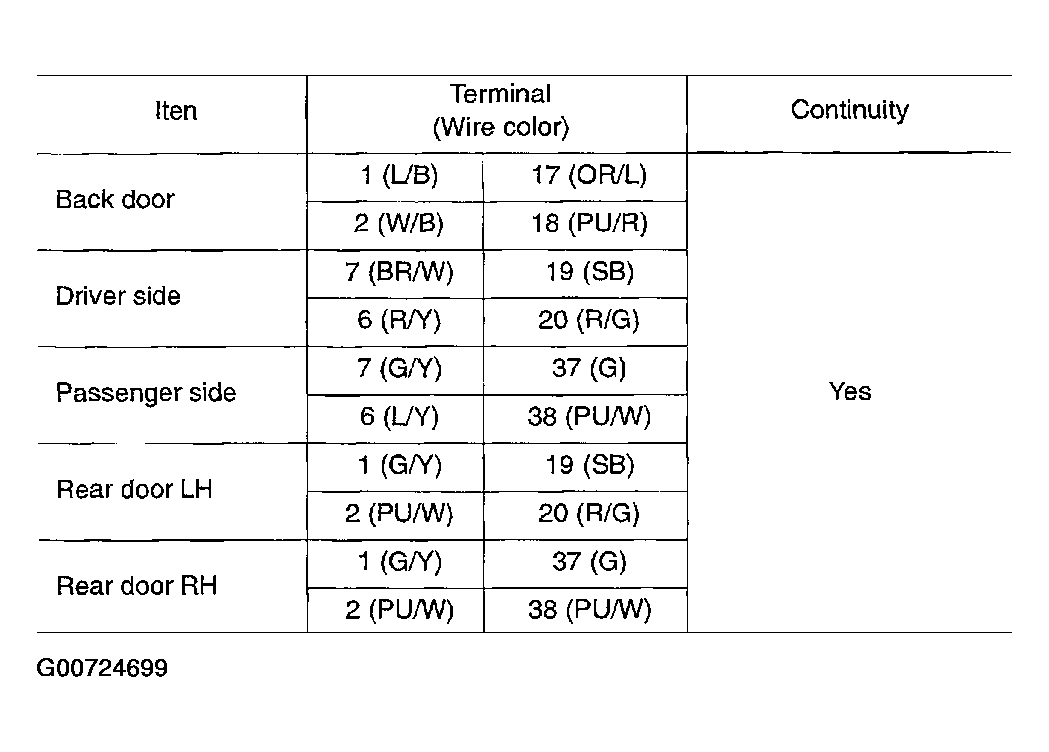

   Fig 1: Outside Key Antenna Connectors Continuity Table

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 2: Checking Continuity Between Outside Key Antenna Connectors And Intelligent Key Unit Connector M34 Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

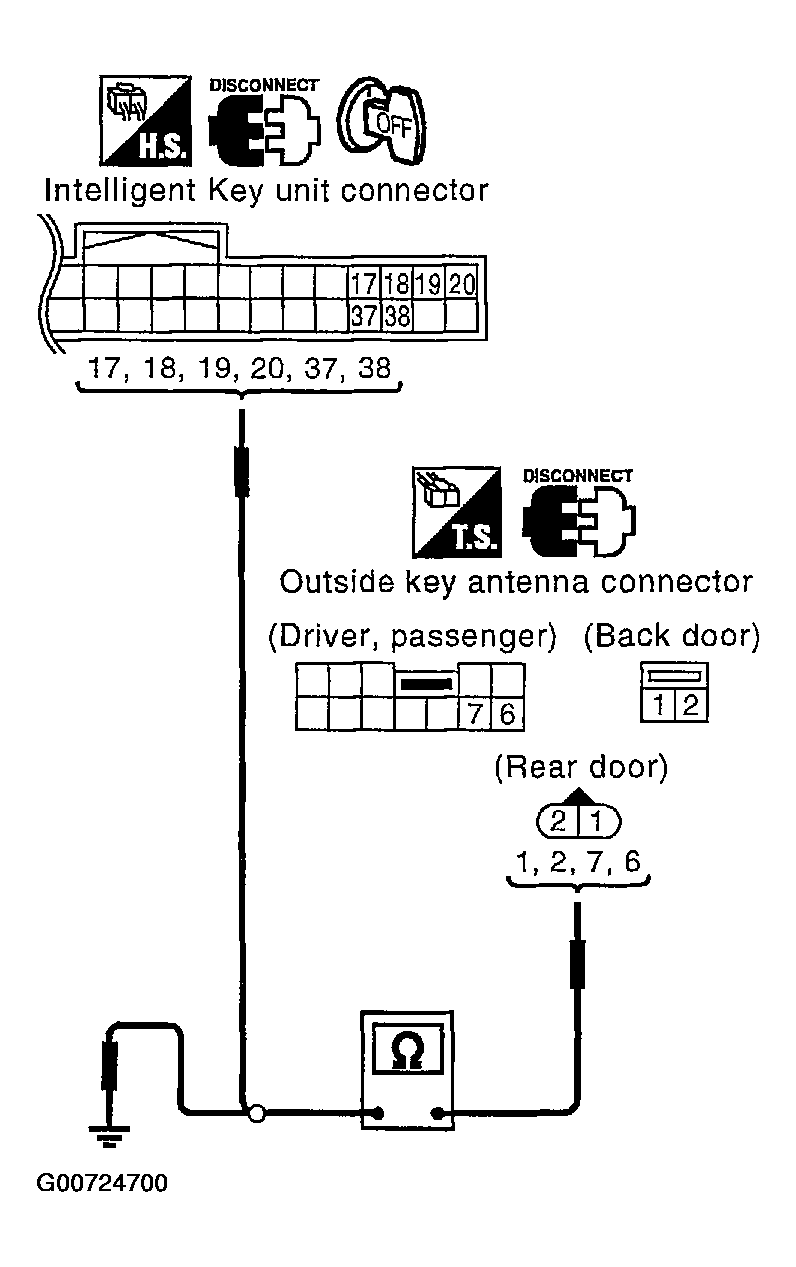

3. Check continuity between each out side key antenna connector terminals 1, 2, 6, 7 and ground.

Fig 3: Out Side Key Antenna Connector Terminals 1, 2, 6, 7 And Ground Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace Intelligent Key unit.

NG : Replace harness between outside key antenna and Intelligent Key unit.
