Intelligent Key System
›
Intelligent Key System
›
Trouble Diagnosis Symptom Chart
›
All Functions Of The Intelligent Key Are Not Operating
All Functions Of The Intelligent Key Are Not Operating

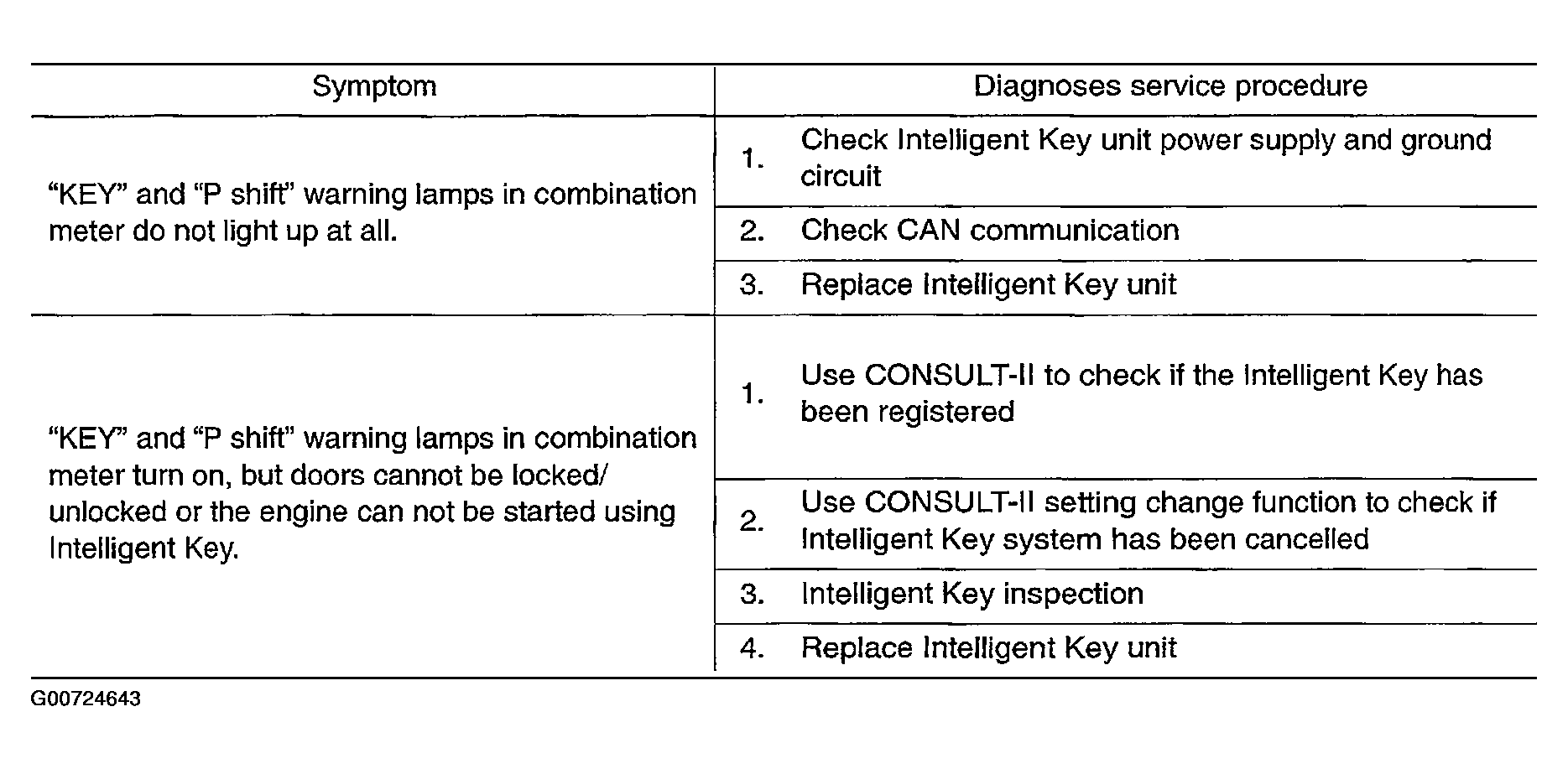

Fig 1: Trouble Diagnosis Symptom Chart - All Functions Of Intelligent Key Are Not Operating
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
