Power Door Lock System
›
Schematic/Without Intelligent Key
Schematic/Without Intelligent Key

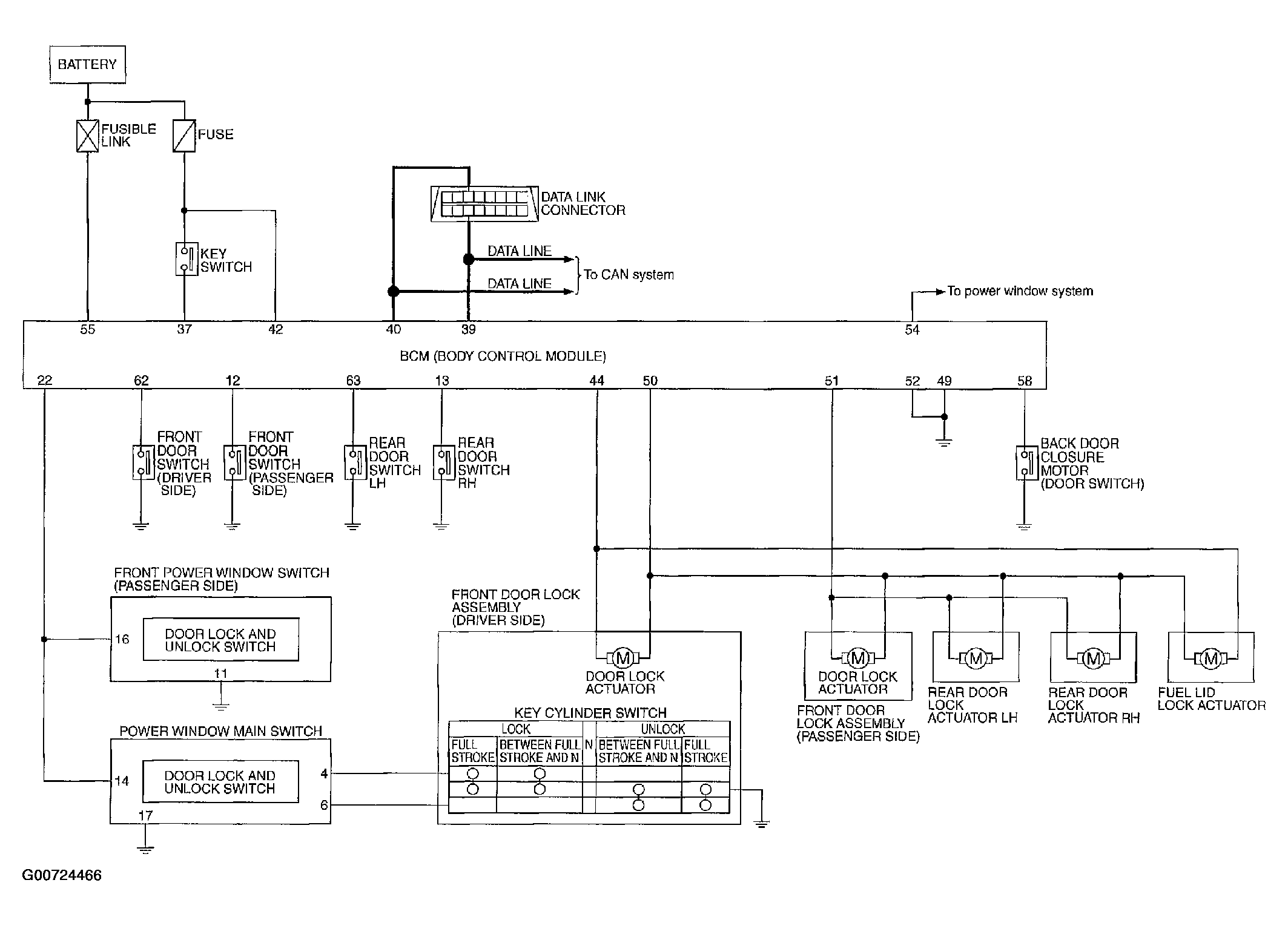

Fig 1: Schematic/Without Intelligent Key
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
