Remote Keyless Entry System
›
Terminals And Reference Value For IPDM E/R
Terminals And Reference Value For IPDM E/R

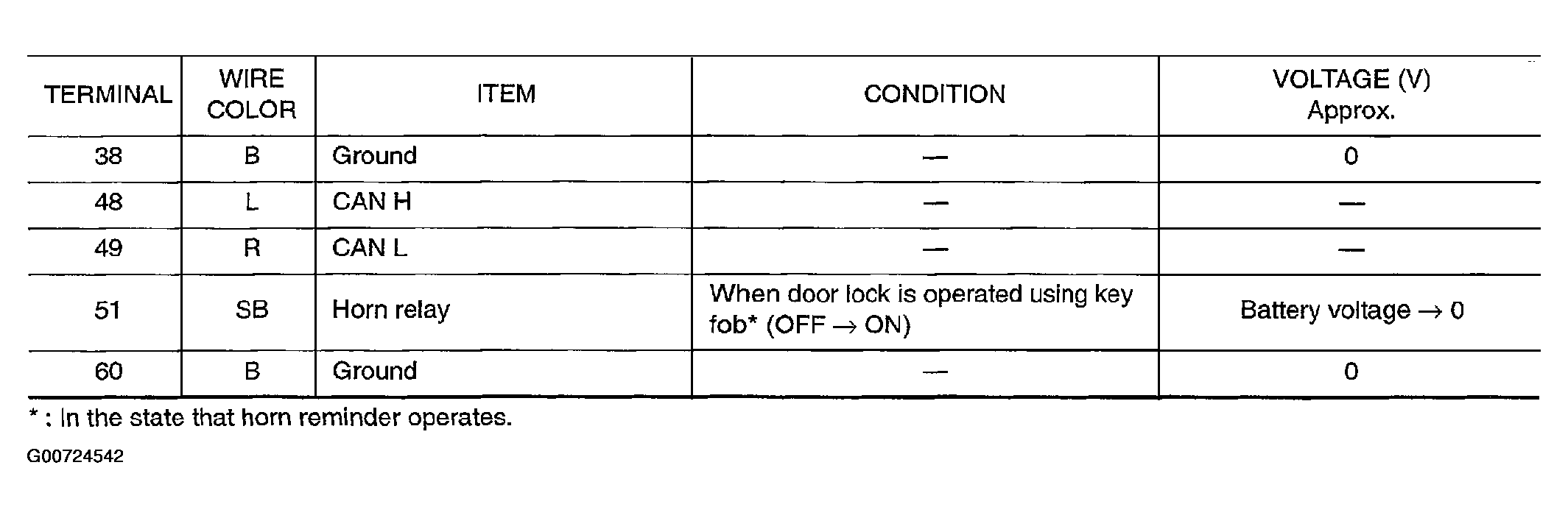

Fig 1: Terminals And Reference Value Table For IPDM E/R
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
