CONSULT-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

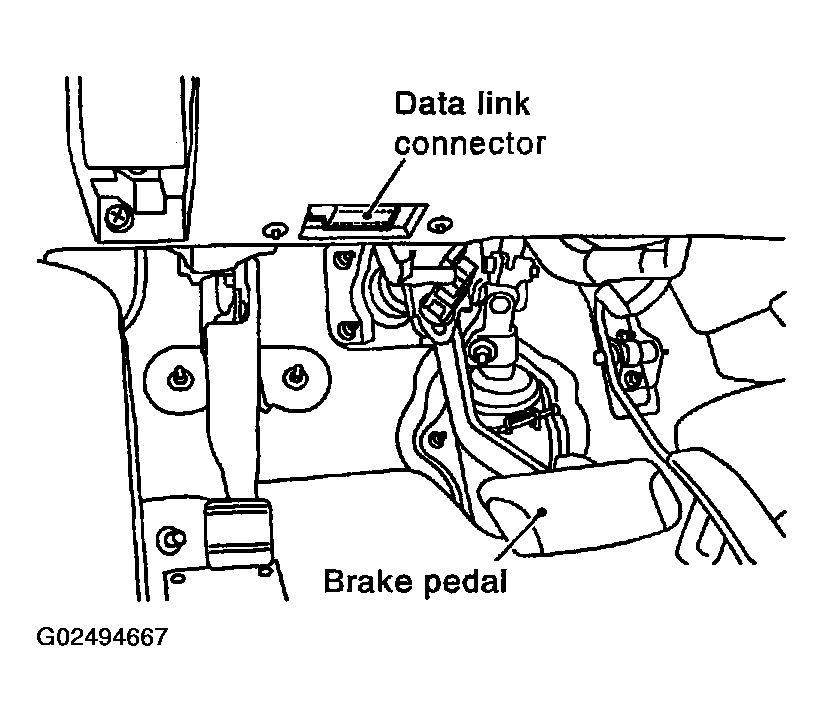

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying START CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "AUTO DRIVE POS" and "BCM".
If "AUTO DRIVE POS." is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Identifying SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST", "SELF-DIAG RESULTS", "ECU PART NUMBER" and "WORK SUPPORT" are available.

Fig 4: Identifying SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
