Memory Switch Operation

Selecting the memory

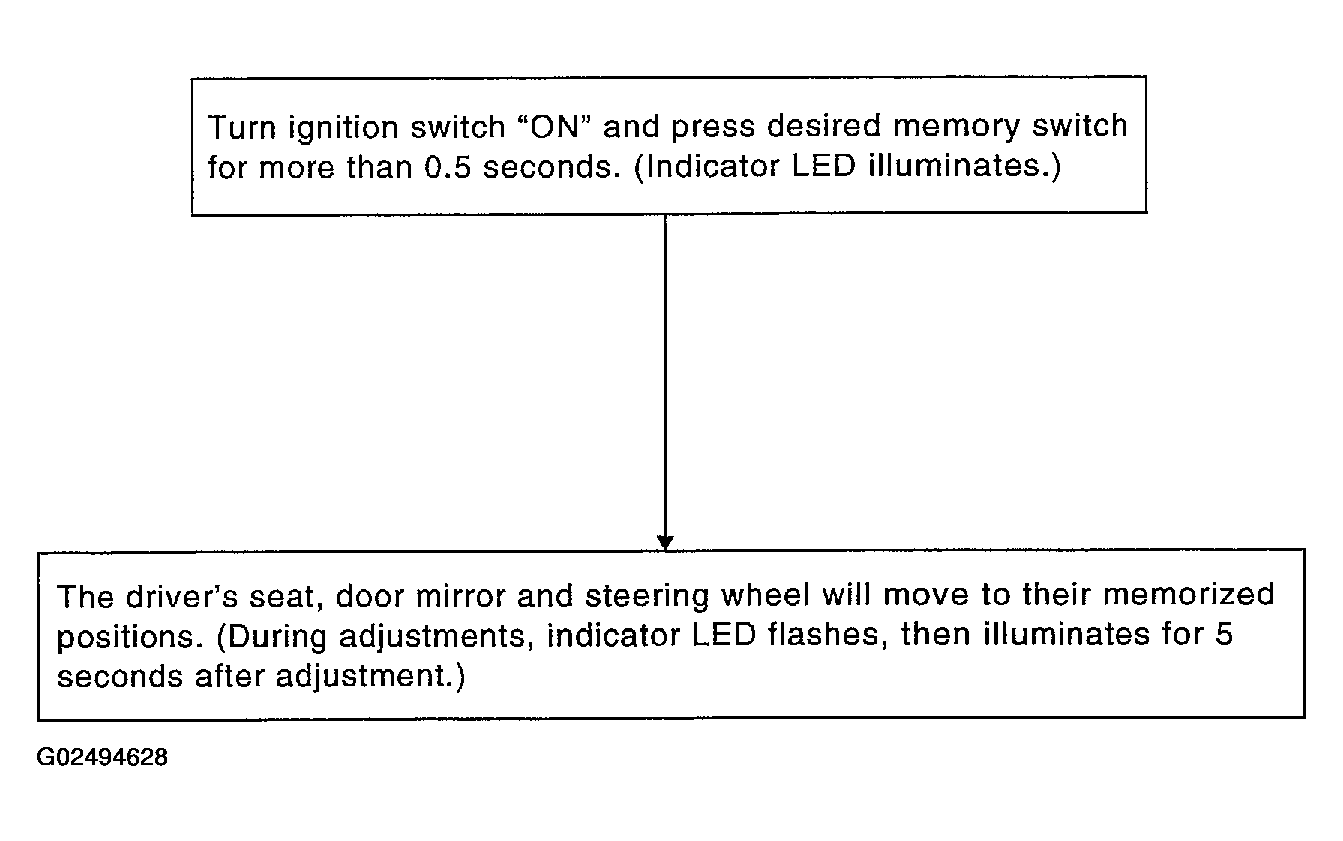

Fig 1: Displaying Memory Switch Operation Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The driver's seat position and steering adjustment functions (see PRIORITY FUNCTION table) operate simultaneously in the order of priority.

PRIORITY FUNCTION

Priority

Function

⁽¹⁾ Seat sliding, door mirror LH/RH

Steering wheel telescoping

Steering wheel tilt

Seat reclining

Seat lifter-FR

Seat lifter-RR

⁽¹⁾	In conjunction with sliding the seat, the door mirrors are positioned.
