Engine Control Component Parts/Control Systems Application

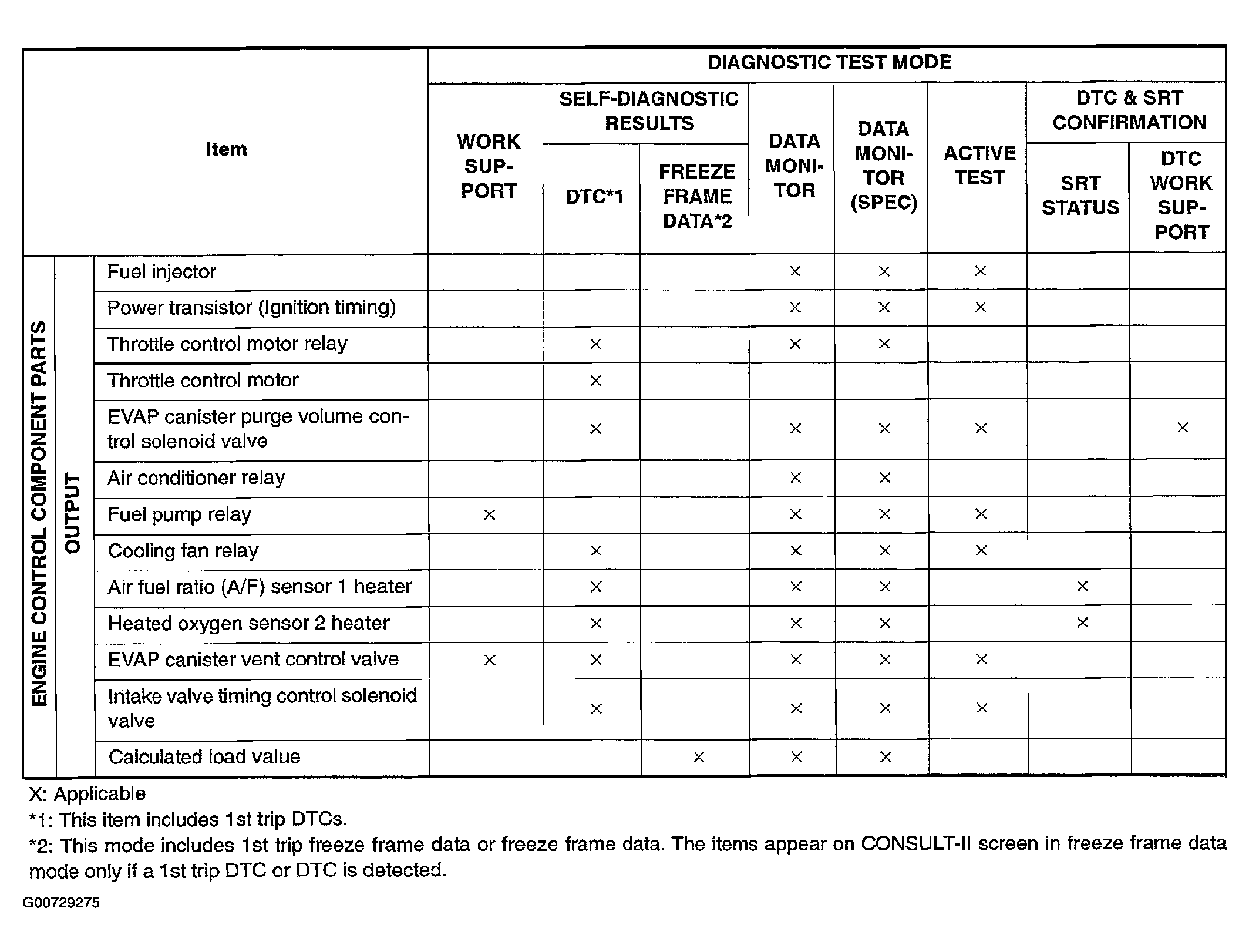

Fig 1: Determining Engine Control Components Effect On Diagnostic Test Modes (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

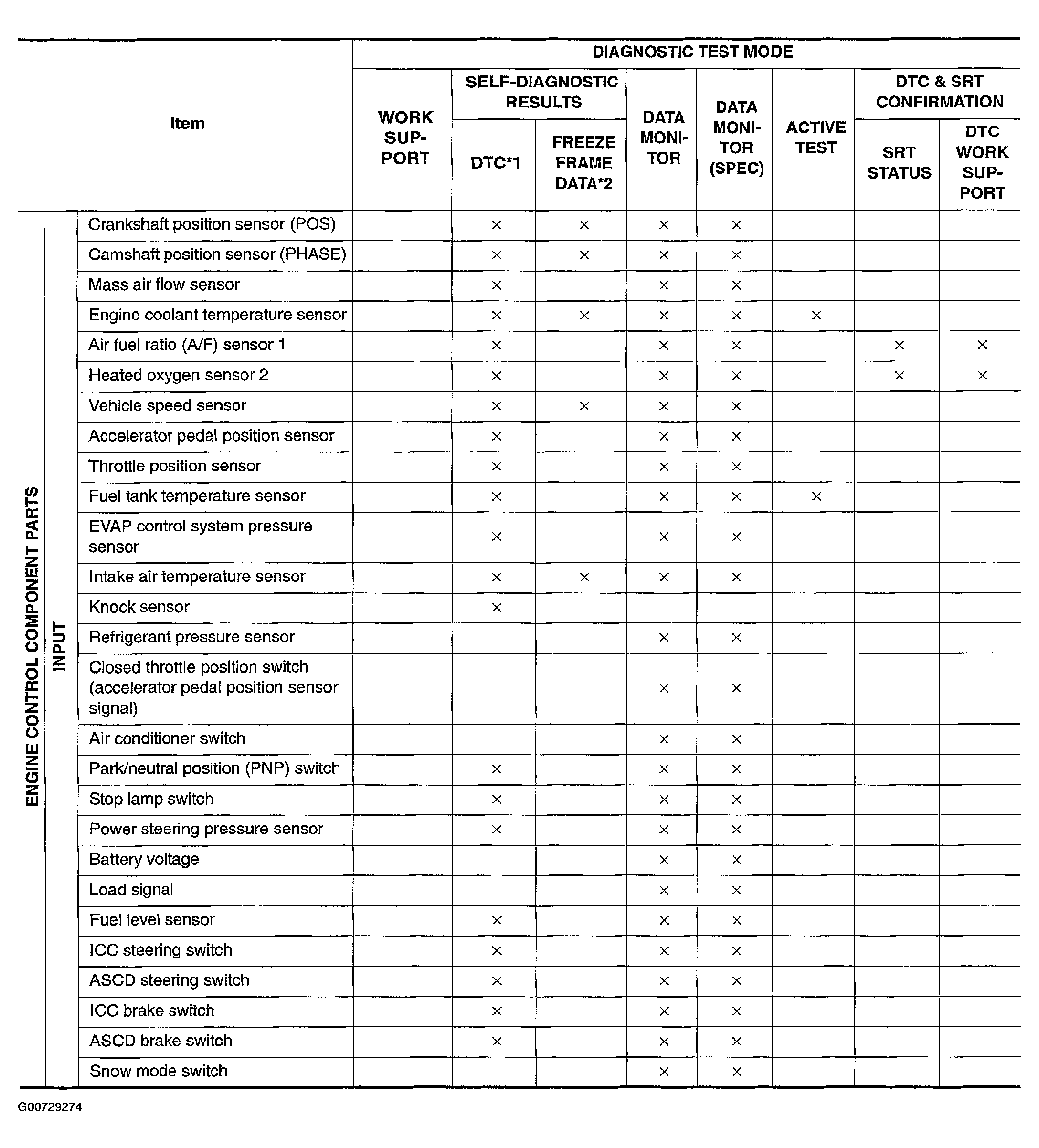

Fig 2: Determining Engine Control Components Effect On Diagnostic Test Modes (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
