Intelligent Key System
›
Intelligent Key System
›
System Description
›
Warning And Alarm Function
›
Operation Condition
Operation Condition

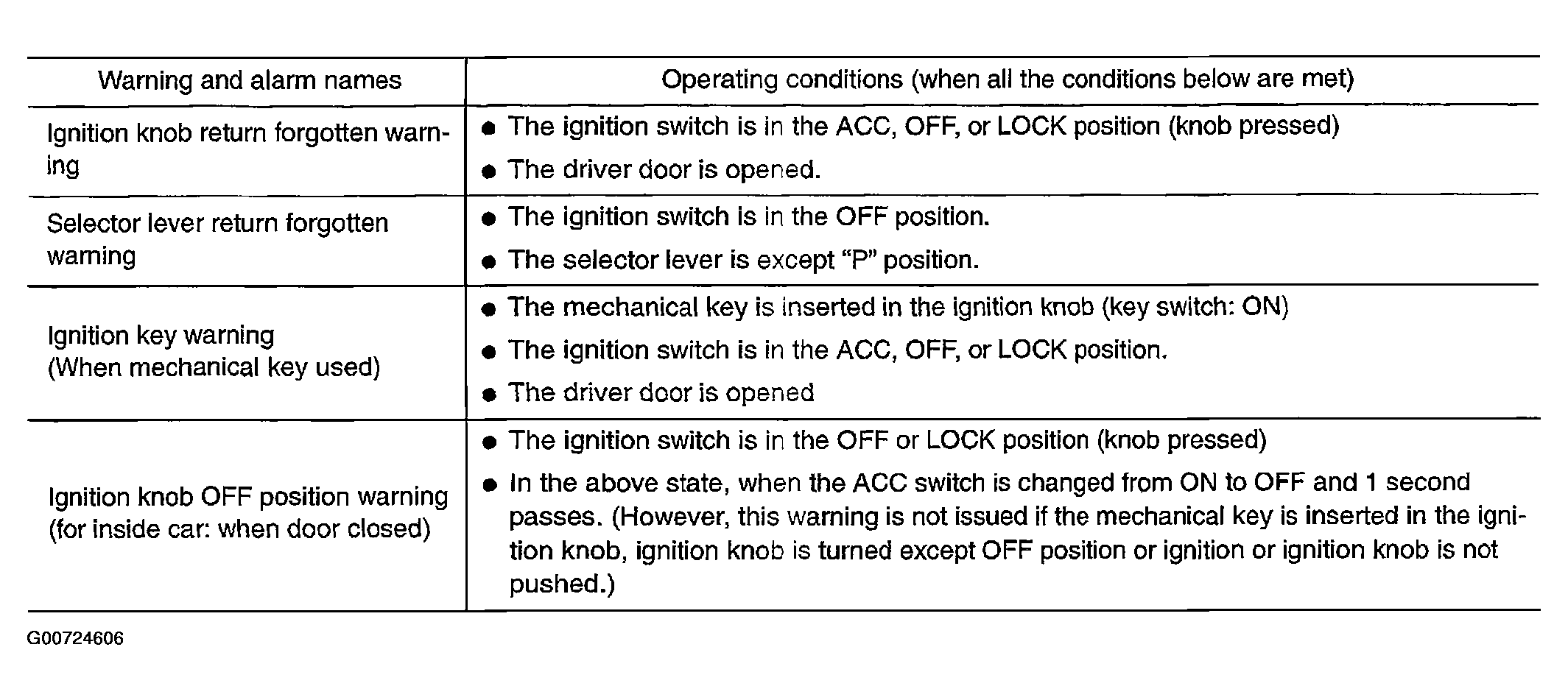

Fig 1: Operation Condition Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

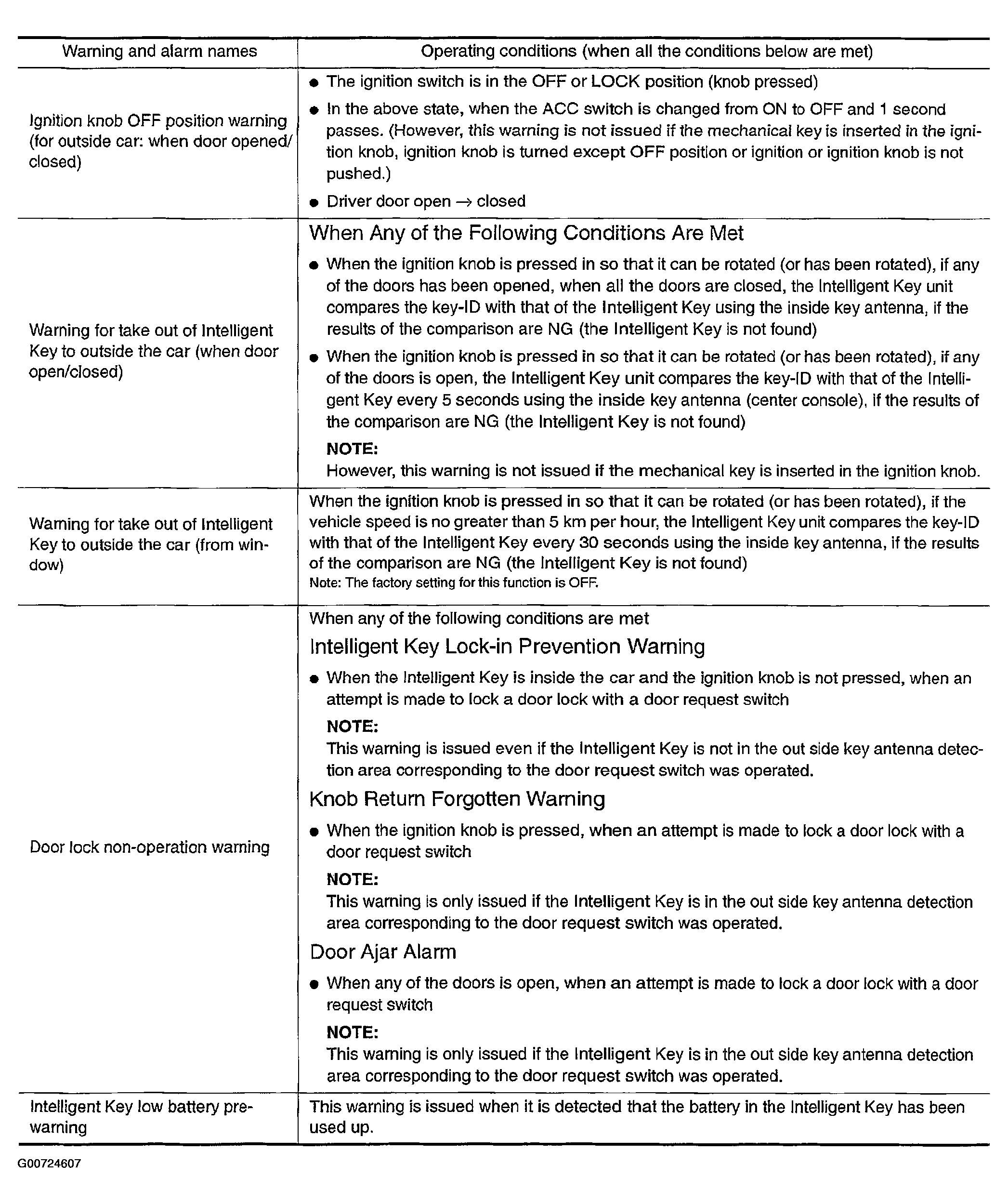

Fig 2: Operation Condition Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
