BCM (Body Control Module)
›
System Description
›
Major Components And Control System
Major Components And Control System

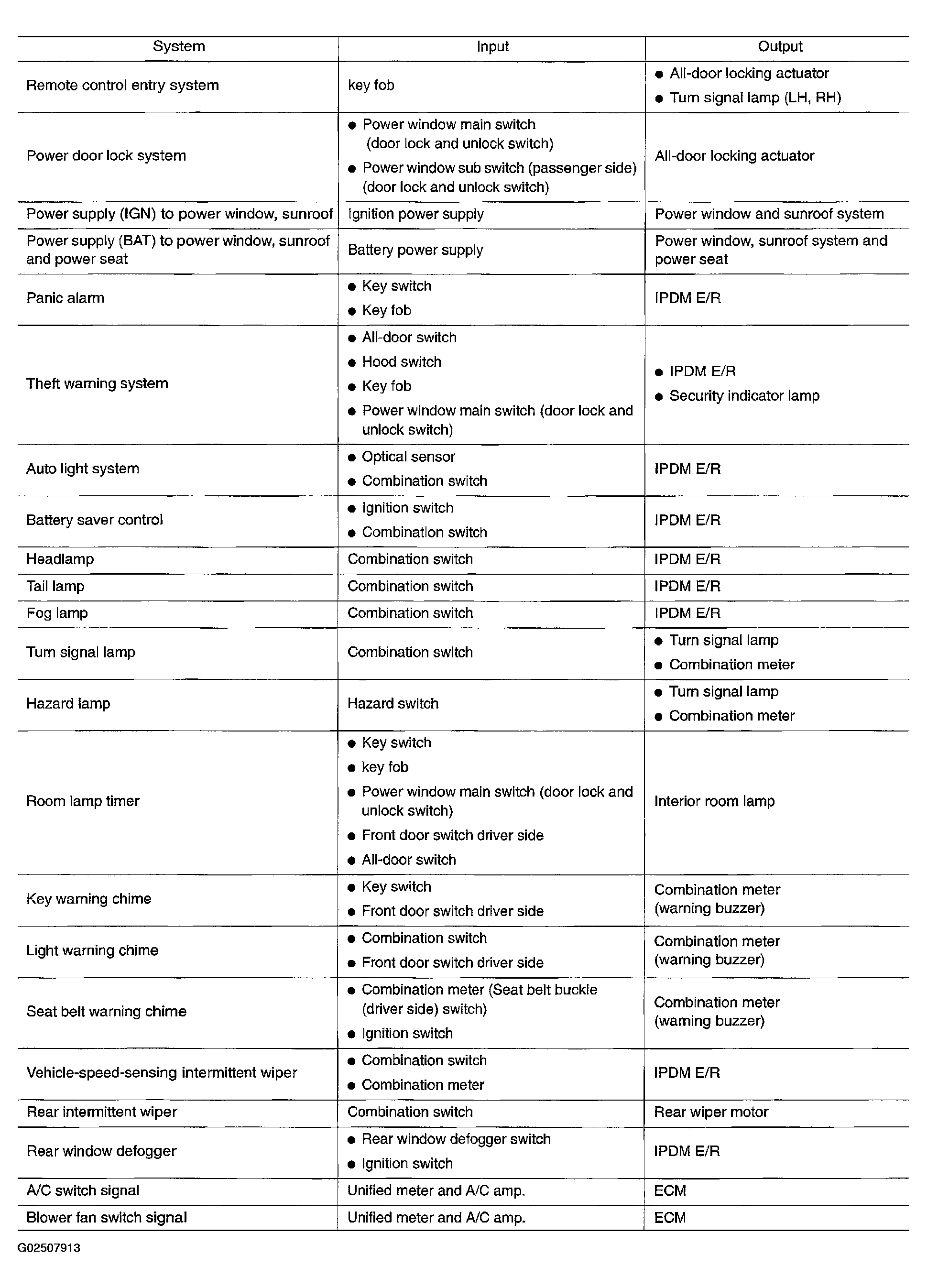

Fig 1: Major Components And Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
