Terminals and Reference Value for Back Door Closure Control Unit
Terminals and Reference Value for Back Door Closure Control Unit

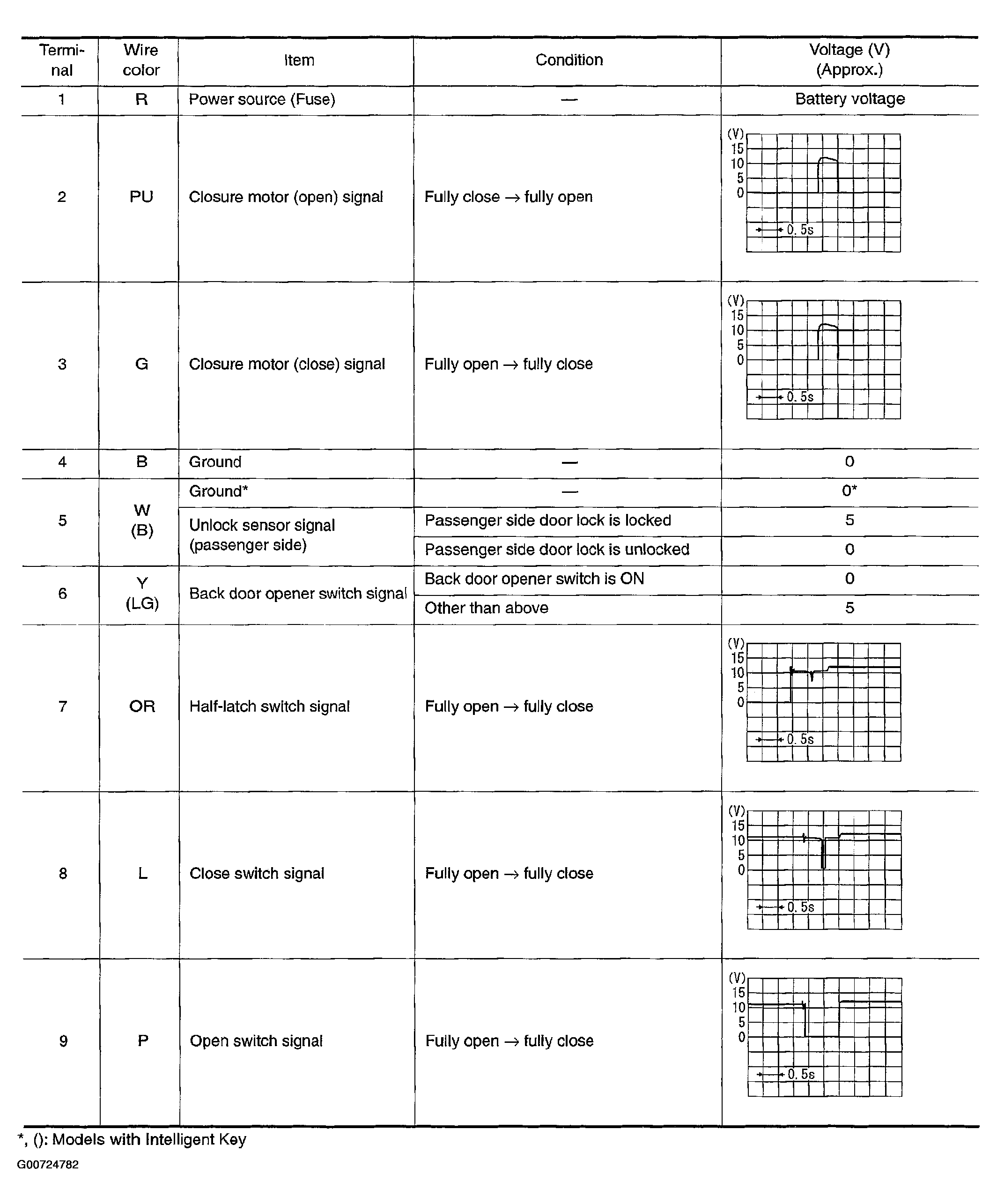

Fig 1: Back Door Closure Control Unit Terminal Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
