Intelligent Key System
›
Trouble Diagnosis Symptom Chart
›
Remote Control Entry Function Malfunction
Remote Control Entry Function Malfunction

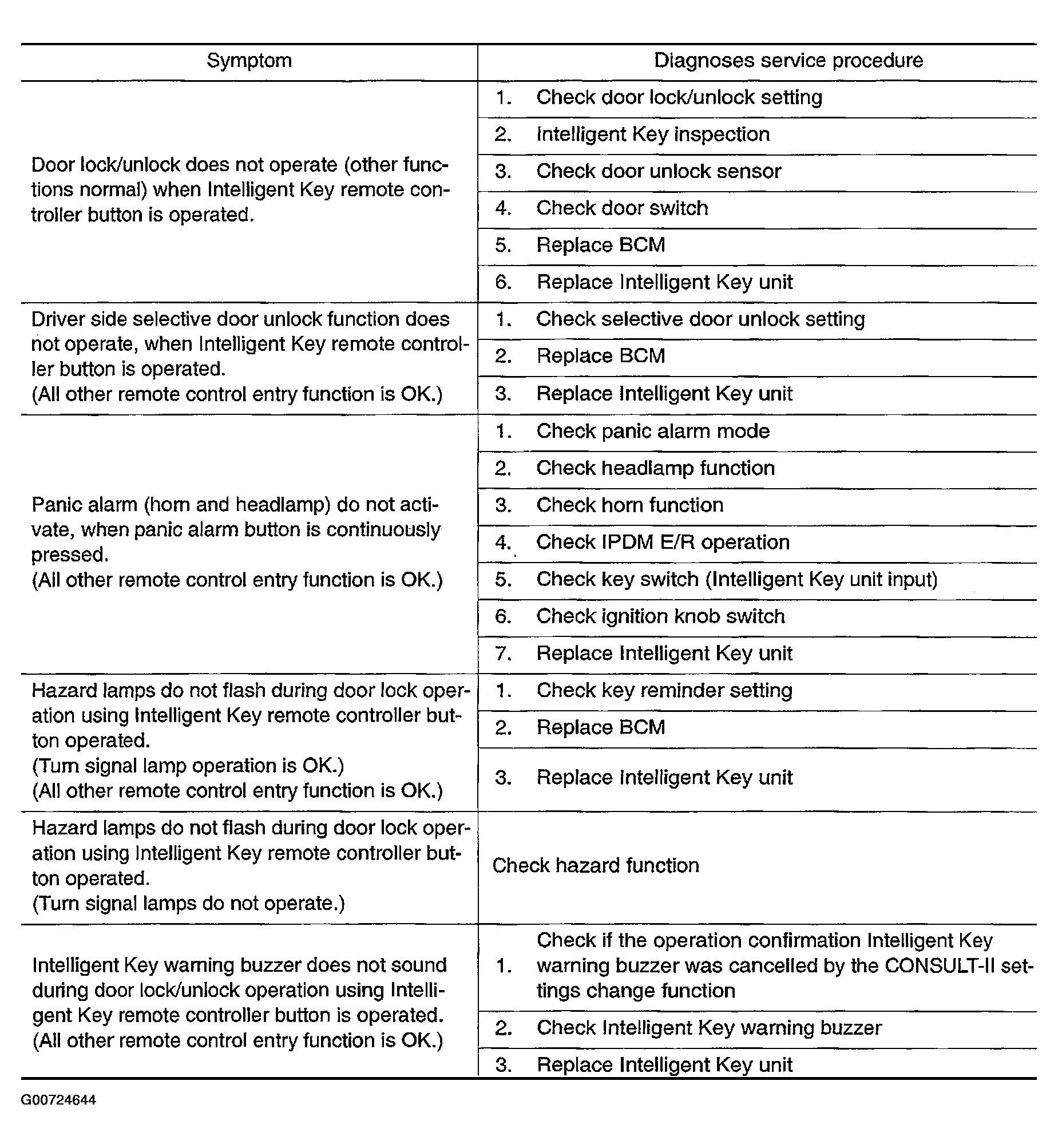

Fig 1: Trouble Diagnosis Symptom Chart - Remote Control Entry Function Malfunction
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
